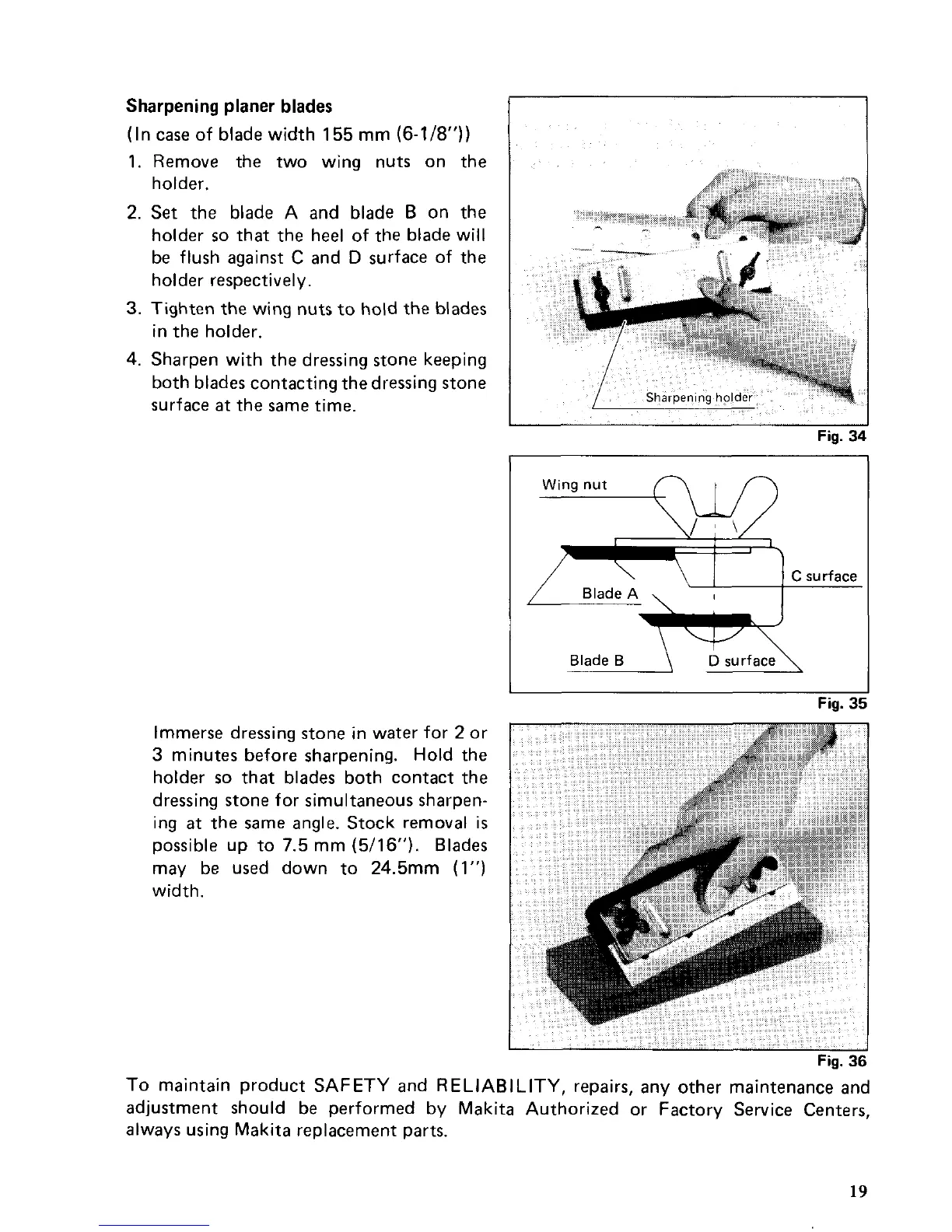

Sharpening planer blades
(In case of blade width 155 mm (6-1/8”))
1. Remove the two wing nuts on the
holder.
2.
Set the blade A and blade B on the
holder
so
that the heel of the blade will
be flush against
C
and
D
surface of the
holder respectively.
3.
Tighten the wing nuts to hold the blades
in the holder.
4.
Sharpen with the dressing stone keeping
both blades contacting the dressing stone
surface
at
the same time.
1
Fig.
31
Wing
nut
Blade
B
\
Dsurface\
I
Fig.
3!
Immerse dressing stone in water for
2
or
3
minutes before sharpening. Hold the
holder
so
that blades both contact the
dressing stone for simultaneous sharpen-
ing
at
the same angle. Stock removal
is
possible up to
7.5
mm (5/16”). Blades
may be used down to 24.5mm (1”)
width.
Fig.
36
To
maintain product SAFETY and RELIABILITY, repairs, any other maintenance and
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
19
