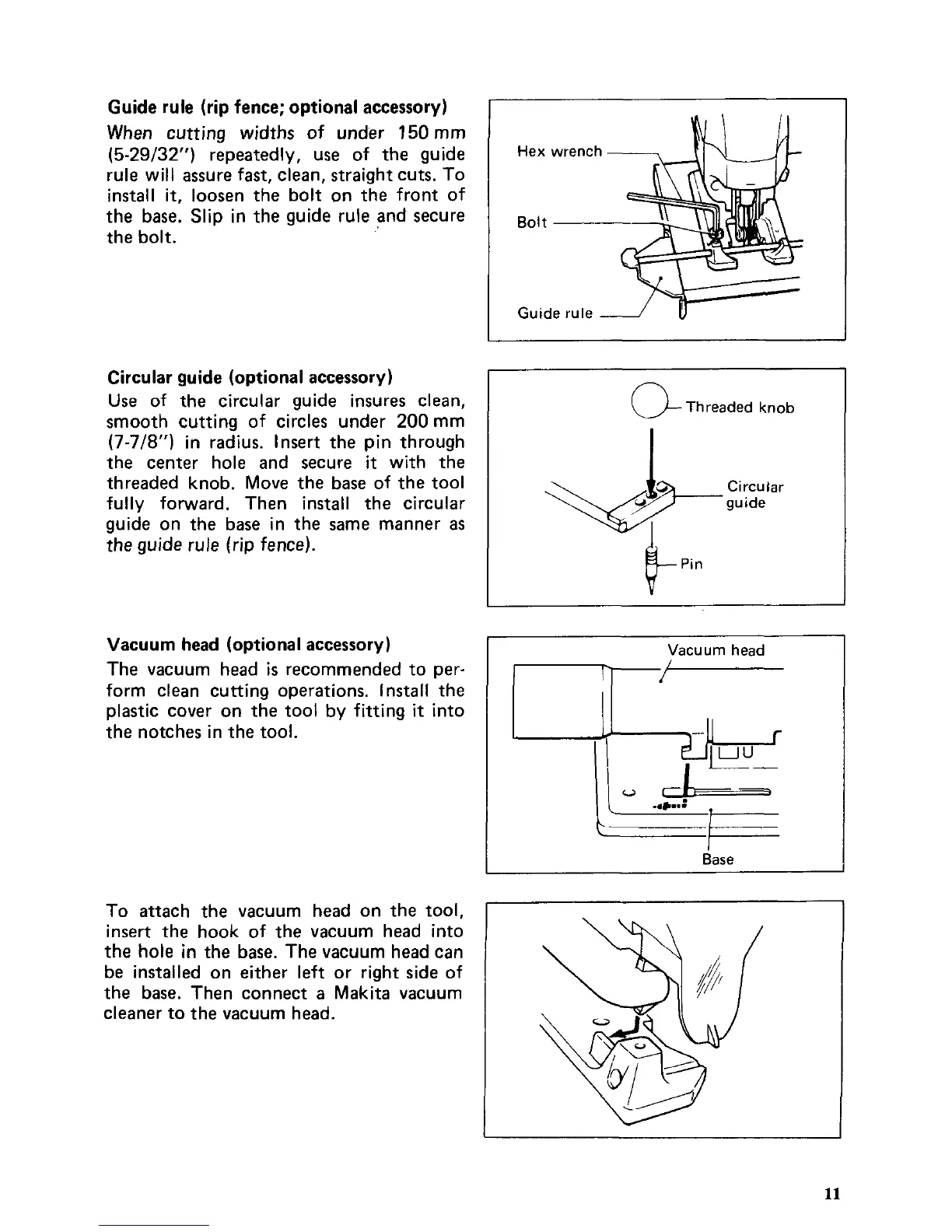

Guide rule (rip fence; optional accessory)
When
cutting widths of under
150
mm
(5-29/32")
repeatedly, use of the guide
rule will assure fast, clean, straight cuts.
To
install
it,
loosen the bolt on the front
of
the base. Slip
in
the guide rule and secure
the bolt.
Circular guic, (optional accessory
Use
of
the circular guide insures clean,
smooth cutting
of
circles under
200
mm
(7-7/8")
in radius. Insert the pin through
the center hole and secure
it
with the
threaded knob. Move the base of the tool
fully forward. Then install the circular
guide on the base in the same manner
as
the guide rule (rip fence).
Vacuum head (optional accessory)
The vacuum head
is
recommended to per-
form clean cutting operations. Install the
plastic cover on the tool by fitting
it
into
the notches in the tool.
To attach the vacuum head on the tool,
insert the hook of the vacuum head into
the hole in the base. The vacuum head can
be installed on either left or right side
of
the base. Then connect
a
Makita vacuum
cleaner to the vacuum head.
Hex wrench
Bolt
Guide rule
Y
0
Threaded
knob
&Circular
guide
Vacuum head
