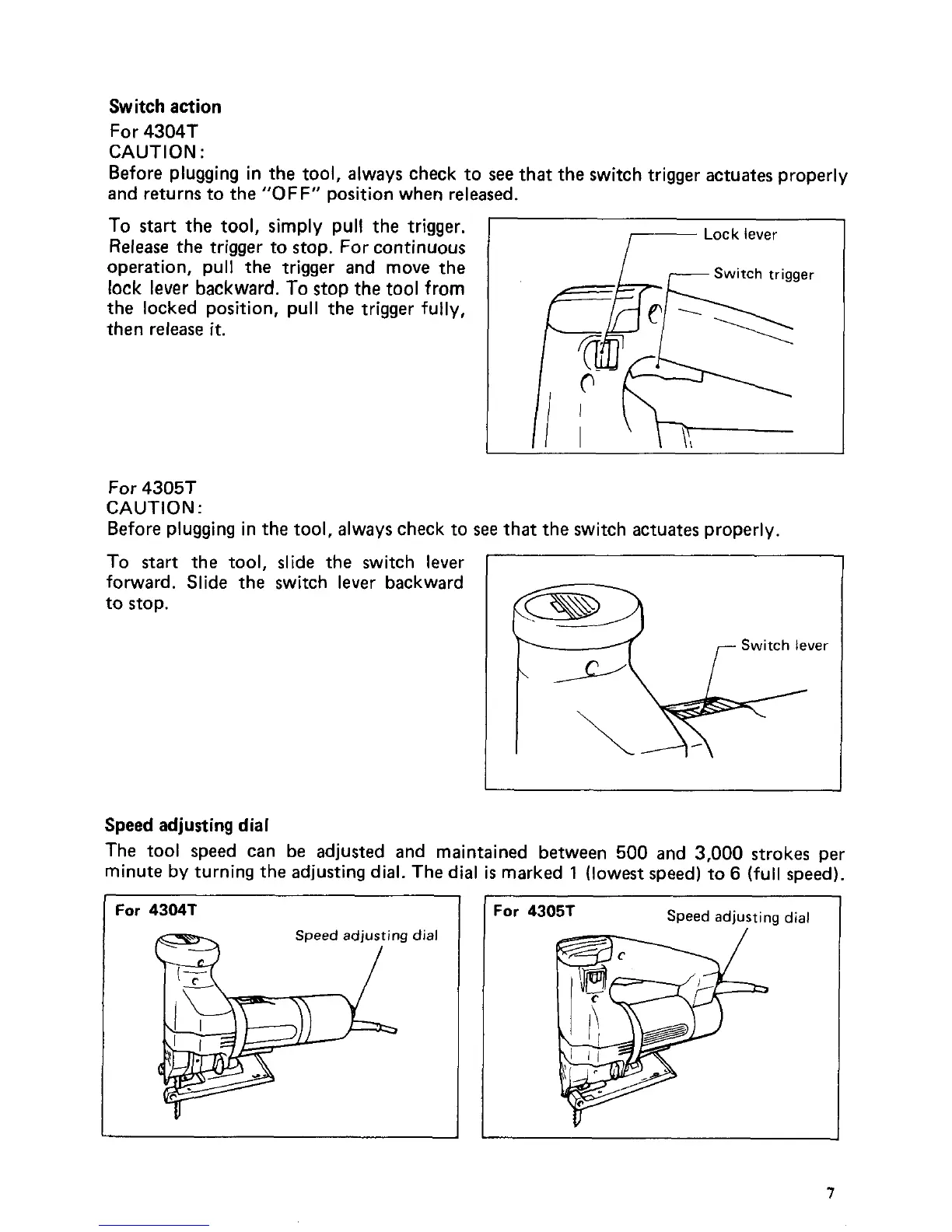

Switch
action
For 4304T
CAUTION
:
Before plugging in the tool, always check to
see
that the switch trigger actuates properly
and returns to the
"OFF"
position when released.
operation, pull the trigger and move the
lock lever backward.
To
stop the
tool
from
the locked position, pull the trigger fully,
then release
it.
I
Lock
lever
To
start the tool, simply pull the trigger.
Release
the trigger to stop. For continuous
Switch trigger
For 4305T
CAUTION:
Before plugging in the tool, always check to
see
that the switch actuates properly.
To start the tool, slide the switch lever
forward. Slide the switch lever backward
to stop.
Speed adjusting dial
The tool speed can be adjusted and maintained between
500
and 3,000 strokes per
minute by turning the adjusting dial. The dial
is
marked
1
(lowest speed) to
6
(full speed).
For
4304T
Speed adjusting dial
I
Speed
adjusting
dial
For
4305T
