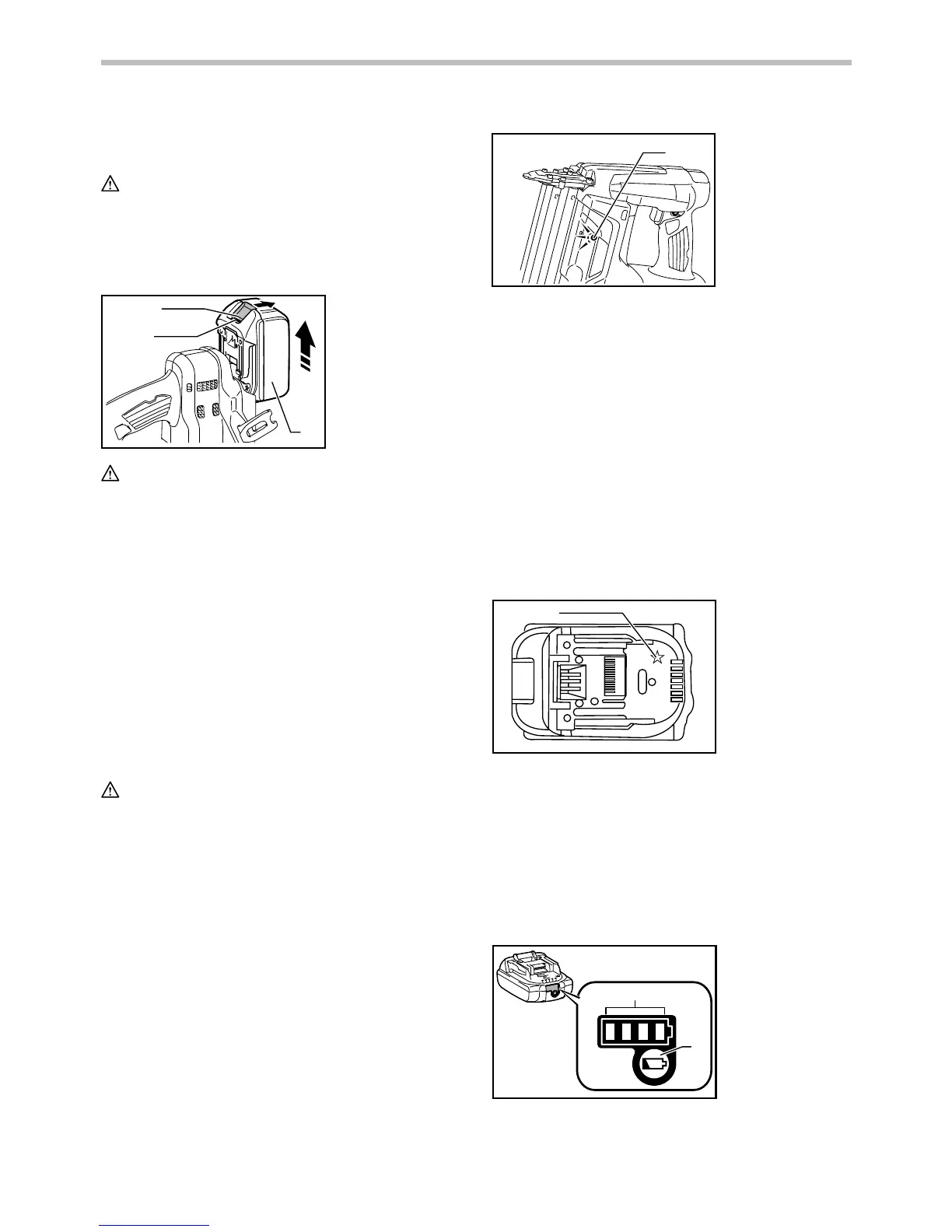

6
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
1
2
3
014581
CAUTION:
• Always switch off the tool before installing or
removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly
when installing or removing battery cartridge.
Failure to hold the tool and the battery cartridge
firmly may cause them to slip off your hands and
result in damage to the tool and battery cartridge
and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may
accidentally fall out of the tool, causing injury to
you or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Tool / battery protection system
The tool is equipped with a tool/battery protection
system. This system automatically cuts off power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery are placed under one of the following
conditions. In some conditions, the indicators light up.
1
014584
Overheat protection for tool
When the tool is overheated, the tool stops
automatically and the indicator blinks about 60 seconds.
In this situation, let the tool cool before turning the tool
on again.
Overheat protection for battery
When the battery is overheated, the tool stops
automatically and the battery indicator lights up about
60 seconds. The tool does not start even if pulling the
switch trigger. In this situation, let the battery cool before
turning the tool on again.
NOTE:
The battery overheat protection works only with a
battery cartridge with a star marking.
1
012128
Overdischarge protection
When the remaining battery capacity gets low, the
indicator blinks. By further use, the tool stops and the
indicator lights up about 60 seconds. In this situation,
charge the battery cartridge.
Indicating the remaining battery capacity
(Only for battery cartridges with "B" at the end of the
model number.)
1
2
015659
1. Indicator lamps
2. Check button
1. Star marking
1. Battery indicator
1. Red indicator
2. Button
3. Battery cartridge
