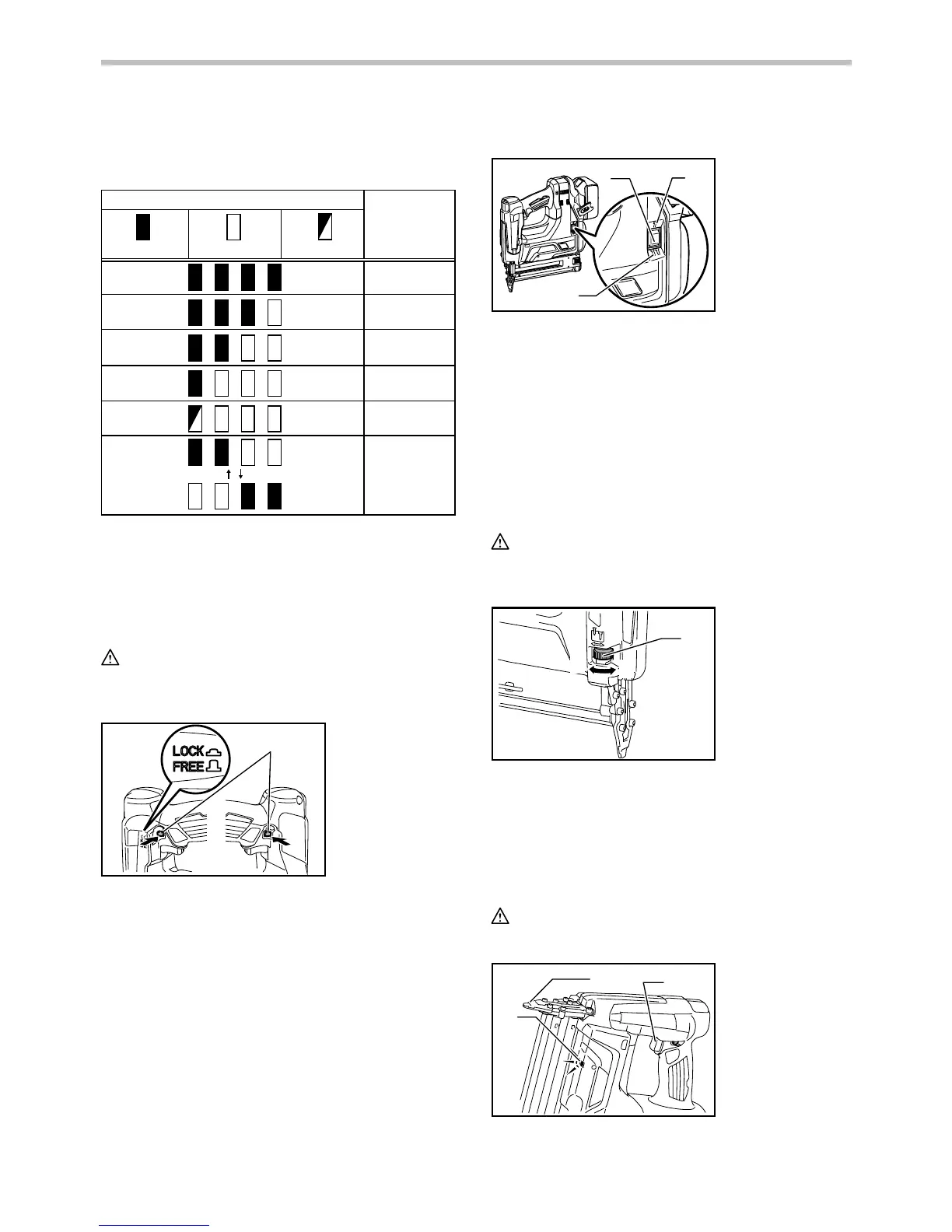

Press the check button on the battery cartridge to
indicate the remaining battery capacity. The indicator
lamps light up for few seconds.
Off
BlinkingLighted
Indicator lamps
Charge the
battery.
0% to 25%
25% to 50%
50% to 75%
75% to 100%
Remaining
capacity
The battery
may have
malfunctioned.
015658
NOTE:
• Depending on the conditions of use and the
ambient temperature, the indication may differ
slightly from the actual capacity.
Using the trigger lock
CAUTION:
• When not in use or after operating the tool, always
lock the trigger with the trigger lock.
A
1
2
3
014582
The tool has trigger lock to avoid accidents by an
unintentional start. The trigger lock makes the trigger
unmovable and let the tool cause no firing.
To lock the trigger, set the lock button in the "LOCK"
position.
Before nailing, set the lock button in the "FREE" position.
When not in use, always set it in the "LOCK" position
and remove the battery cartridge from the tool.
Nailing mode selection
12
3
014618
The tool has two different nailing modes. Select the
desired nailing by the mode selecting button. For more
detail, see the section "OPERATION".
Intermittent nailing (sequential mode)
This mode suits for driving a nail carefully and accurately.
Continuous/ intermittent nailing (continuous mode)
When the tool is set to this mode, you can choose either
continuous or intermittent nailing by sequences of the
trigger operation.
Adjusting the nailing depth
WARNING:
•
Always make sure that your fingers are not placed on the
trigger, and the battery cartridge and nails are removed.
A
B
1
A
B
014601
To get shallower depth, turn the adjuster to A direction
as shown in the figure. To get deeper depth, turn the
adjuster to B direction.
Do not turn the adjuster too much, or the adjuster may
get stuck.
Lighting up the lamp
CAUTION:
•
Do not look in the light or see the source of light directly.
1
2
3
014600
1. Lamp
2. Trigger
3. Driver guide
(contact
element)
1. Adjuster
1. Mode selecting
button
2. Sequential
mode
3. Continuous
mode
1. Trigger lock
2. Press to Lock
position
3. Press to Free
position
