Makita DGA504 Technical Information

P 11/ 14

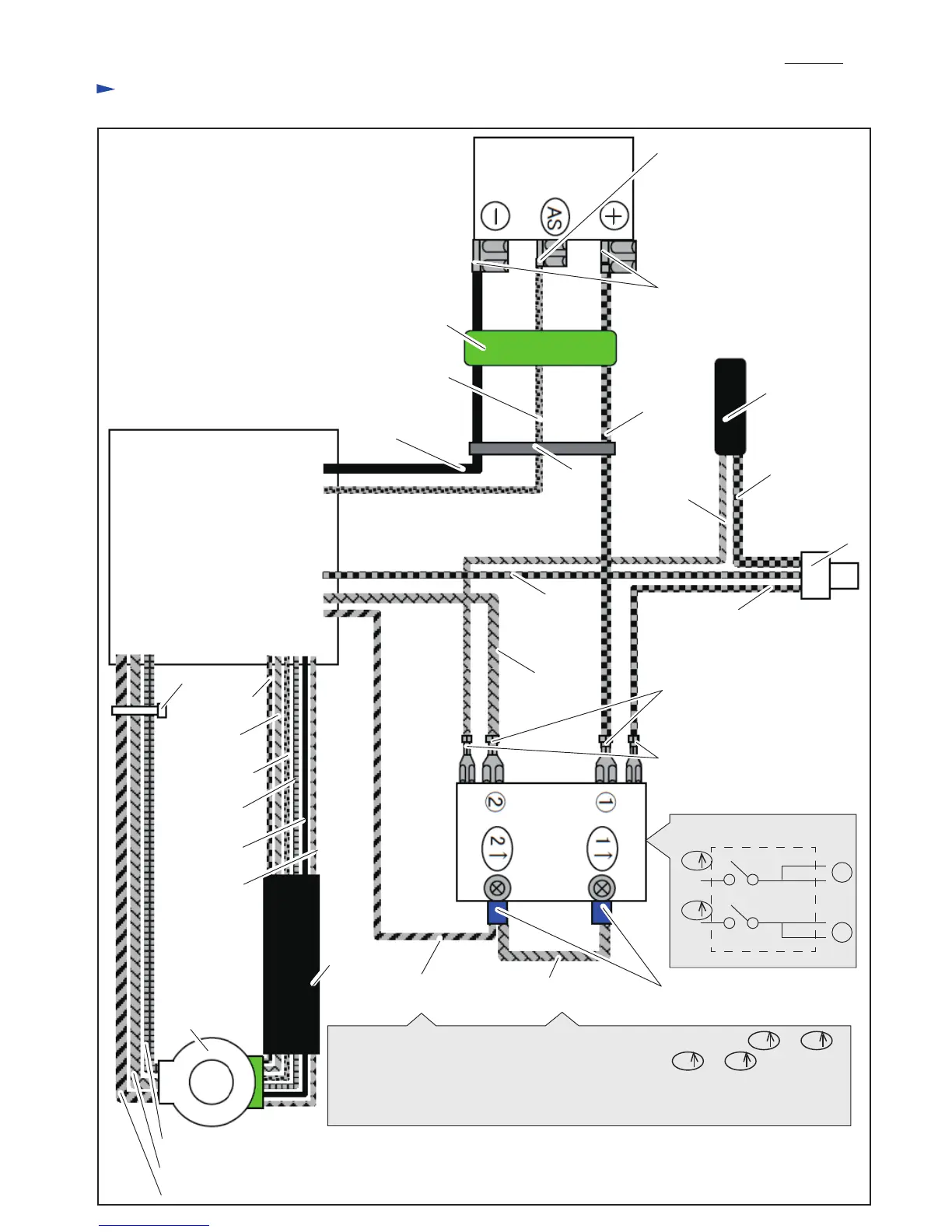

Circuit diagram
Fig. D-1
Lead wire
(red, #14*)
AWG*: American wire gauge
Insulated terminal
(for M3.5 Pan head screw)
Lead wire
(white, 14AWG*)
Lead wire
(orange, 22AWG*)
Polyolefin
tube
Flag terminal with lock
(#250, t=0.8mm)
Flag terminal with lock
(#187, t=0.8mm)
Battery terminal
Line filter (if used)
Resistor unit
Connector 2-SD
Lead wire
(red, 14AWG*)
Lead wire
(yellow, 22AWG*)
Lead wire
(black, 14AWG*)
Lead wire
(red, 18AWG*)
Lead wire
(red, 20AWG*)
Lead wire
(white,
20AWG*)
Lead wire
(red, 22AWG*)
Lead wire
(white,
14AWG*)
Tape
Controller
• The orange lead wire end from Controller can be connected to either or .
The one white lead wire end must be connected to either or together with
the orange lead wire end, and then the other white lead wire end must be connected
solely to the opposite terminal. Use Insulated terminals and M3.5 Pan head screws
as drawn above.
1 2
1 2
Plastic tie
Stator
Lead wire (orange, 14AWG*)
Lead wire (white, 14AWG*)
Lead wire (blue, 14AWG*)
Lead wire
(red, 28AWG*)
Lead wire
(white, 28AWG*)
Lead wire
(blue, 28AWG*)
Lead wire
(black, 28AWG*)
Lead wire
(green, 28AWG*)
Lead wire
(yellow, 28AWG*)
Straight terminal without lock
(#110, t=0.8mm)
Straight terminal with lock
(#187, t=0.8mm)
Circuit diagram of Switch
2
1
2
1

Makita DGA504 Specifications

General

Voltage	18V
Wheel Diameter	125 mm
No Load Speed	8500 RPM
Battery Type	Lithium-Ion
Spindle Thread	M14 x 2
Cable Length	N/A (Cordless)
Arbor Size	22.23 mm (7/8")
Length	362 mm (14-1/4")
