Repair
P 2/ 14
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[1] NECESSARY REPAIRING TOOLS
[2] LUBRICATION
Code No. Description Use for
1R045 Gear extractor (large) removing Rotor
1R027 Bearing setting pipe ø18-ø10.2 pressfitting Rotor
1R029 Bearing setting pipe ø23-ø15.2
pressfitting Spiral bevel gear 37
1R004 Retaining ring pliers ST-2 removing/ assembling Ring spring 11
1R034 Bearing setting plate ø12.2
1R258 V block removing Spiral bevel gear 37
1R291 Retaining ring S and R pliers removing Retaining ring R-32
Round bar for arbor ø12-50 removing Ball bearing 629LLB1R286
Round bar for arbor ø6-50 removing Spiral bevel gear 371R280
Bearing extractor (small) removing Ball bearing 607LLB/ 696ZZ1R269
Spring pin extractor M3 disassembling Shaft lock mechanism 1R268
Item No. Description Lubricant Amount
9g
a little
Portion to lubricate
O ring 26
Spiral bevel gear 10
7
5

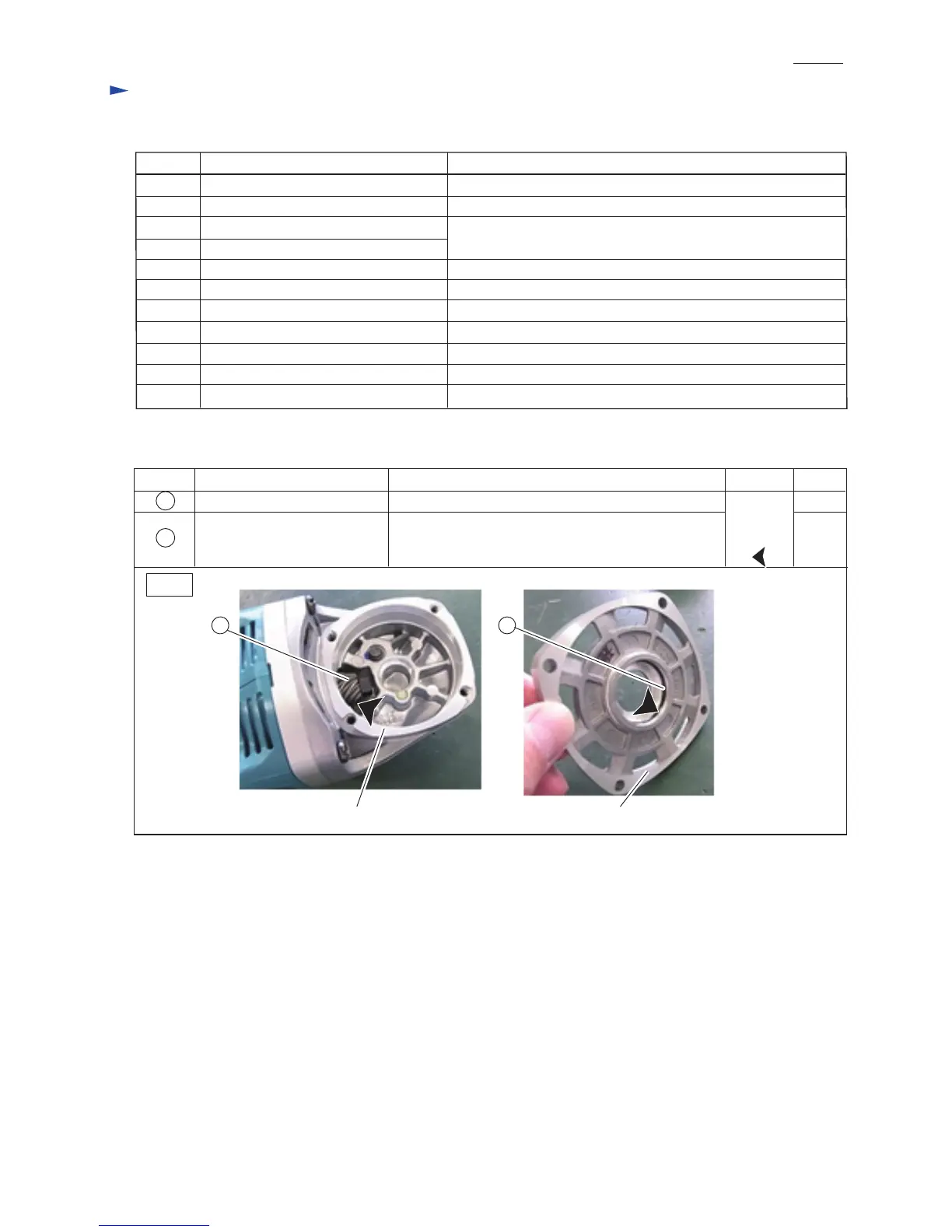

Apply the following grease to protect parts and product from unusual abrasion. (Fig. 1)
Gear teeth in the gear room of Gear housing
Inner periphery that appears from Gear housing cover
Fig. 1
Makita
grease
SG. No.0
5
Gear housing cover
7
Gear housing
