The throttle and throttle lock have slots 4 and
5 at their pivot points.
When assembling the throttle and throttle lock,
first press them onto the pivot axle by the slot.
For this, the slot must point downwards when
inserted.
The Bowden clip 6 goes in after the throttle.
The lever is then attached to the Bowden clip.
Guide the pivot axle 7 under the hook on the
Bowden clip 6.
Before installing the throttle, engage the
spring in the throttle. When installing the
throttle lock, engage the spring in the throttle
lock.
1
2
3
4
6
7
5
10
TANK

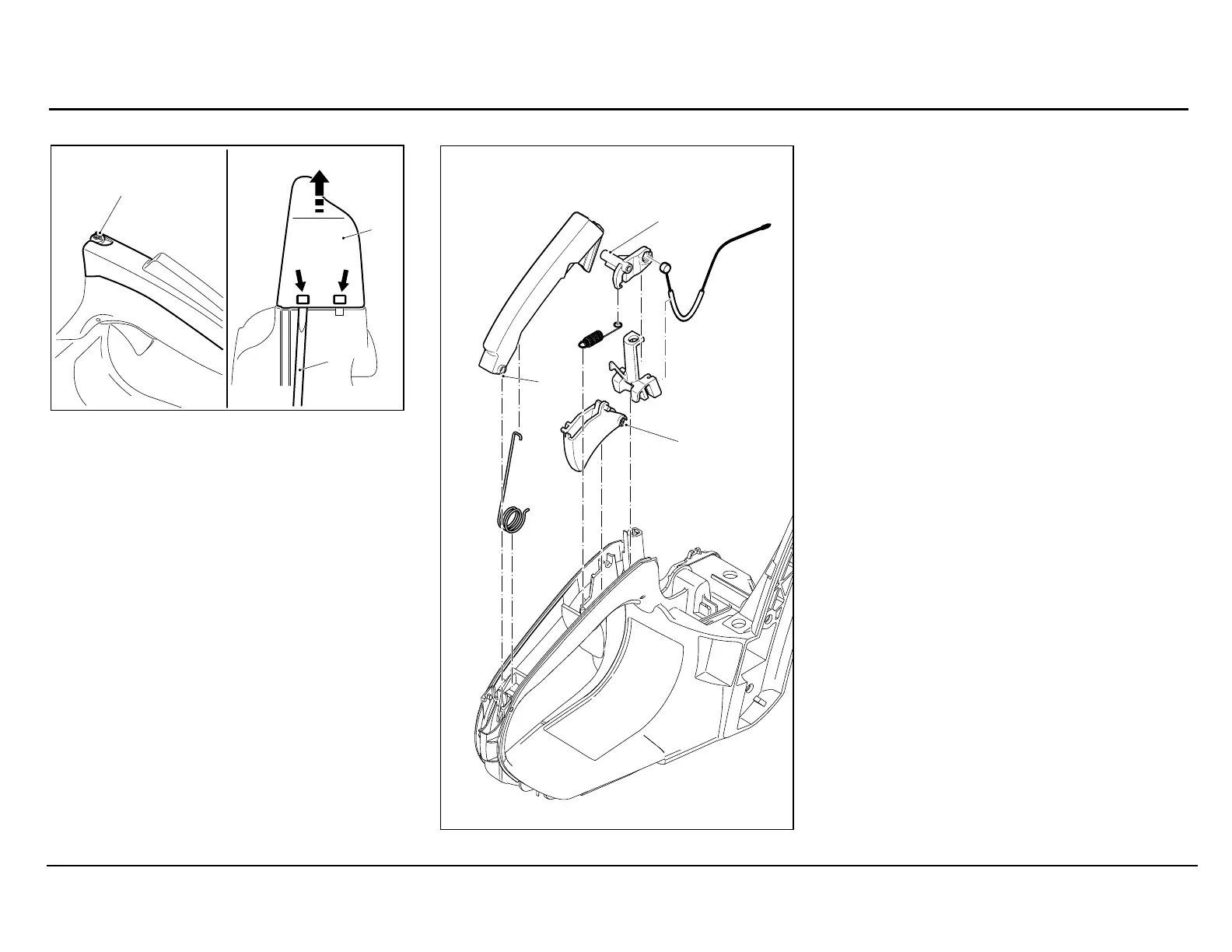

Grip mechanism
Unscrew screw 1.
Disengage the two snap closures on the
upper grip half 3 with the universal wrench 2
and pull off the top grip half towards the rear.
Keep the throttle lock pressed down during
this procedure.
