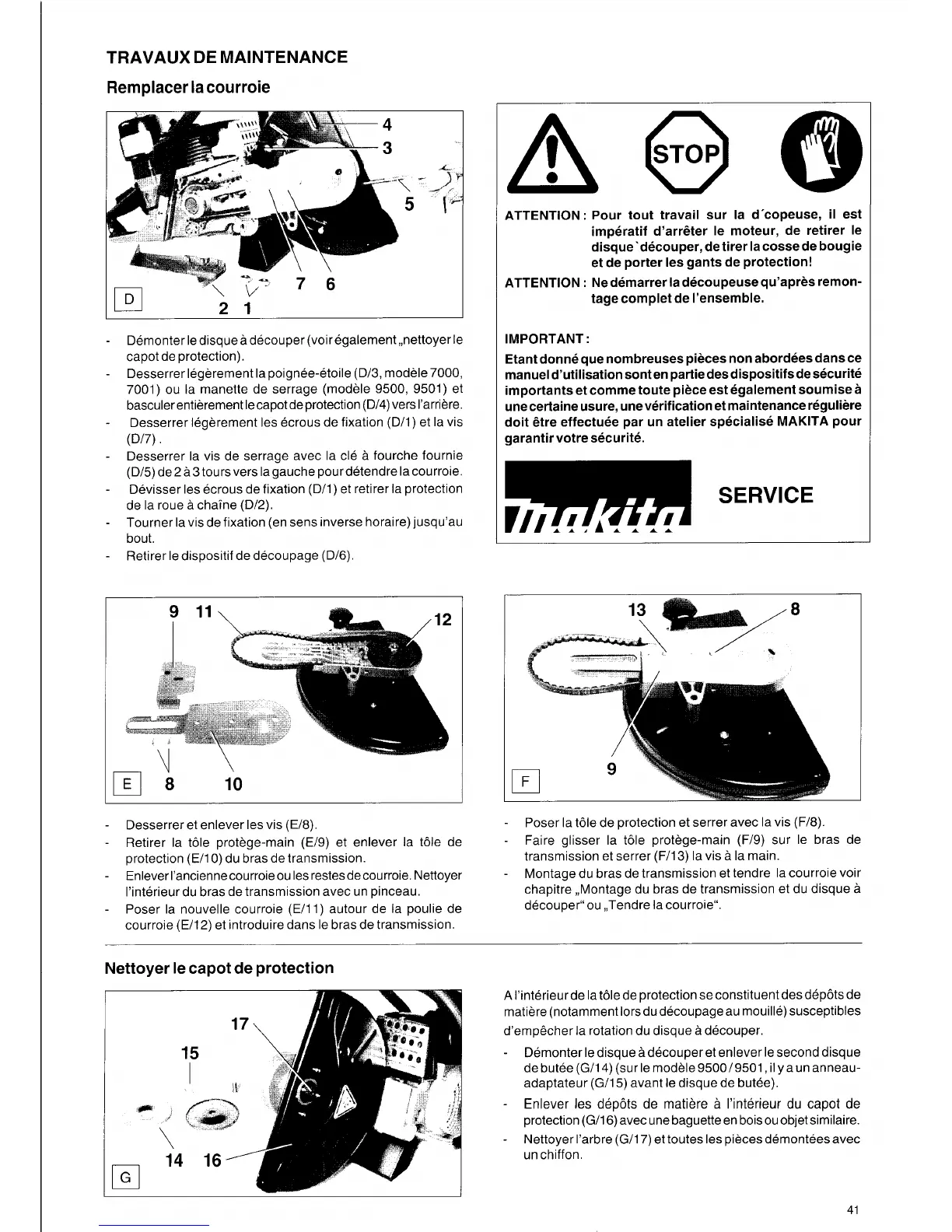

TRAVAUX DE MAINTENANCE
Remplacer la courroie
*- 7 c
ID 71
-
Demonter le disque a decouper (voir egalement ,,nettoyer le
capot de protection).
Desserrer legerement la poignee-etoile (D/3, modele 7000,
7001) ou la manette de serrage (modele 9500, 9501) et
basculer entierement lecapot de protection (D/4) vers I’arriere.
Desserrer legerement les ecrous de fixation (D/1) et la vis
(D/7) .
Desserrer la vis de serrage avec la cle a fourche fournie
(DE) de2a3toursvers lagauche pourdetendrelacourroie.
Devisser les ecrous de fixation (D/1) et retirer la protection
de la roue
a chaine (D/2).
Tourner la vis de fixation (en sens inverse horaire) jusqu’au
bout.
Retirer le dispositif de decoupage (D/6)
-
-
-
-
-
-
9 ll\
\
10
ATTENTION: Pour tout travail sur la d-copeuse, iI est
imperatif d’arrQter le moteur, de retirer le
disque’decouper, de tirer la cosse de bougie
et de porter les gants de protection!
ATTENTION
: Ne demarrer la decoupeuse qu’apres remon-
tage complet de I’ensemble.
IMPORTANT
:
Etant donne que nombreuses pieces non abordees dans ce
manuel d’utilisation sonten
partiedesdispositifsdesecurite
importants et comme toute piece est egalement soumise a
une certaine usure, uneverification et maintenance reguliere
doit Qtre effectuee par un atelier specialise MAKITA pour
garantir votre securite.
a
I ,
-
-
Desserrer et enlever les vis (E/8)
Retirer la t6le protege-main (E/9) et enlever la t61e de
protection (E/lO) du bras de transmission.
Enlever I’ancienne courroie
ou les restes de courroie. Nettoyer
I’interieur du bras de transmission avec un pinceau.
Poser la nouvelle courroie (E/ll) autour de la poulie de
courroie (E/12) et introduire dans le bras de transmission.
-
-
-
Poser la t61e de protection et serrer avec la vis (F/8).
-
Faire glisser la t61e protege-main (F/9) sur le bras de
transmission et serrer (F/13) la vis a la main.
Montage du bras de transmission et tendre la courroievoir
chapitre ,,Montage du bras de transmission et du disque
a
decouper“ ou ,,Tendre la courroie“.
-
Nettoyer le capot de protection
17
15
I
It
14 16’
El
A I’interieurde la t6le de protection se constituent desdep6ts de
matiere (notamment lors du decoupage au mouille) susceptibles
d’empgcher la rotation du disque
a decouper.
- Demonter le disque adecouperet enlever le second disque
de butee (G/14) (sur le modele 9500/9501, il ya un anneau-
adaptateur (G/15) avant le disque de butee).
Enlever les depbts de matiere
a I’interieur du capot de
protection (G/16) avec une baguette en bois ou objet similaire.
Nettoyer I’arbre (G/17) et toutes les pieces demonteesavec
un chiffon.
-
-
