Cutter blade
CAUTION: When handling a cutter blade,
always wear gloves and put the blade cover on
the blade.
CAUTION: The cutter blade must be well pol-
ished, and free of cracks or breakage. If the cutter
blade hits a stone during operation, stop the tool and
check the cutter blade immediately.
CAUTION: Always use the cutter blade
with the diameter described in the section for
specications.
6
1
4
2
3
5
7

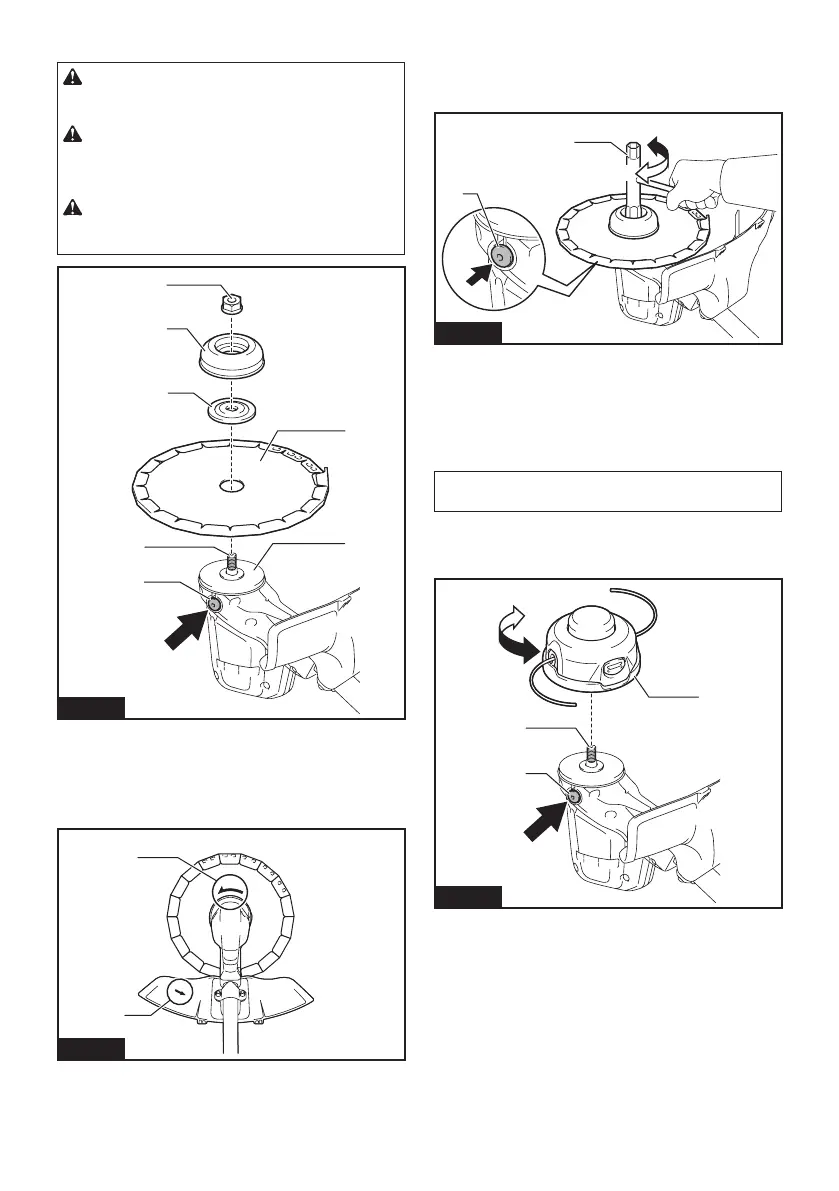

Fig.9
►1. Nut 2. Cup 3. Clamp washer 4. Cutter blade
5. Spindle 6. Guard 7. Spindle lock button
1. Mount the cutter blade onto the guard so that the
arrows on the cutter blade and protector are pointing in
the same direction.
1
1
Fig.10
►1. Arrow
2. Put the clamp washer and cup onto the cutter
blade.
3. While holding down the spindle lock button,
tighten the nut securely by the box wrench.
1
2
4
3
Fig.11
►1. Spindle lock button 2. Box wrench 3. Loosen
4. Tighten
To remove the cutting blade, loosen the nut while hold-
ing down the spindle lock button.
Nylon cutting head
NOTICE: Be sure to use genuine Makita nylon
cutting head.
While holding down the spindle lock button, place
the nylon cutting head onto the spindle and tighten it
securely by hand.
1
2
3
4
5
Fig.12
►1. Nylon cutting head 2. Spindle 3. Spindle lock
button 4. Loosen 5. Tighten
To remove the nylon cutting head, loosen the nylon
cutting head while holding down the spindle lock button.

Makita DUR194 Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Blade & nylon line
Handle type	D-loop handle
Product color	Black, Green
Uncertainty K	1.5 m/s²
Sound power level	88.6 dB
Vibration emission	2.5 m/s²
Sound pressure level	75.8 dB
Cutting diameter (max)	280 mm
Sound power level uncertainty	1.5 dB
Power source	Battery
Battery voltage	18 V

Weight and Dimensions

Depth	236 mm
Width	288 mm
Length	1630 mm
Weight	2200 g
