Makita EA3500S User Manual

16
1 Handle
2 Cover
3 Hood lock
4 Tubular handle
5 Hand guard (release for chain brake)
6 Mufer
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Fuel pump (Primer)

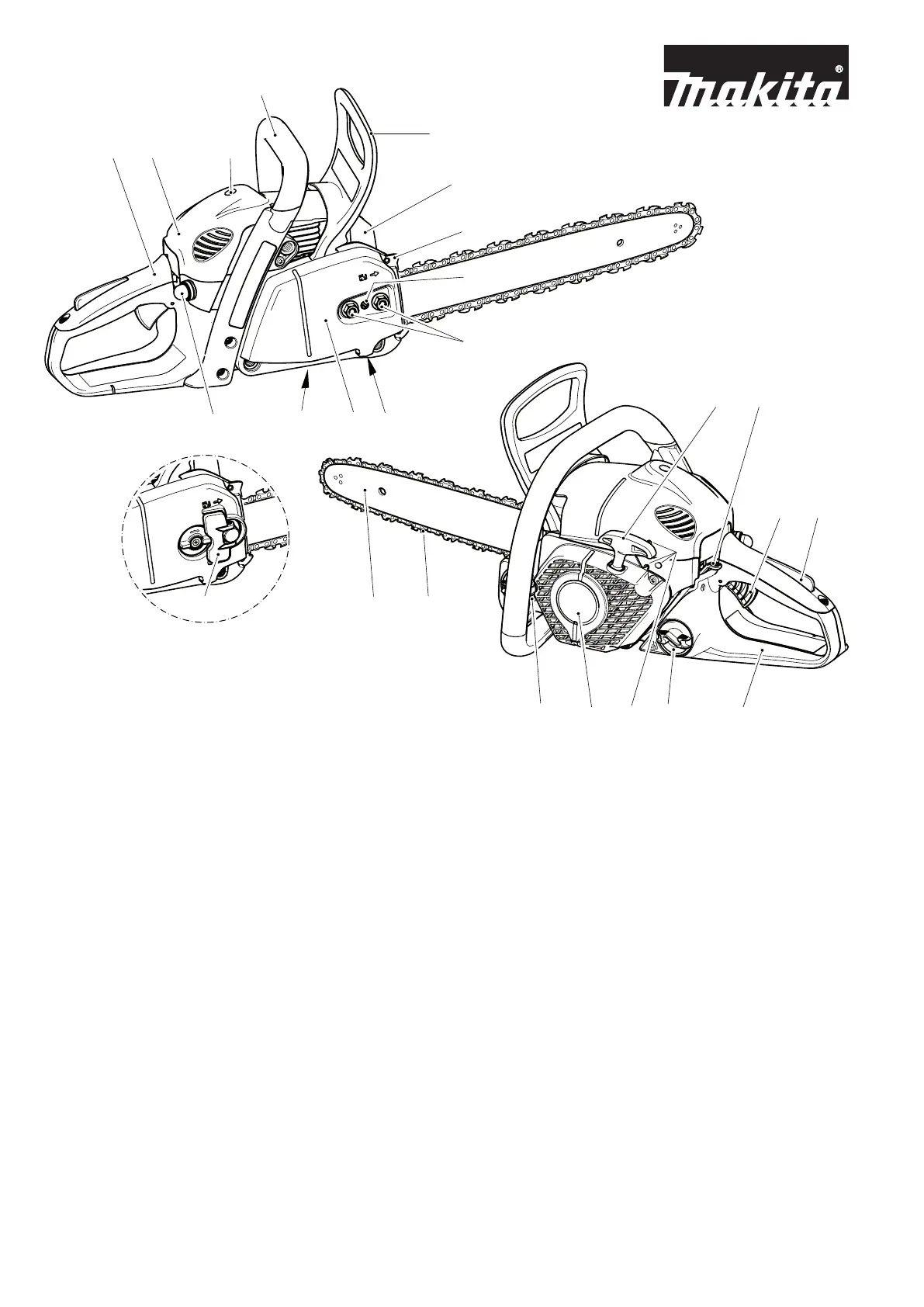

Denomination of components
14 Starter grip
15 Combination switch (Choke/ON/Stop)
16 Throttle lever
17 Safety locking button
18 Rear hand guard
19 Fuel tank cap
20 Adjusting screws for carburetor
21 Fan housing with starting assembly
22 Oil tank cap
23 Chain (Blade)
24 Guide bar
25 Sprocket guard quick tensioner (EA3501S)
2 31
4
6
5
7
9
13
1112 10
8
1514
16 17
18
19
21
22
20
2324
25

Makita EA3500S Specifications

General

Weight	4.6 kg
Chain Pitch	3/8 inch
Bar Length	35 cm
Fuel Tank Capacity	0.48 liters
Oil Tank Capacity	0.28 L
Power Rating	1.7 kW
Chain Gauge	0.050 inch
