Makita EA3500S User Manual

19
2
4
12
32
10
8
9
9 11

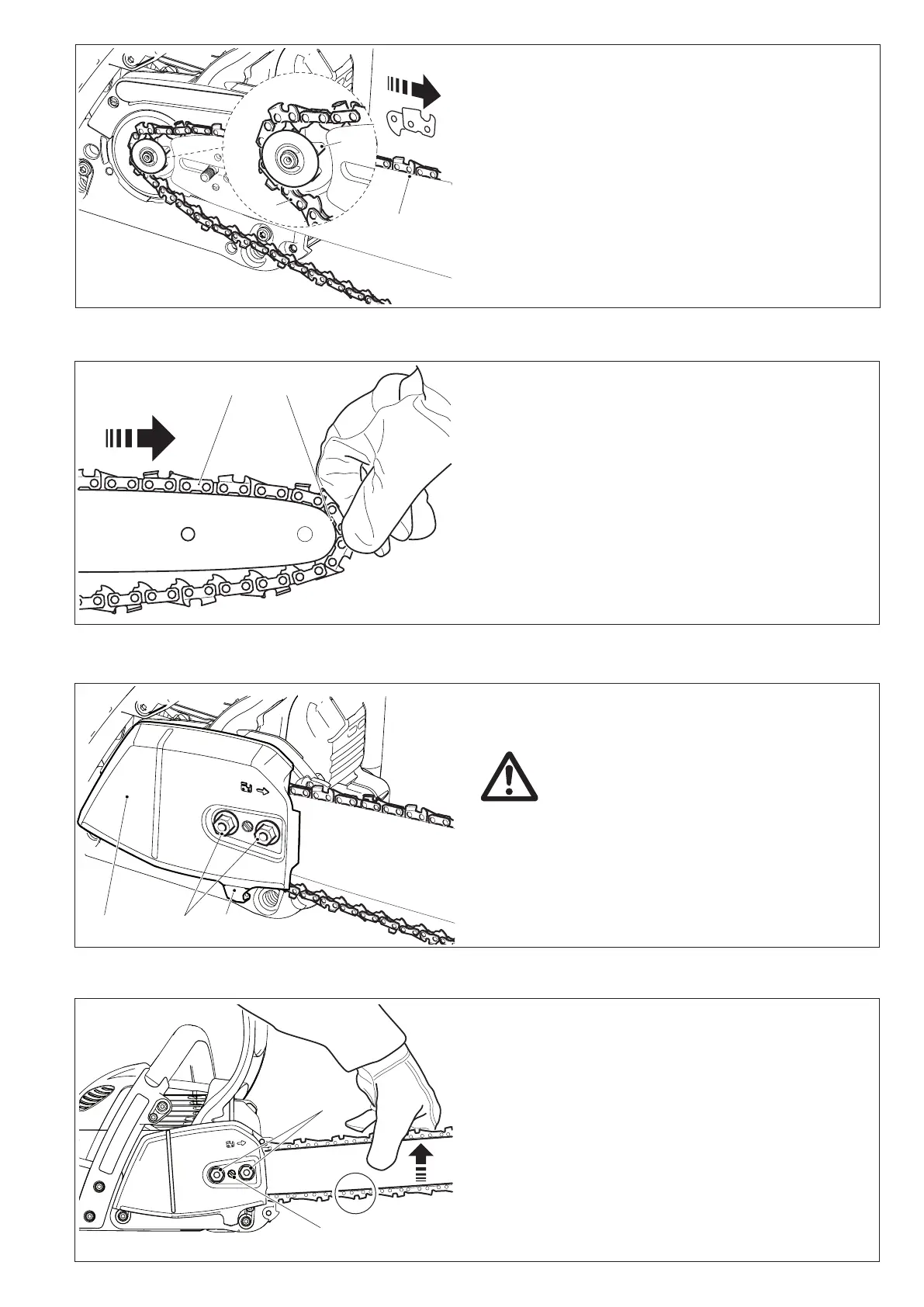

Replace the sprocket guard (3).
IMPORTANT:
Lift the saw chain over the chain catcher (12).
Tighten the nuts (2) only hand-tight to begin with.
Lift the chain (9) over the sprocket (8).
Guide the chain from above about halfway into the groove
(10) on the guide bar.
CAUTION:
Note that the cutting edges along the top of the chain must
point in the direction of the arrow!
Tightening the saw chain
Turn the chain tensioning screw (4) to the right (clockwise)
until the saw chain catches in the groove on the lower side of
the guide bar (see circle).
Slightly lift the end of the guide bar and turn the chain
adjusting screw (4) to the right (clockwise) until the chain
rests against the bottom side of the guide bar.
While still holding up the tip of the guide bar, tighten the
retaining nuts (2) with the universal wrench.
Pull the chain (9) around the sprocket nose (11) of the guide
bar in the direction of the arrow.

Makita EA3500S Specifications

General

Weight	4.6 kg
Chain Pitch	3/8 inch
Bar Length	35 cm
Fuel Tank Capacity	0.48 liters
Oil Tank Capacity	0.28 L
Power Rating	1.7 kW
Chain Gauge	0.050 inch
