Commissioning and operation
33
“Gearbox forwards / reverse” (lock) position Á
In this lever position, two different functions are possible.
1. Standard function:
The gearbox clutch is engaged to “Forwards” or “Reverse”; the power unit is idling.
2. “Increase engine speed” function:
The “Increase engine speed” function is set (function switch II–8). The engine speed
of the power unit is raised prior to engaging the clutch and after disengaging the clutch
it is lowered again to idling speed. Between the clutch engaging operations, individual
delays (waiting periods BEFORE and AFTER clutch engaging) can be set.
“Maximum engine speed” position Â
Position  shows the “maximum engine speed” for the “Forwards and Backwards
Range”. Between positions Á and Â, the engine speed can be set variably.
The gearbox clutch is engaged to “Forwards” or “Reverse”.

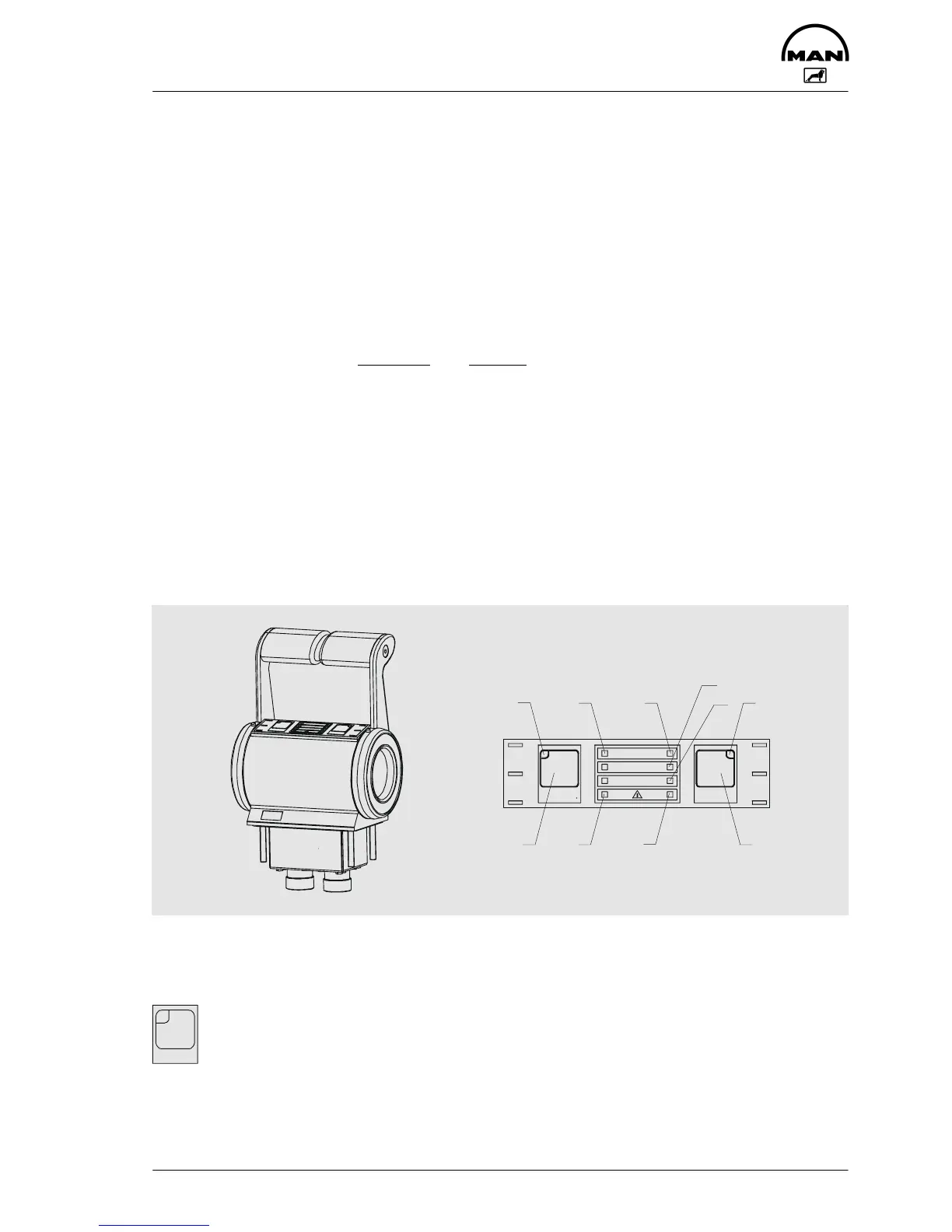

Operating panel – command master for twin-engine systems
COMMAND
COMMAND
SYN./TROL.
SYNCHRO
TROLLING
L5
L4
L8
T2
T1 L7
L6
L3L1 L2
Key “Command takeover” T1
The “Command takeover” key occurs only once on the command master. The
key is permanently illuminated weakly via LED L1 and indicates that the control
system is being supplied with voltage. The key serves to take over commands
onto the relevant control stand.
The key has two other additional functions.
COMMAND
