6. Emergency operation unit:
The emergency operation control system
– Em – is conceived as a simple engine
speed and gearbox control system which
enables safe continuation of a trip in the
event of a failure in the electrical control
lever system.
The operating unit for the emergency
operation control system is integrated pre-
ferably near the control lever in the bridge
control console. For safe ship operation,
the keys on the front must be easily ac-
cessible. When the ignition is on, emerg-
ency operation can be activated using the
corresponding function keys. A green LED
indicates standby mode.
Operation is by means of six keys on the
front, which light up when a requested
mode is reached and thus return the
corresponding operating mode or actual
mode.
Em.op.off
:engine stop + ignition off
–
+
N
Em.Op
On
MAN MARINE DIESEL
51.27720–7012
Typ Em–C

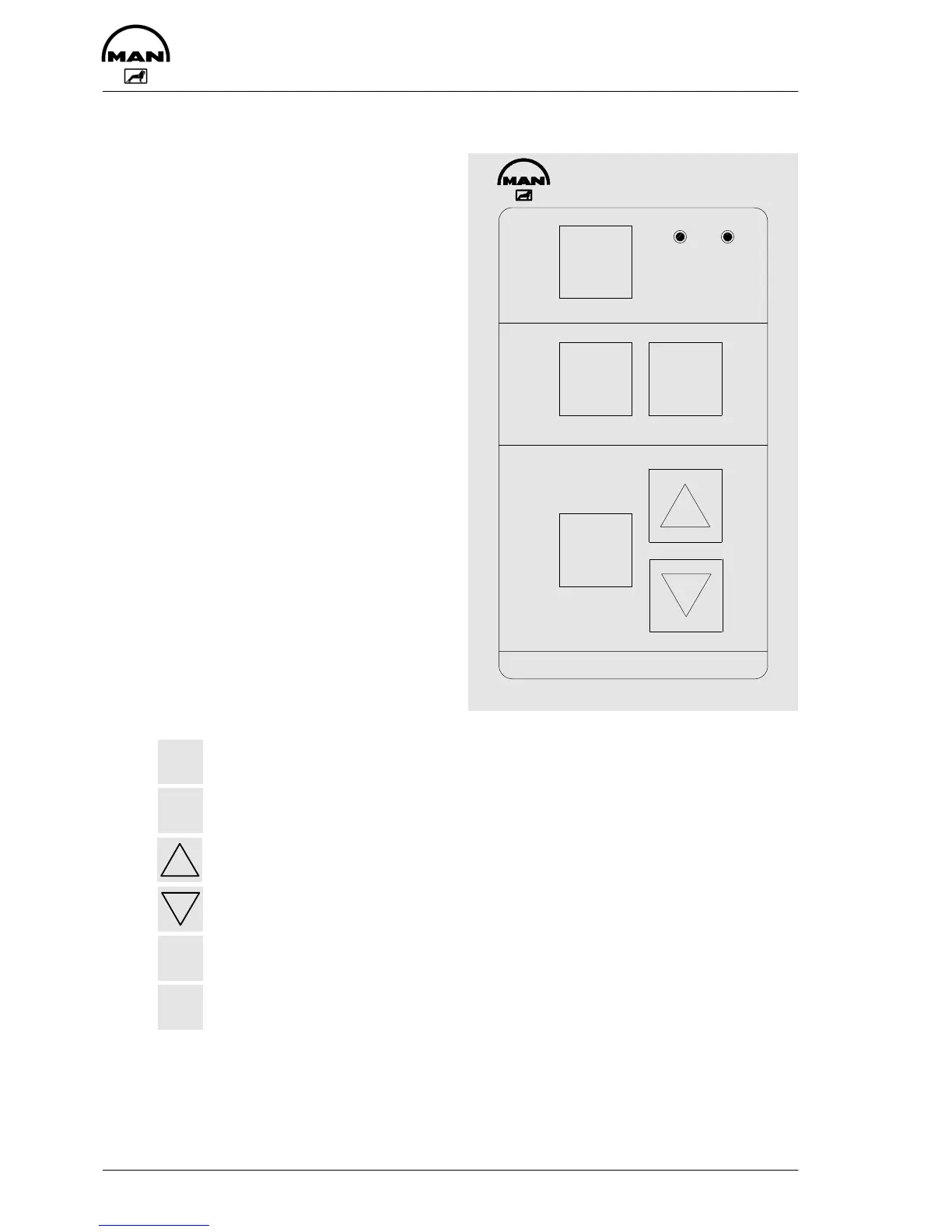

EMERGENCY OPERATION UNIT
System–
Power
Failure
On
ENGINE
GEARBOX
Key Activate emergency operation
Key Shift gearbox to forwards position
Key Shift gearbox to reverse position
Em. Op.
Key Shift gearbox to neutral position
N
On
Key Increase engine speed
+
Key Decrease engine speed
–
LED Power On indicates the presence of supply voltage when the ignition is on
LED System Failure indicates failure status by flashing or with continuous light
