Fuel oil filter duplex
Fuel oil filter duplex - Star-pleated element
25 microns (400/40) (sphere passing mesh)
HFO
12-18 cSt
MDO
2.5-14 cSt
MGO
1.5-6 cSt
litres/h litres/h litres/h
DN25
1000 1000 1000
DN32
1500 1500 1500
DN40
2800 2800 2800
DN50
3500 3500 3500
DN65
5800 5800 5800
Filter area (cm
2
)
DN25
652 652 652
DN32
1000 1000 1000
DN40
1844 1844 1844
DN50
2337 2337 2337
DN65
3885 3885 3885
Pressure drop (bar)
DN25
0.018 0.016 0.013
DN32
0.016 0.015 0.012
DN40
0.019 0.018 0.015
DN50
0.016 0.014 0.012
DN65
0.015 0.013 0.011
Table 1: Fuel oil filter duplex
To safeguard the injection system components on
the GenSets, is it recommended to install a fuel oil
filter duplex, as close as possible to each GenSet.
The fuel oil filter duplex is with star-pleated filter ele-
ments. The fuel oil filter duplex is supplied loose and
it is recommended to install it, as close as possible
to each GenSet, in the external fuel oil supply line.
GenSets with conventional fuel injection system or
common rail fuel system must have fuel oil filter
duplex with a fineness of max. 25 microns (sphere
passing mesh) installed as close as possible to
each GenSet.
The filter surface load of the 25 microns filters must
not exceed 1.5 l/cm² per hour !

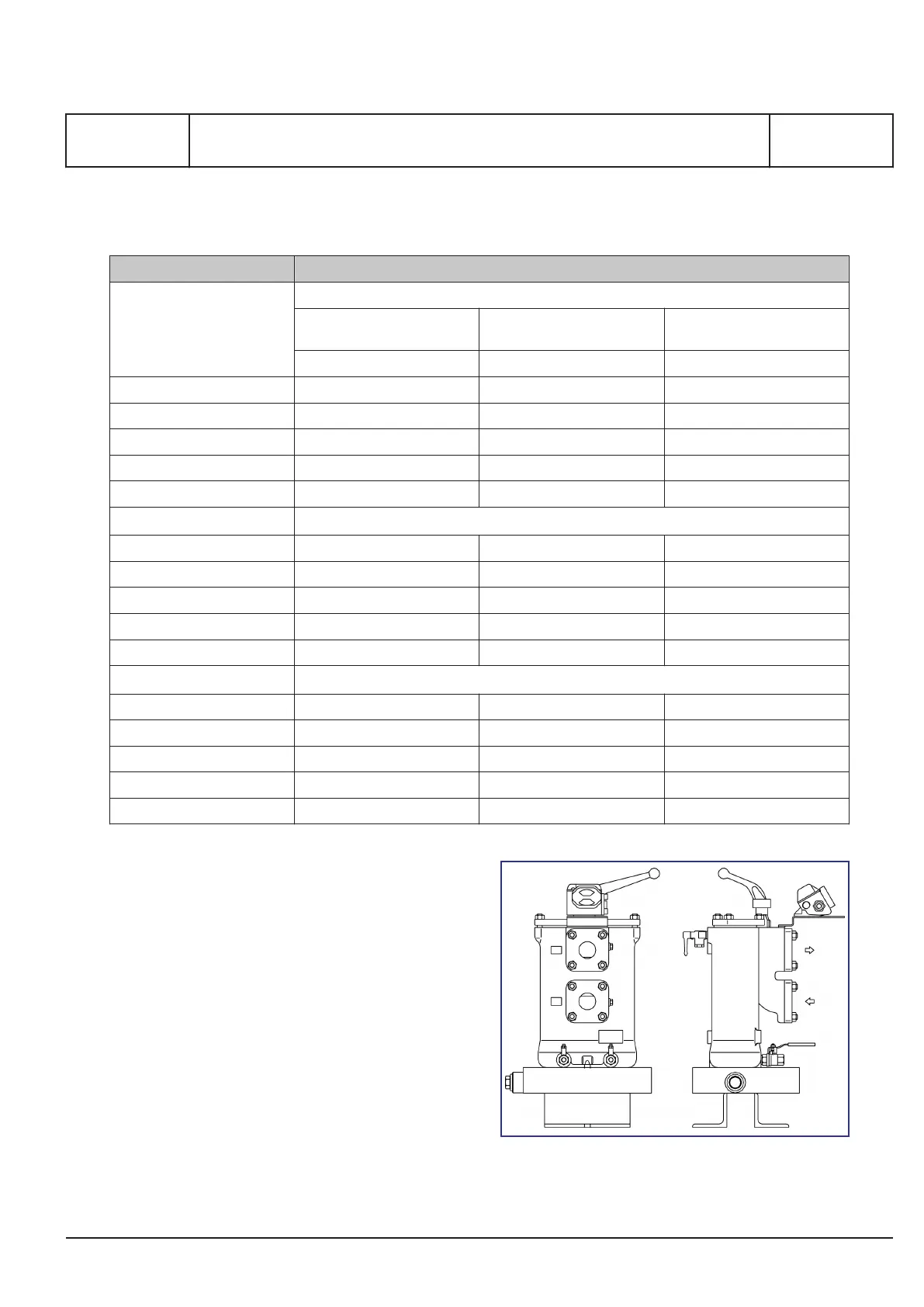

Figure 1: Fuel oil filter duplex.
MAN Diesel & Turbo
1679744-6.7
Page 1 (1)
Fuel oil filter duplex
E 11 08 1
L27/38S, L21/31S, L16/24S, V28/32S, L16/24, L21/31, L27/38
2015.11.27
