CD5515-2/YB5515-2 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
Optional Controls Operation
Under Deck Winch
Always keep hands and clothing clear of the fairlead rollers
and front opening while the winch is operating. Keep persons
away from the area. Injury can be caused if the wire rope
breaks or the hook becomes disconnected.
To Extend the Wire Rope
Push and hold the top of the switch (Figure 3-37). Keep
tension on the wire rope to prevent twisting of the wire rope
on the winch drum. For fast unwind, release the free spool
lever on the right side of the winch.
To Stop the Winch
Release the switch.
To Retract the Wire Rope
Push and hold the bottom of the switch (Figure 3-37).
w0031
Winch Out
Winch In

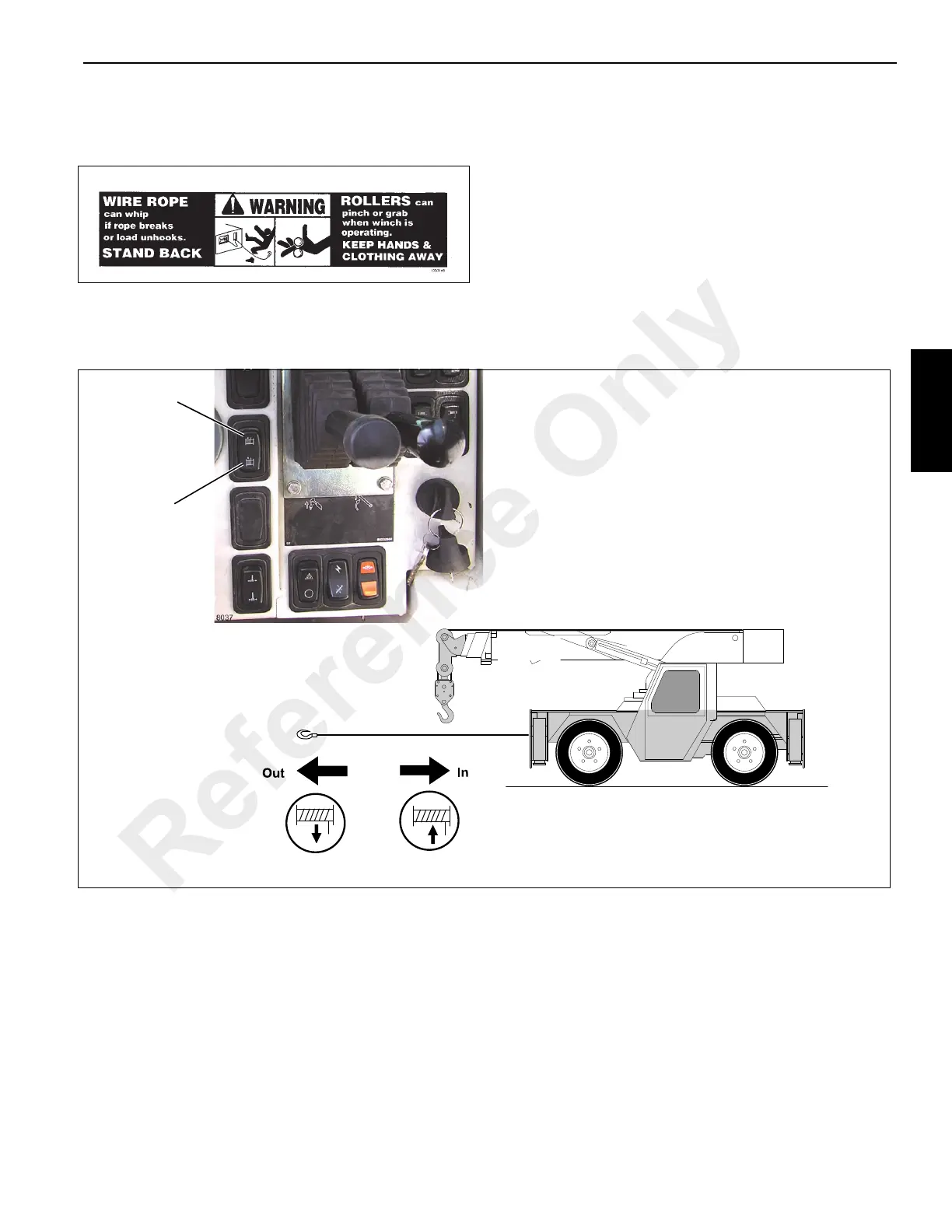

FIGURE 3-37
A0869
