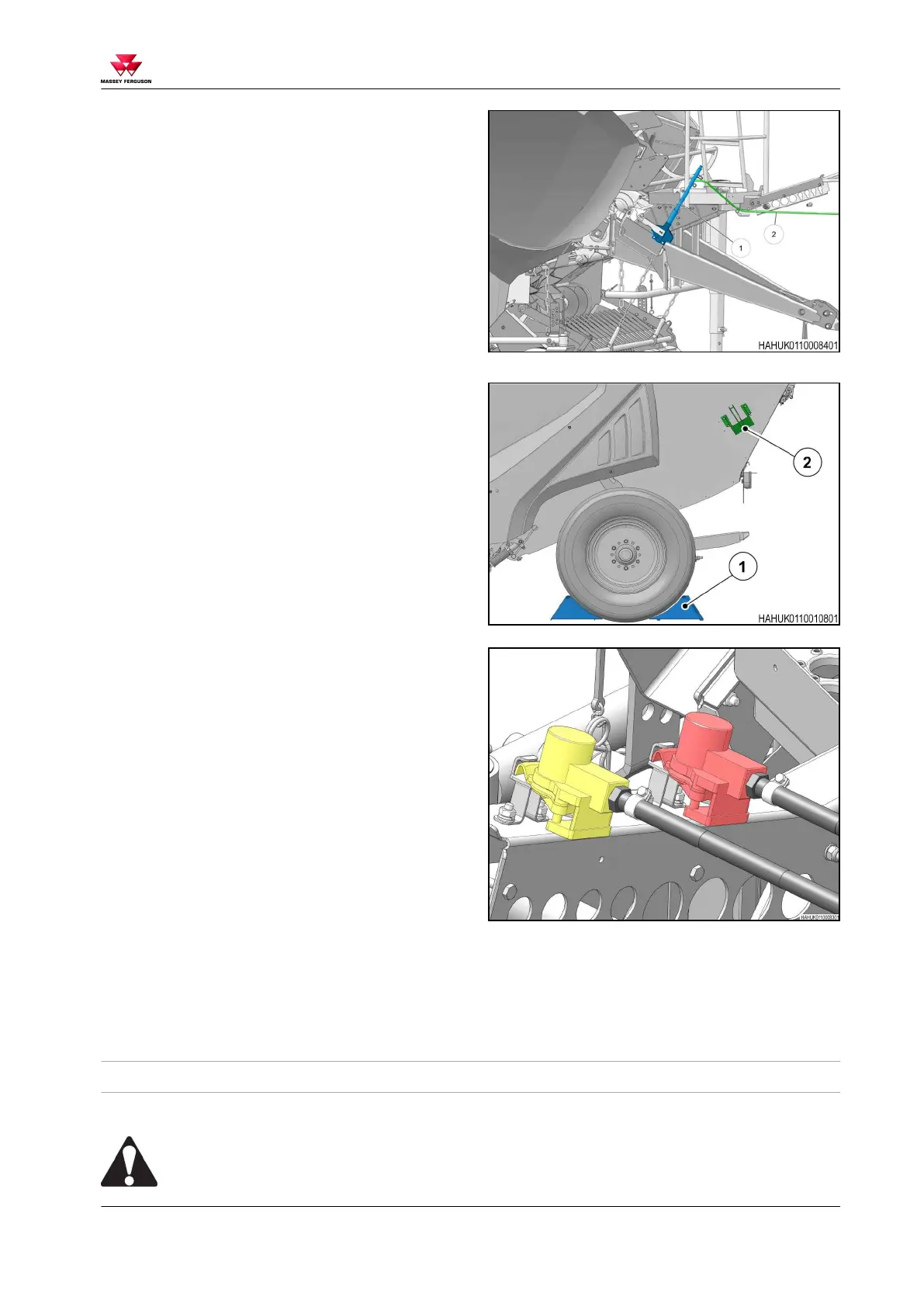

2. Apply the manually operated brake (1).
GUID-EAD6F6E5-A533-4F55-91A0-24618026E76D-high.jpg [High]
Fig. 2
3. Put the wheel chocks in position.
4. Install the support foot.
5. For a hydraulic brake system:
a) Disconnect the hydraulic brake hose from
the tractor and immediately connect it to
the dummy coupling on the platform.
b) Disconnect the optional safety brake cord.
GUID-E5D40FFC-94A2-46F8-8AE2-402B01AA88A6-high.jpg [High]
Fig. 3
6. For a compressed air braking system:
a) Disconnect the reservoir coupling with
the red top.
b) Disconnect the brake coupling with the
yellow top.
c) Connect the couplings to the dummies.
7. Disconnect the cables of the electrical power
supply, lighting and the control panel.
8. Disconnect the hydraulic hoses and connect
them to the dummies.
9. Disconnect the PTO shaft:
a) For a machine with a bottom coupling:
position the drive shaft on the drive shaft
support.
b) For a machine with a top coupling: hang the drive shaft in the strap.
10. Disconnect the machine.
11. Install the lock on the drawbar head.
GUID-6C6DF1C5-7E82-418C-811D-C6D0BDFA1B61-high.jpg [High]
Fig. 4
1.3.9 To Move the Machine without Brakes
Before starting the procedure
WARNING: Risk of unusual handling characteristics.
Always connect the air hoses to the tractor when you move or operate the machine.
GUID-430C60A5-2EE7-4E97-84A7-A29995D04FAD [V2]
1. General
1-11
1764-MF-EN01-SM NA
