1.5 Danger Zones
The operator controls the machine from the tractor seat (1) with the operator control unit, the hydraulic
single, double acting valve and the PTO shaft.
The danger zone (2) is the area immediately around the machine in which accidents can occur during
operation. The extended danger zone (3) is the area behind the machine, where bales eject.
DANGER: Risk of death.
Parts of the machine and bales can move this can cause injury or death.
Do not go in the danger zones of the machine during operation. The operator of the
machine must make sure that no person goes in the danger zones during operation.
DANGER: Risk of death.
When a person comes near the danger zones during operation, stop the tractor and
disengage the PTO shaft.

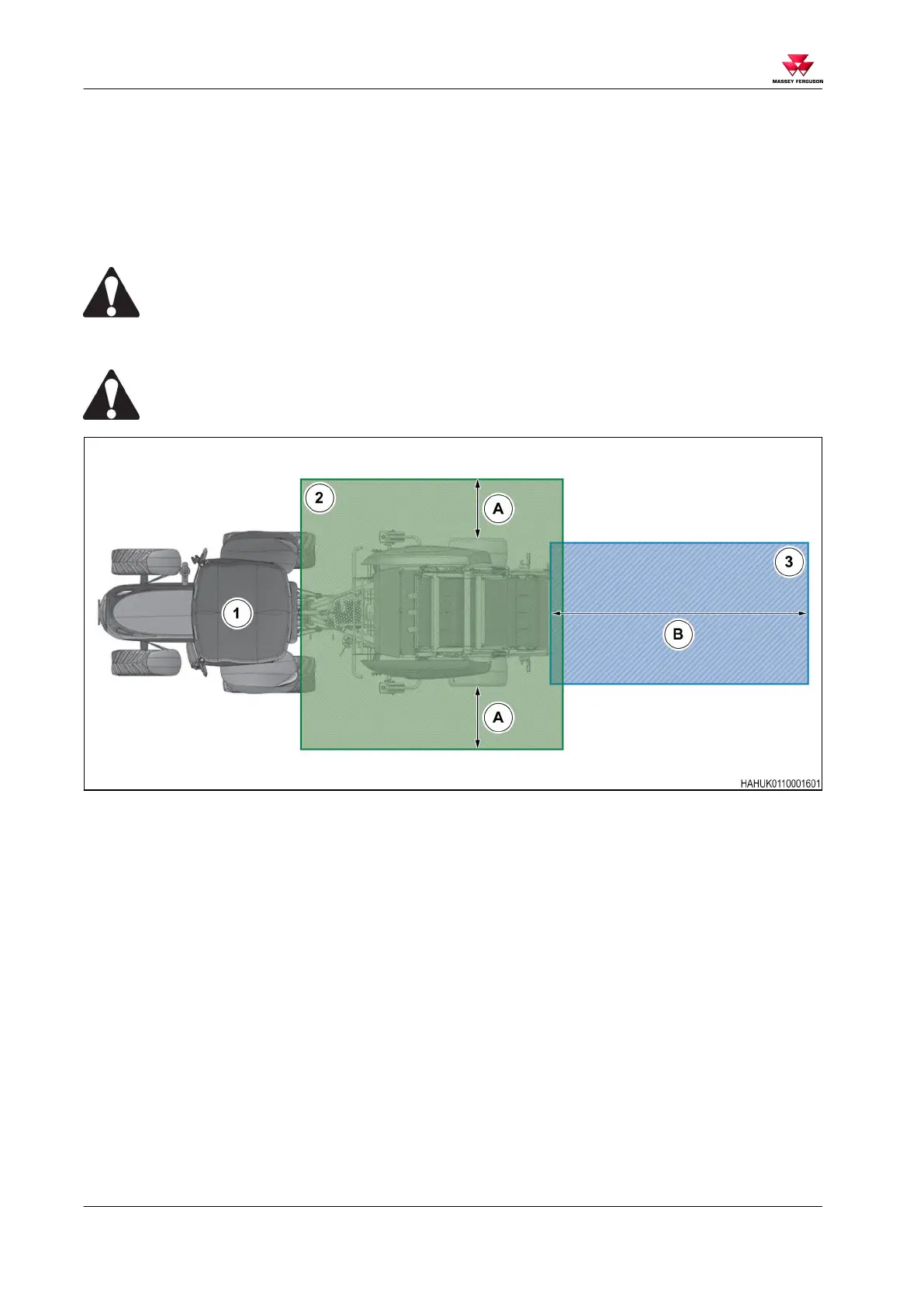

GUID-72DDADE0-FFA4-4D67-99E7-2571B34BDBC9-high.jpg [High]
Fig. 11
1
Operator position
2 Danger zone
3 Extended danger zone
• A = 2.00 m (6.6 ft)
• B = 15.00 m (49 ft)
GUID-8956E870-79C9-4B1A-A73B-EF923C4430B1 [V1]
1. General
1-18
1764-MF-EN01-SM NA
