Tyre size Maximum speed Tyre pressure
Only use tyres that have been approved for the maximum axle load of the machine (see value A1 on the
VIN-plate) at a speed of 40 km/h.
Guide wheels (not allowed on public roads)
170/60-8 40 km/h (25 mph) 2.0 bar (29 psi)
Tyres
Tightening torque for the wheel nuts
Only for wheel nuts with radius seat 450 Nm (332 lbft)
Only for flat collar nuts with spring collar 450 Nm (332 lbft)
Wheel nut tightening torque
1.7.1 Dimensions
The dimensions will change because of the type of tyres and the installed height of the drawbar head. See
the table for the maximum dimensions.

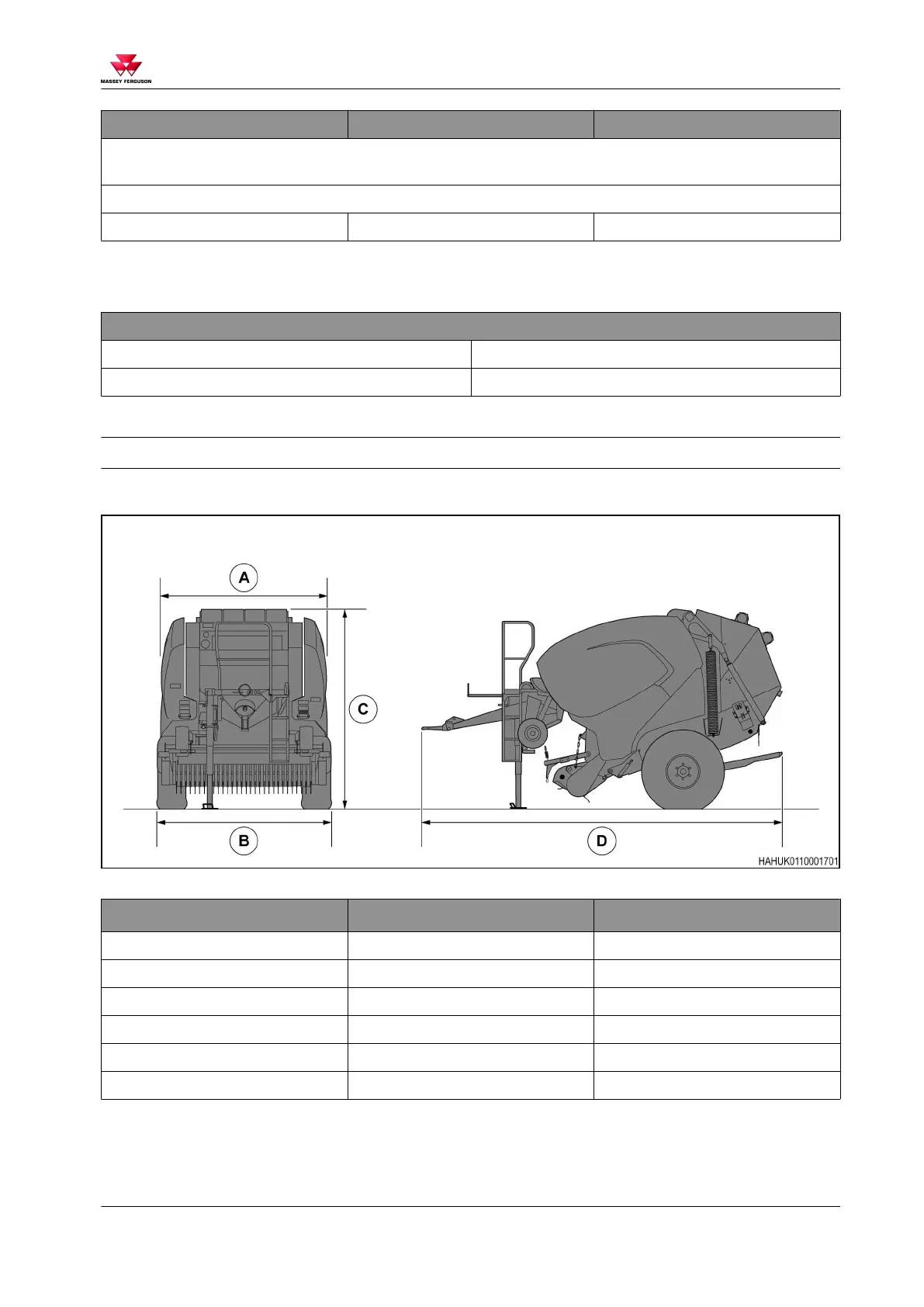

GUID-7C82DB7E-23ED-45A6-A8F6-3ED562C684F0-high.jpg [High]
Fig. 13
RB 4160 V RB 4180 V
Width top (A) 2580 mm (102 in) 2580 mm (102 in)
Width bottom (B) * 2800 mm (110 in) 2800 mm (110 in)
Height (C) 2900 mm (114 in) 3100 mm (122 in)
Height with open tailgate 4170 mm (164 in) 4250 mm (167 in)
Length (D) 5250 mm (207 in) 5500 mm (217 in)
Length with open tailgate 5600 mm (220 in) 5850 mm (230 in)
Dimensions
* If necessary for local law, the machine will have marks to identify the width when B exceeds 2,55m.
GUID-8C04B424-48C4-4DF4-B572-7DA3439A713A [V1]
