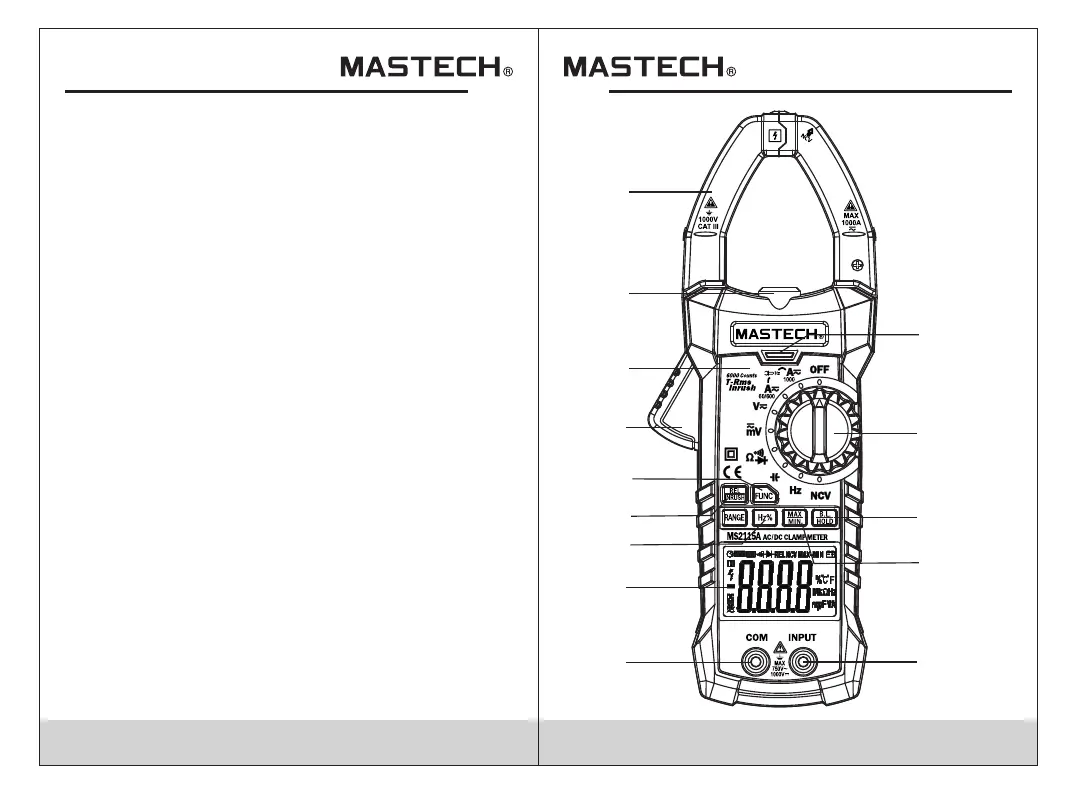

(1) Current clamp head: used for current measurement.
(2) Clamp head light
(3) Panel
(4) Trigger
(5) Function choice button (FUNC)
(6) Relative measurement button
(7) Frequency/duty ratio switch button (Hz/%)
(8) LCD display
(9) Common end jack
(10) Resistance, capacitance, voltage, frequency,
diode and continuity input jack
(11) Maximum/minimum choice button (MAX/MIN)
(12) Reading hold/Back light button (B.L/ HOLD)
(13) Transfer switch
(14) NCV indicator
2.1 Part Name
10
12
11
13
14
1
2
3
4
8
9
5
6
7
