The Matrix A5x Ascent Trainer is capable of accepting a 15" TV via a bracket. Follow the instructions
below to install the TV and bracket. Use the instructions in the Entertainment Owner's Manual to program
the TV after installation.
1) Turn off power and disconnect the power cord.
2) Remove the console from the Ascent Trainer.

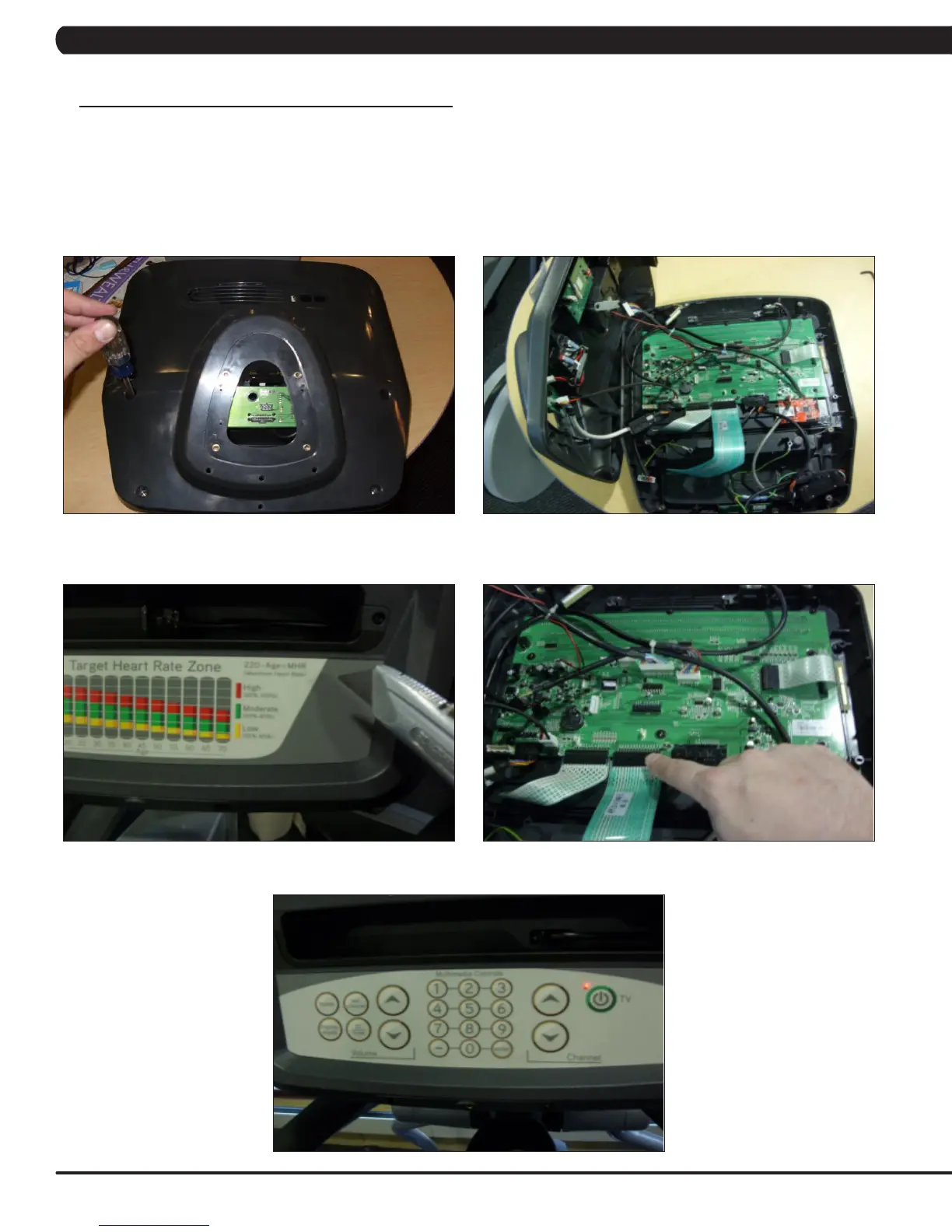

3) Remove the 4 screws holding the 2 halves of the console together and split the console (Figures A & B).
4) Peel up the existing lower overlay that says Target Heart Rate Zone on it (Figure C).
5) Unplug the old overlay from the UCB and remove it (Figure D).
6) Install the new Entertainment overlay onto the console in place of the old overlay (Figure E).
FIGURE B
FIGURE DFIGURE C
FIGURE A
FIGURE E
