66
9.13 FAN REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE

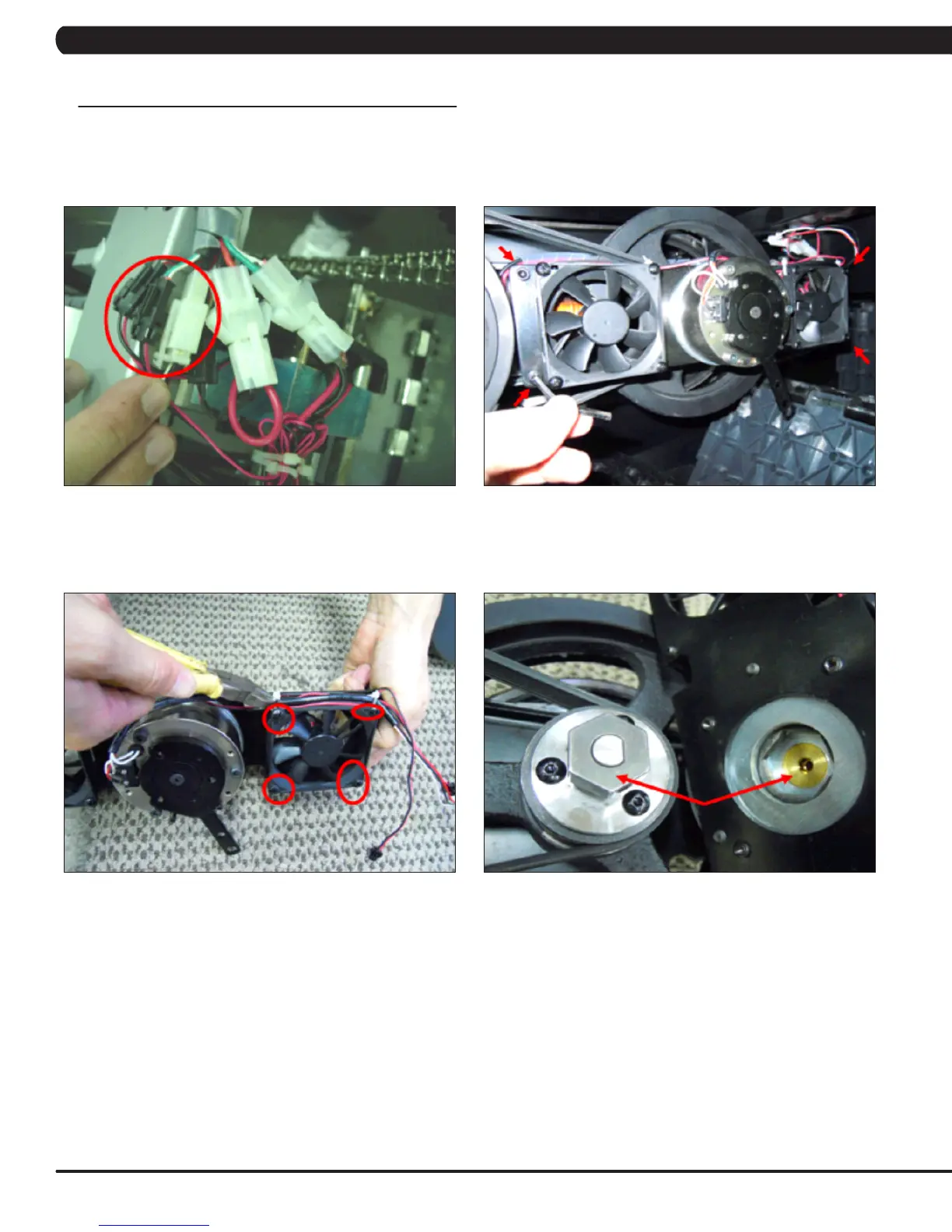

FIGURE A FIGURE B
FIGURE DFIGURE C
1) Turn off the power and disconnect the cord from the machine.
2) Remove the Matrix logoed covers from each side of the machine.
3) Turn the brake lever to the right to lock the stairs, to prevent movement that could cause injury.
4) Disconnect the brake and both fan wire connections (Figure A).
5) Remove the 4 screws holding the brake and fan plate to the drive set (Figure B) and remove the assembly.
6) Remove the 4 screws and 2 cable ties holding the fan and fan wire to the plate (Figure C).
7) Reverse Steps 1-6 to install a new fan. NOTE: When re-installing the plate assembly, make sure that the hexagon shaped plate on the brake
linesupwiththeslotsintheshaftoftheywheel(FigureD).
8) Test the Climb Mill for function as outlined in Section 9.20.
