-14-

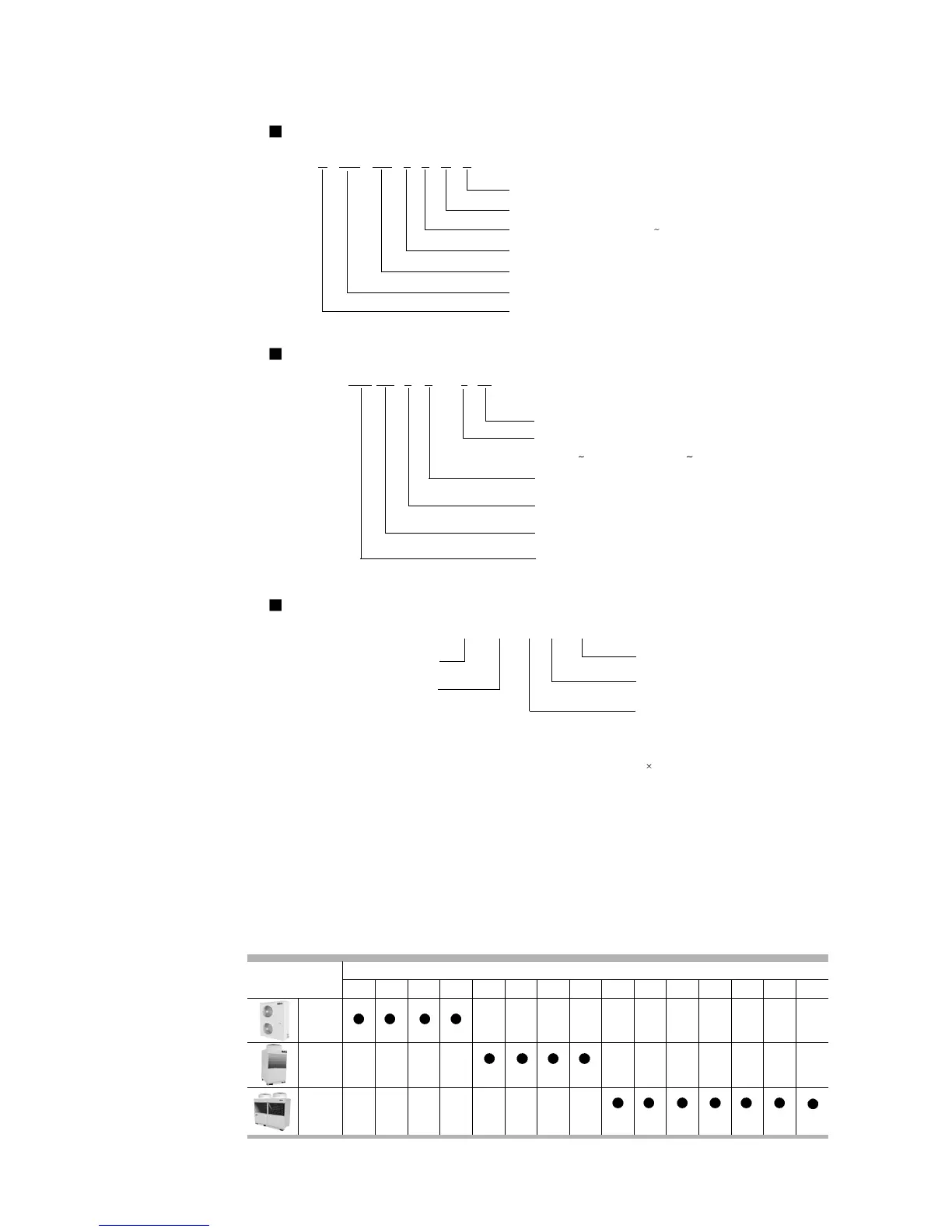

Design & installation Guide For McQuay MDS Multi System
1.5 Products Series
1.5.1 Outdoor Unit
Capacity range
3HP 4HP 5HP 6HP 8HP 10HP 12HP 15HP 18HP 20HP 22HP 24HP 26HP 28HP 30HP
Model
MDS-A
MDS-B
MDS-B
Outdoor unit: MDS unit
MDS 060 A R- F AA
Design serial No.
Cooling capacity No.
McQuay multi digital scroll unit
Description of the unit
Power supply:
A:220V /50Hz F:380V/3N /50Hz
Heat pump (omitted if cooling only)
MEX throttle box
Design serial No.
Pipe mode
Pipe size
MEX - 14 - 3 SA - A
McQuay expansion box
Valve opening size No.
Indoor unit: Wall Mounted Indoor Units
M WM 015 T - A M A
Design alternation No.
Matching outdoor units: MDS series
Power supply features: A:220V /50Hz
Design serial No.
Cooling capacity No.
Indoor unit: Wall Mounted Indoor Units
McQuay
________
MEX:Throttle box (one expansion valve)
________
Nominal diameter value 10
________
2:1/4 inch
3:3/8 inch
4:1/2 inch
________
Flare fitting & nipple joint
________
Primary design
McQuay
Valve opening size No.
Pipe size:
Pipe mode:
Design serial No.
