Practical hints
Replacing bulbs
Front turn signal lamp bulb
왘 Turn bulb socket 3 counterclockwise
and remove it.
왘 Press gently onto the bulb and turn
counterclockwise out of bulb
socket 3.
왘 Press the new bulb gently into bulb
socket 3 and turn clockwise until it
engages.
왘 Place bulb socket 3 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb
왘 Turn housing cover 2 counterclock-
wise and remove it.
왘 Pull out bulb socket 6 with the bulb.
왘 Pull the bulb out of the bulb socket 6.
왘 Press the new bulb into bulb socket 6.
왘 Press bulb socket 6 back into the
lamp.
왘 Align housing cover 2 and turn it
clockwise.

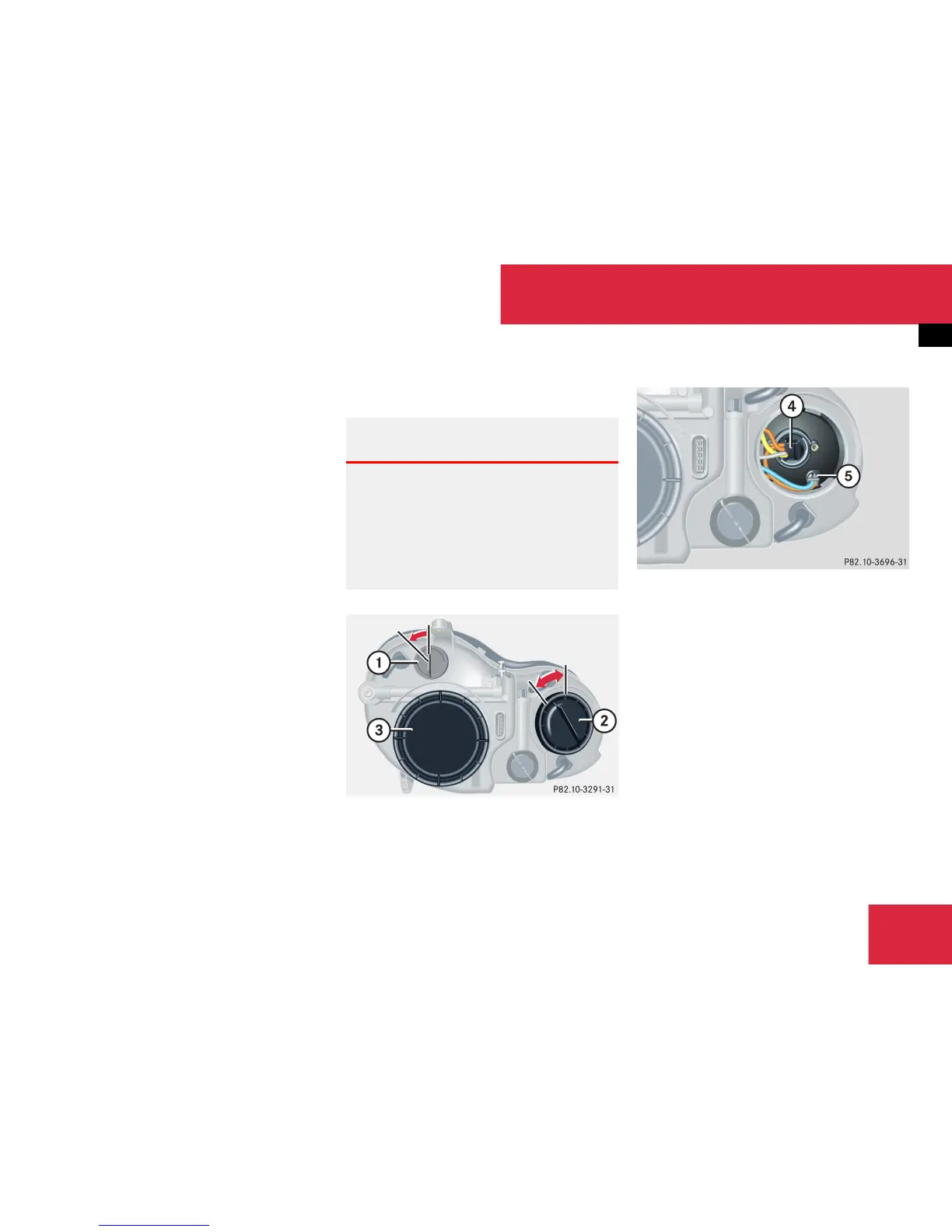

Front lamps Bi-Xenon*-type
1 Bulb socket for turn signal lamp
2 Housing cover for high beam flasher,
parking and standing lamp
3 Housing cover for Bi-Xenon* headlamp
4 Bulb holder for high beam flasher bulb
5 Bulb socket for parking and standing
lamp bulb
High beam bulb for high beam flasher
왘 Turn housing cover 2 counterclock-
wise and remove it.
왘 Turn bulb holder 4 with the bulb coun-
terclockwise and remove it.
왘 Pull the bulb at its socket out of bulb
holder 4.
왘 Insert the new bulb so that its socket
locates in the recess of bulb holder 4
and is level to it.
Warning! G
Do not remove the cover 3 for the Bi-Xe-
non* headlamp. Because of high voltage in
Xenon lamps, it is dangerous to replace the
bulb or repair the lamp and its components.
We recommend that you have such work
done by a qualified technician.
