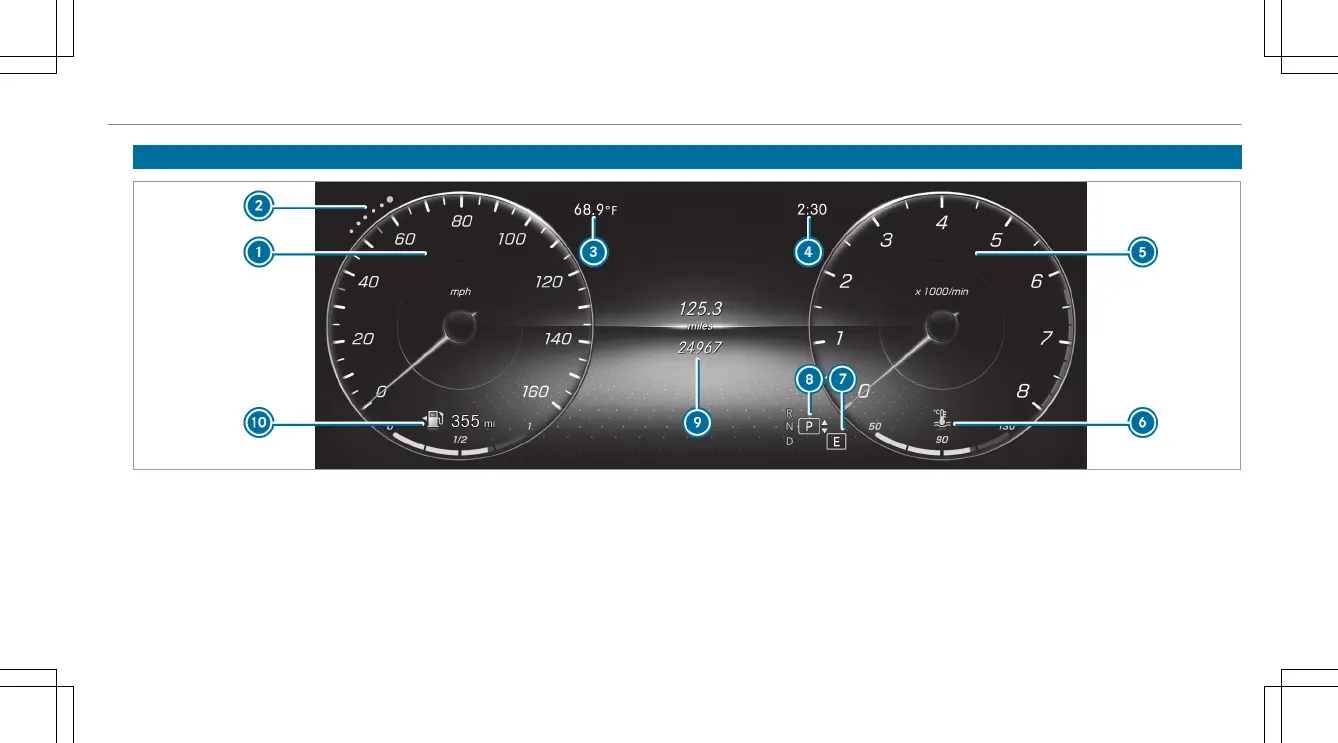

Instrument Display overview
1
Speedometer
The segments on the speedometer indicate
the statuses of the following systems: cruise
control/limiter/Active Distance Assist
DISTRONIC
2
Index points
3
Outside temperature
4
Time
5
Area for additional values (example: tachom‐
eter): tachometer/navigation/ECO display/
consumption/G-meter/date
The fuel supply will be interrupted to protect
the engine when the red mark on the tach‐
ometer (overrevving range) is reached.
6
Coolant temperature display
During normal operation, the coolant tem‐
perature display is permitted to rise to
248°F (120°C).
Vehicles with 48 V on-board electrical sys‐
tem: POWER and CHARGE display (electrical
drive support and recuperation power of the
electric motor)
7
Selected drive program
Instrument Display and on-board computer
223
