Mercedes-Benz V12 Biturbo M 279 AMG User Manual

Engine views
Overview
9
Introduction of the New V12 Biturbo Engine, M 279 AMG
b
P01.10-3111-00

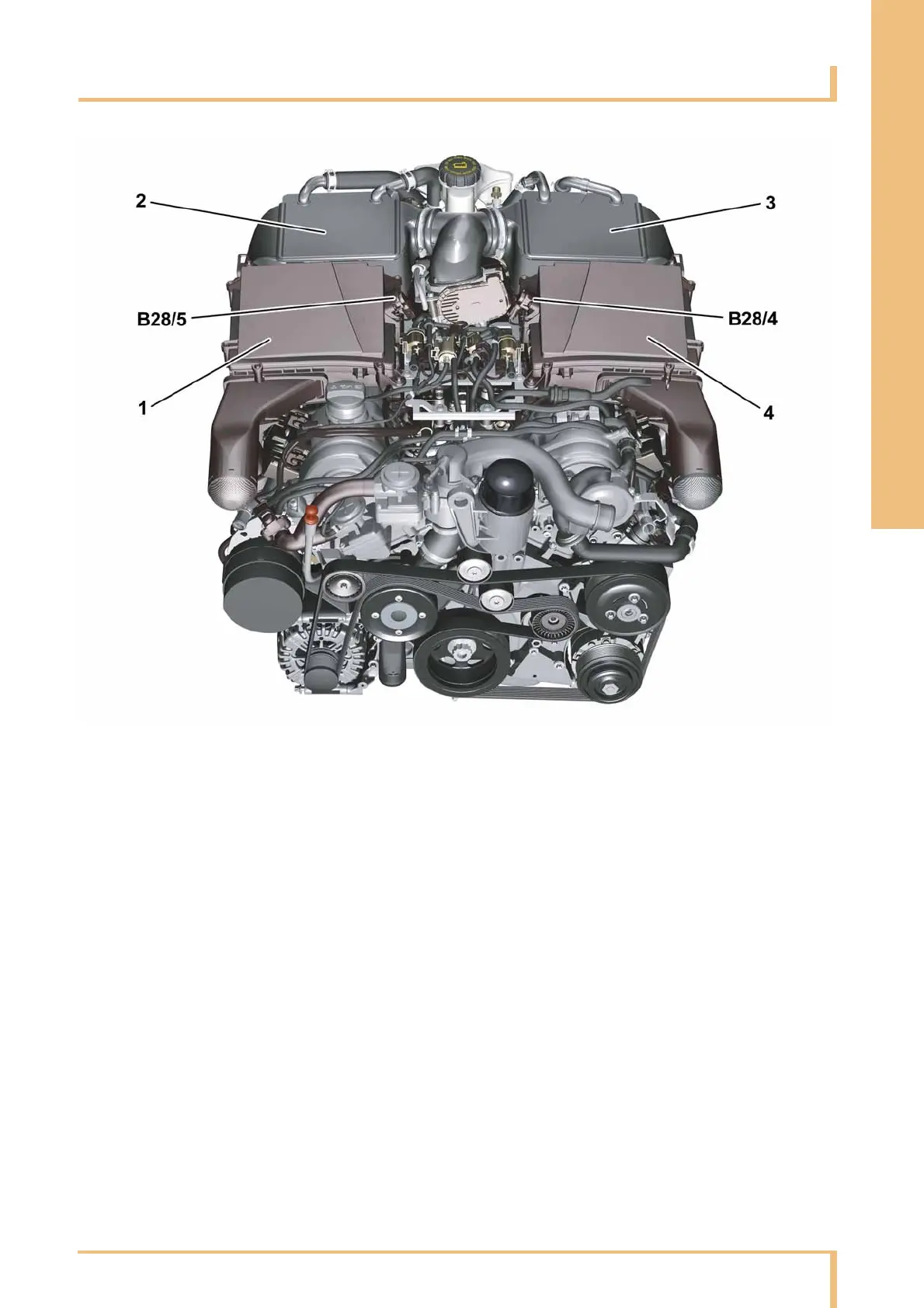

View of engine from above
1 Air filter housing, right cylinder bank
2 Charge air cooler, right cylinder bank
3 Charge air cooler, left cylinder bank
4 Air filter housing, left cylinder bank
B28/4 Pressure sensor downstream
of air fi
lter,
left cylinder bank
B28/5 Pressure sensor downstream of air fi
lter,
right cylinder bank
