OUTBOARD INSTALLATION
120 eng
Electrical, Hoses, Control Cables, and Front Clamp
REMOTE WIRING HARNESS

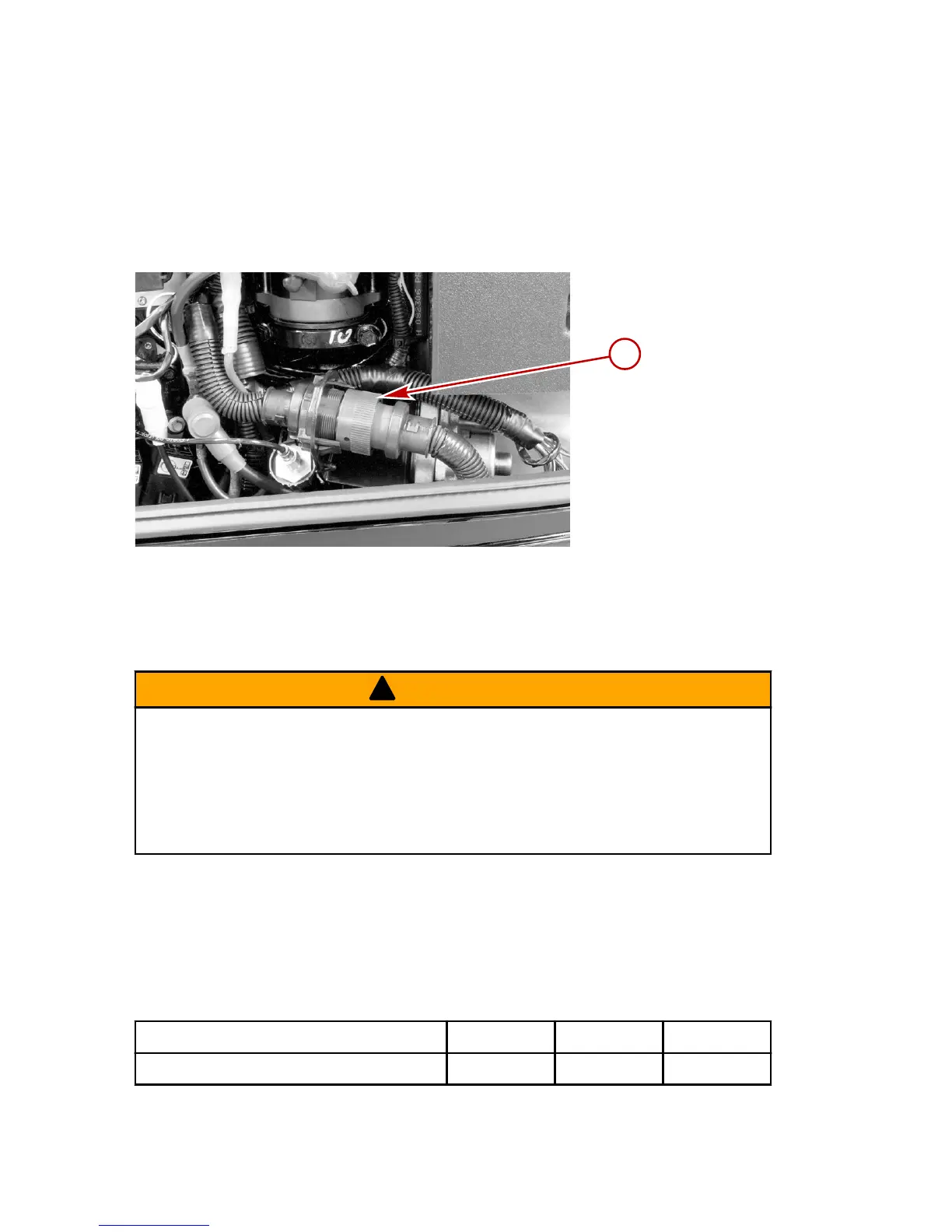

Route the remote 14 pin boat harness through the front clamp
opening in the bottom cowl. Connect remote harness to the 14
pin connector on the engine harness.
a - 14 pin connector
BATTERY INFORMATION
!
WARNING
Failure to properly secure the battery leads can result in a loss
of power to the Digital Throttle and Shift (DTS) system, leading
to serious injury or death due to loss of boat control. Secure
the battery leads to the battery posts with hex nuts to avoid
loose connections.
• Do not use deep‑cycle batteries. Engines must use a marine
starting battery with 1000 MCA, 800 CCA, or 180 Ah.
• When connecting the engine battery, hex nuts must be used
to secure battery leads to battery posts. Torque nuts to
specification.
Description
Nm lb‑in. lb‑ft
Hex nuts 13.5 120
