Mercury 300 XS OptiMax User Manual

OUTBOARD INSTALLATION
eng 121

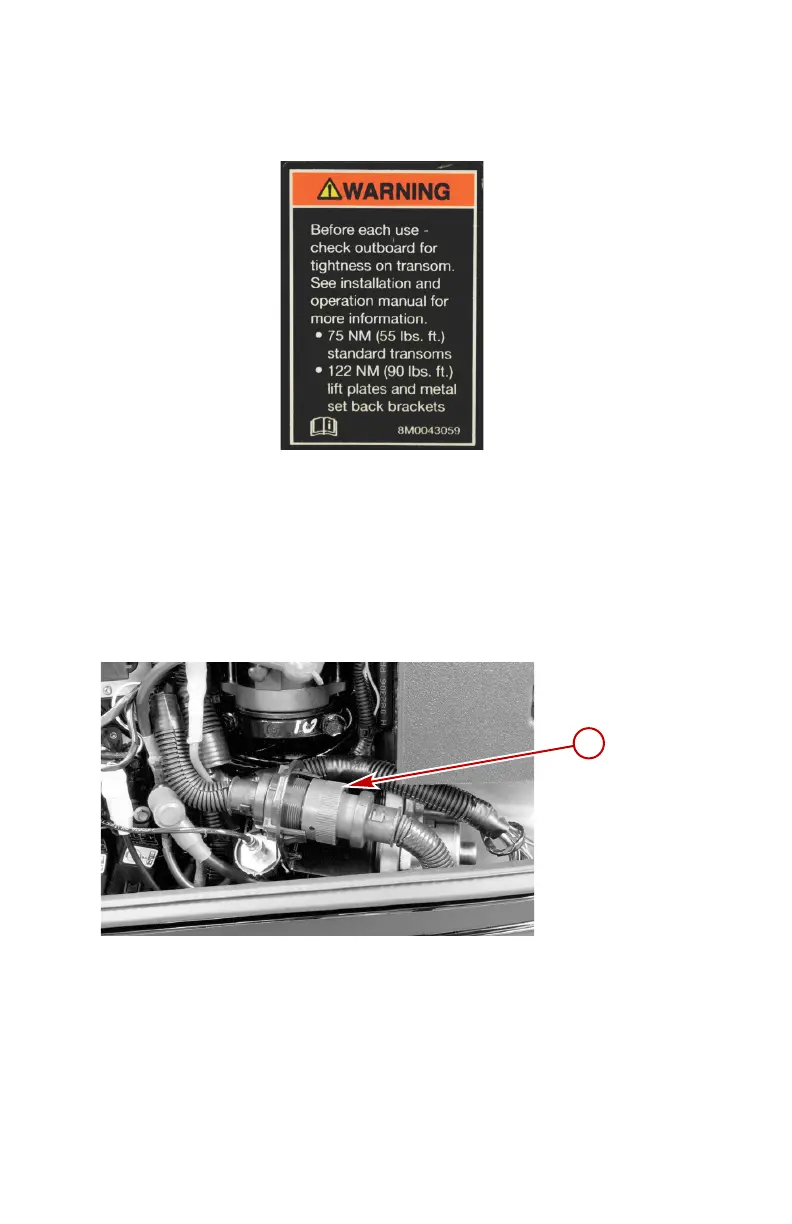

A decal on the transom bracket reminds the owner to check the fasteners
securing the outboard to the transom before each use.
51985
Decal on the transom bracket
Electrical, Hoses, Control Cables, and Front Clamp
REMOTE WIRING HARNESS
Route the remote 14 pin boat harness through the front clamp opening in the
bottom cowl. Connect remote harness to the 14 pin connector on the engine
harness.
a - 14 pin connector
a
28742
