Mercury 300 XS OptiMax User Manual

FEATURES AND CONTROLS
eng 53

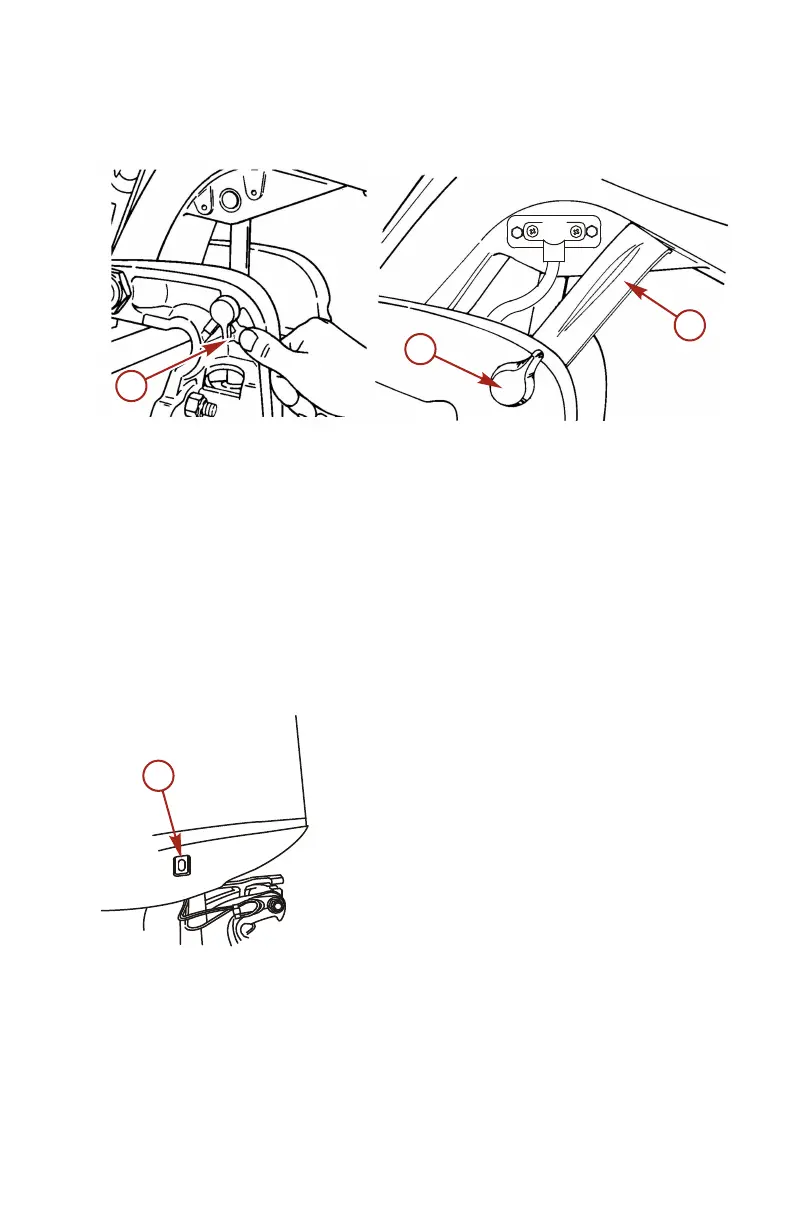

1. Engage the tilt support lever by pushing the metal stop and rotating the
knob to bring the support lever upward.
a - Tilt support lever
b - Metal stop
c - Knob
2. Lower the outboard to rest on the tilt support lever.
3. Disengage the tilt support lever by raising the outboard off the support
lever and rotating the lever until it locks. Lower the outboard.
Auxiliary Tilt Switch
This switch can be used to tilt the outboard up or down using the power trim
system.
a - Auxiliary tilt switch
Manual Tilt Operation
If the outboard cannot be tilted using the power trim/tilt switch, the outboard can
be tilted manually.
b
c
a
37214
a
2745
