MAINTENANCE
76 eng

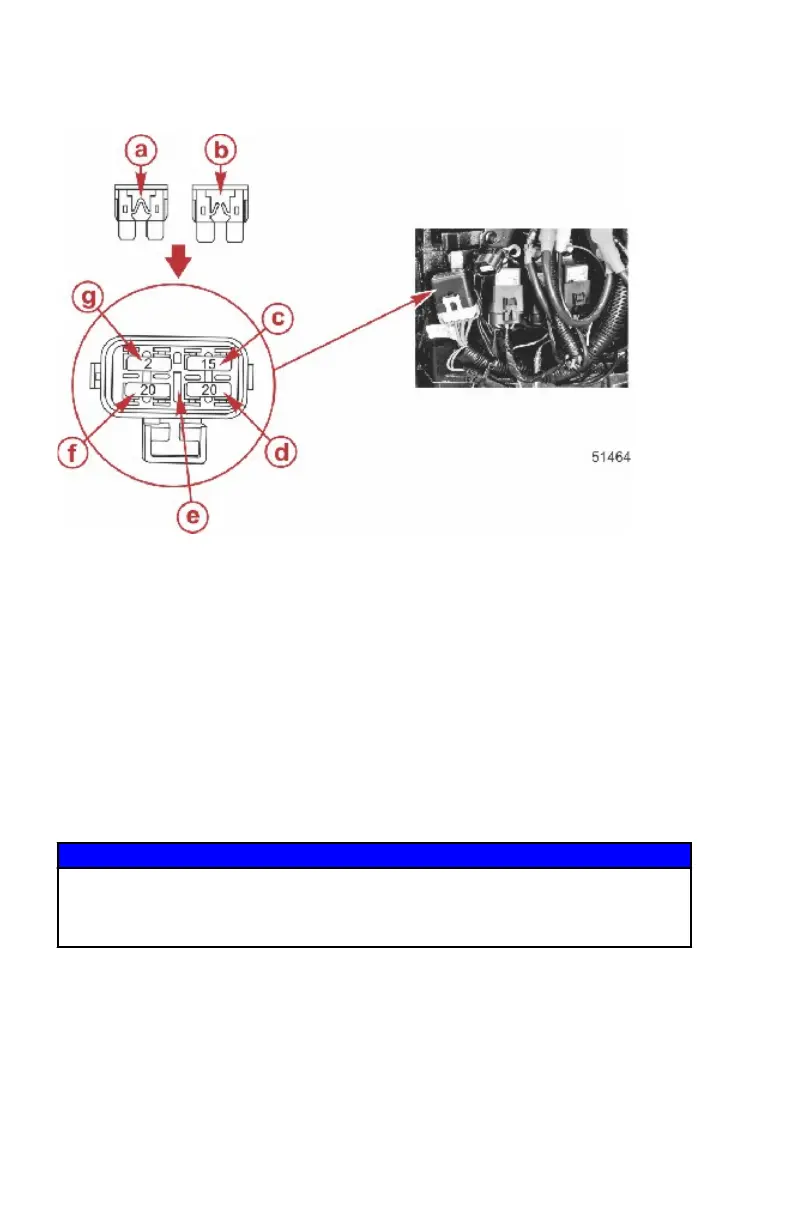

The fuses and circuits are identified as follows:
Fuse location and identification
a - Good fuse
b - Blown fuse
c - Power‑on circuit – 15‑amp fuse
d - Ignition coil circuit – 20‑amp fuse
e - Spare fuse slot
f - Fuel injector/direct injector/PCM and electric fuel pump circuits –
20‑amp fuse
g - Diagnostic circuit – 2‑amp fuse
Corrosion Control Anode
NOTICE
Anodes made of insufficiently pure aluminum alloys may not adequately
protect critical drive components from corrosion. We recommend using
anodes sold through Mercury Precision Parts only.
Anodes help protect the power package against galvanic corrosion by
sacrificing its metal to be slowly eroded instead of other metals.
