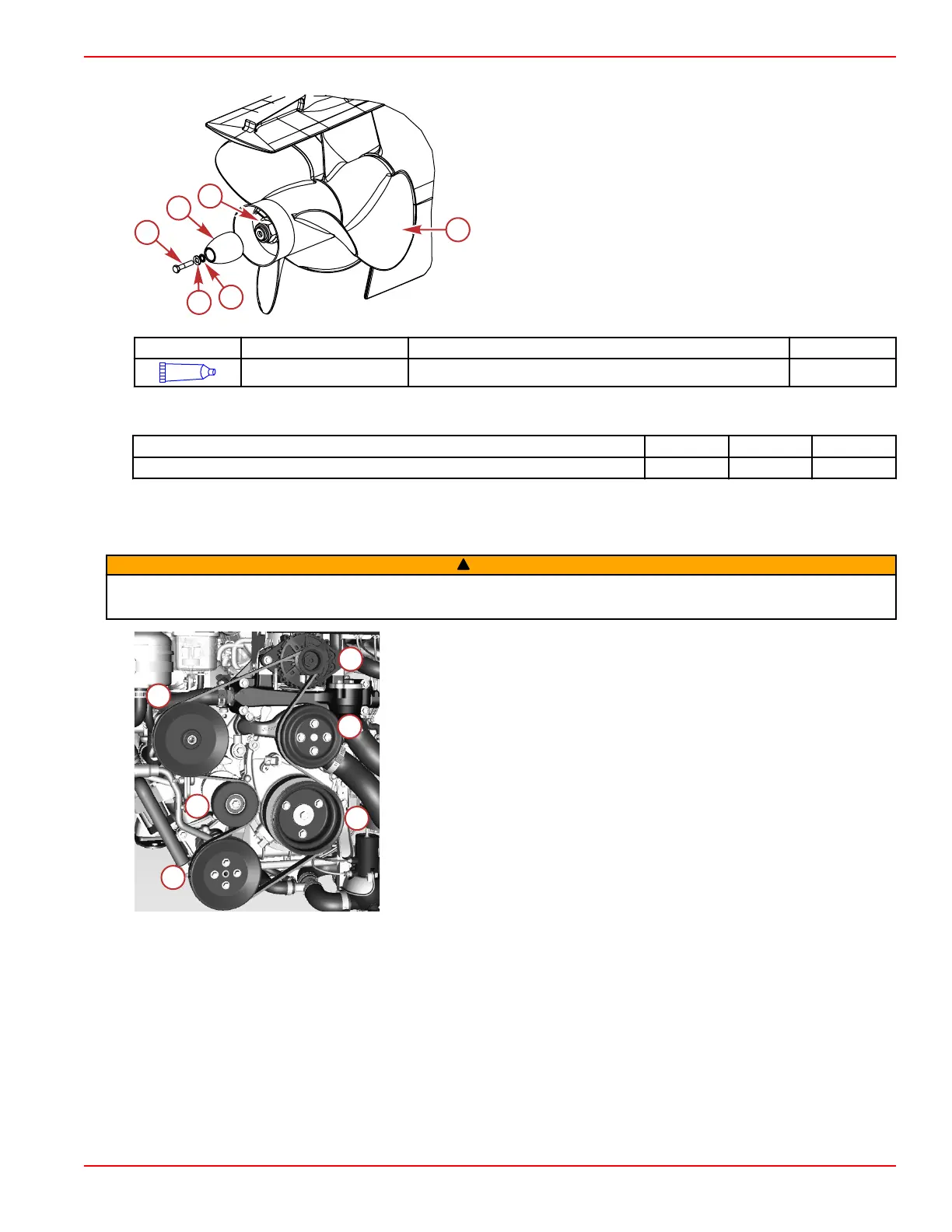

11. Apply Loctite 271 Threadlocker onto the propeller shaft anode screw threads.
a - Propeller
b - Rear propeller nut
c - Propeller shaft anode
d - Propeller shaft anode screw
e - Flat washer
f - Star washer
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Propeller shaft anode screw threads 92-809819
12. Secure the propeller shaft anode to the propeller shaft with the propeller shaft anode screw and washers. Tighten the
anode screw to the specified torque.
Description
Nm lb‑in. lb‑ft
Propeller shaft anode screw 38 mm (0.3125‑18 x 1.5 in.) long 27 – 20
Serpentine Drive Belt
Serpentine Drive Belt Routing
!
WARNING
Inspecting the belts with the engine running may cause serious injury or death. Turn off the engine and remove the ignition
key before adjusting tension or inspecting belts.
With a seawater pump
a - Alternator pulley
b - Water circulating pump pulley
c - Crankshaft pulley
d - Seawater pump pulley
e - Belt tensioner
f - Power steering pump pulley
Section 4 - Maintenance
90-8M0128973 eng MAY 2017 Page 69
