Mercury 4000 MPC GEN 2 User Manual

4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 20 / 23 90-899782001 APRIL 2008

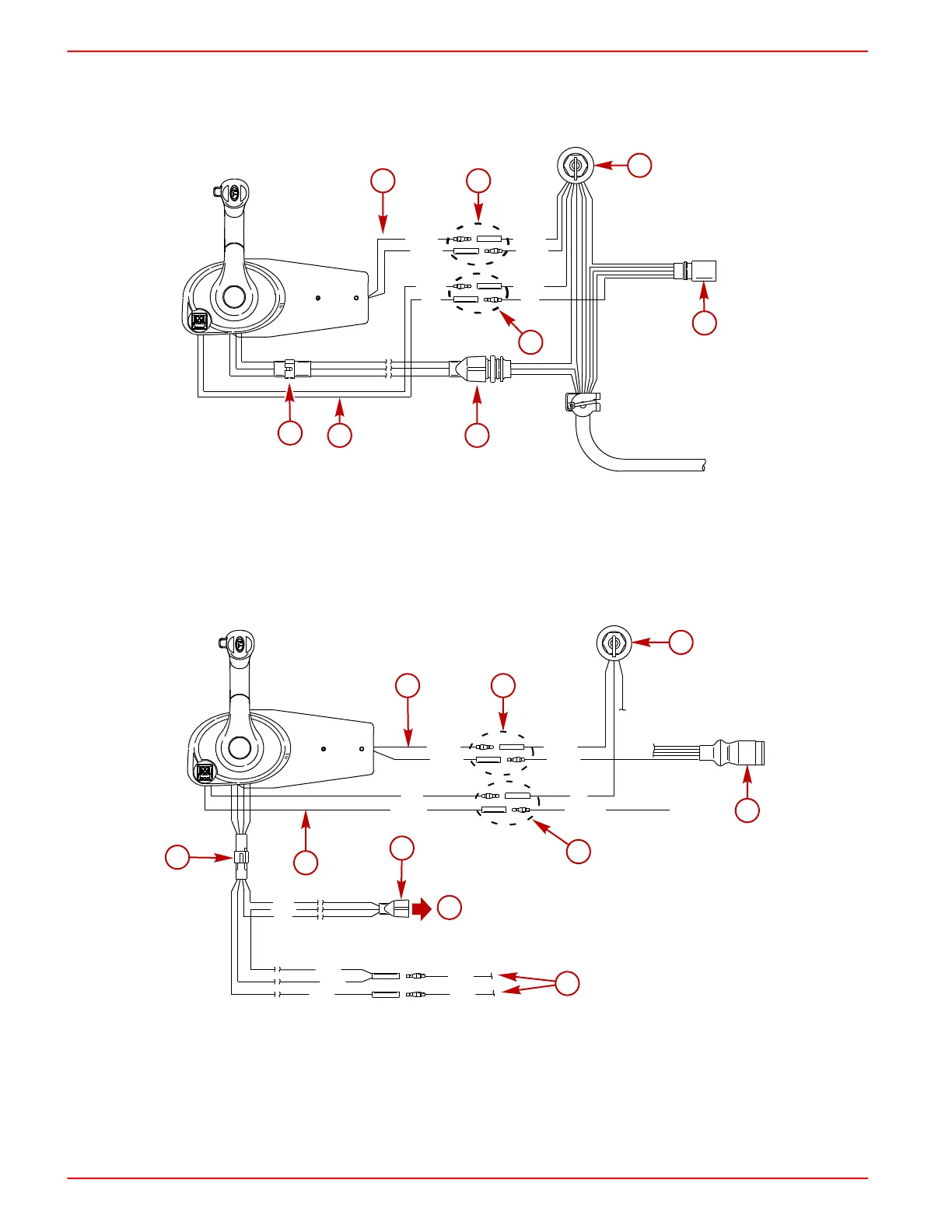

Lanyard Stop Switch Wiring Diagrams
Mercury/Mariner Outboards 40 HP through 225 (3.0 Liter), Force (1993 and Newer)
a
b
b
c
d
e
f
g
YEL/RED
YEL/RED
YEL/RED YEL/RED
BLK
BLK
BLK/YEL
BLK/YEL
24976
a - Neutral start safety leads
b - Bullet or eyelet connectors
c - Ignition key switch
d - Engine harness connector
e - Power trim connector
f - Lanyard stop leads
g - 3 pin plastic connector
Mercury MerCruiser All Single Engine Gasoline Models
+ 1 2 V
YEL/RED
YEL/RED
YEL/RED
YEL/RED
PUR/WHT
PUR/WHT
PUR
PUR
BLU
BLU
BLU
BLU
PUR
PUR
GRN
RED
24977
a
b
c
d
f
g
h
e
b
i
a - Neutral start safety leads
b - Bullet or eyelet connectors
c - Ignition key switch
d - Engine harness connector
e - Trim limit switch
f - Power trim connector
g - Lanyard stop leads
h - 4 pin plastic connector
i - To power trim pump
