4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 8 / 23 90-899782001 APRIL 2008

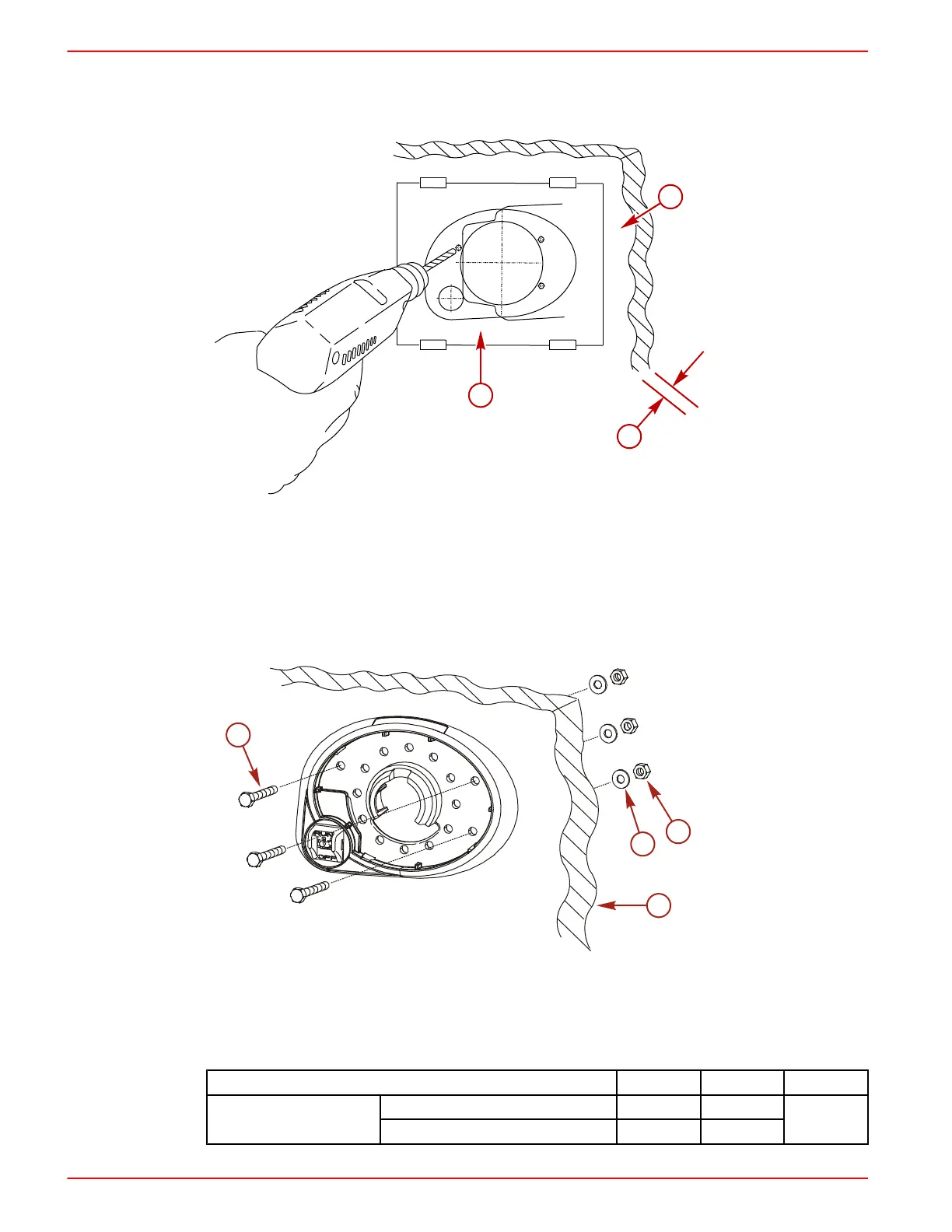

IMPORTANT: After cutting and drilling the mounting platform, use a suitable tool to
remove all of the sharp edges on the inside and outside of the mounting platform cutout
to prevent chafing of the harnesses.
17436
a
b
c
a - Mounting surface
b - Maximum mounting platform thickness 2.54 cm (1 in.)
c - Template
BEZEL INSTALLATION
Install and secure the bezel to mounting platform surface. Tighten the bezel mounting
screws to the specified torque.
17438
a
b
c
d
a - Screw (0.250‑20 x 1.750 in.) (3)
b - Washers (3)
c - Nuts (0.250‑20) (3)
d - Mounting platform
Description Nm lb. in. lb. ft.
Bezel mounting screw (3)
Aluminum or fiberglass 5.6 50
Plywood 4 35
