MID-SECTION
Page 5-12 90-857138R1 MAY 2000

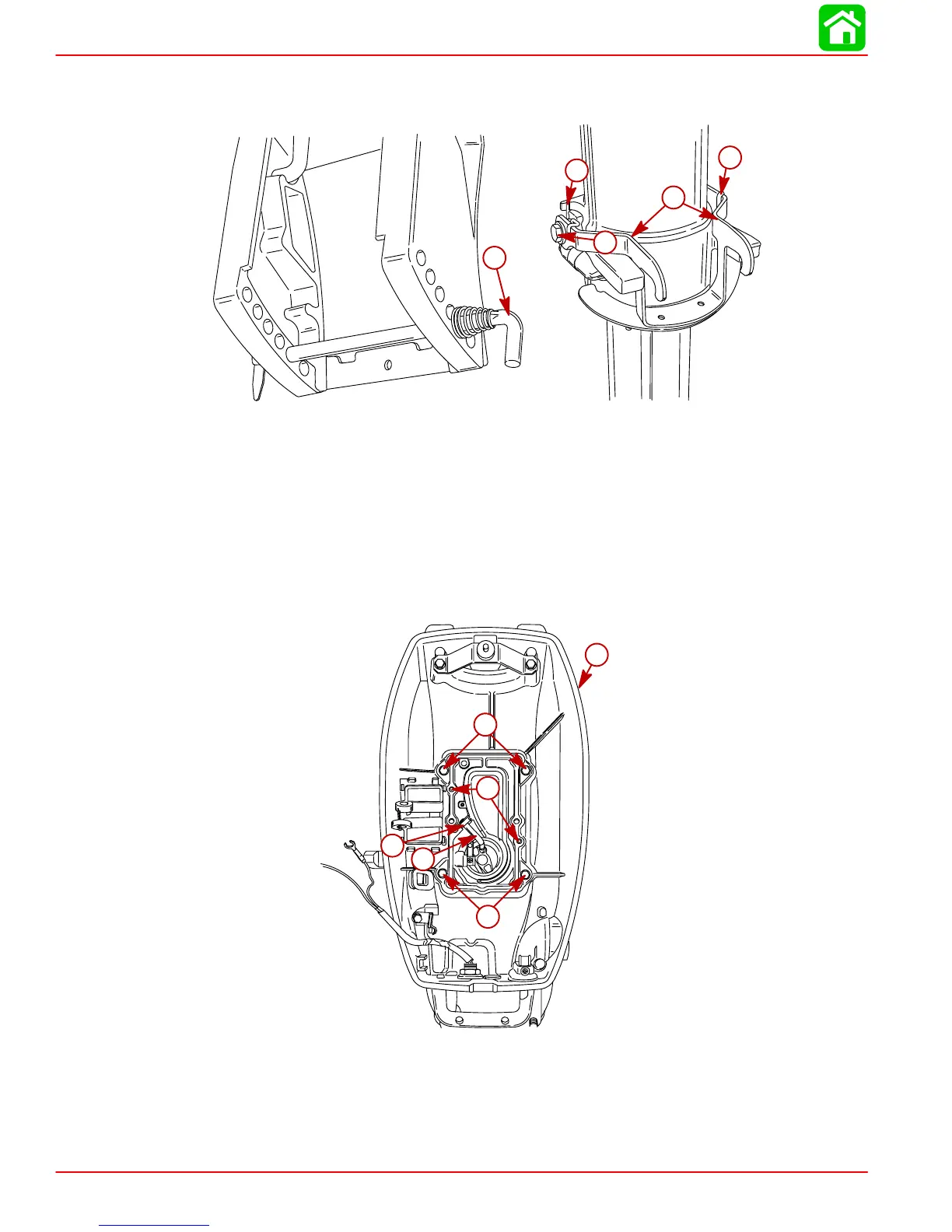

7. Install tilt lock pin.
8. Secure reverse lock hook onto bosses of swivel bracket.
a
b
c
d
e
56381
56382
a - Tilt Lock Pin
b - Reverse Lock Hook
c - Spring - Port
d - Spring - Starboard
e - Bolts (2); Torque Bolts to 70 lb-in. (8 Nm)
Bottom Cowling
1. Attach components to bottom cowl and secure bottom cowl to drive shaft housing, as
shown.
a
b
c
b
d
e
56383
a - Bottom Cowl
b - Bolt with Washer (4); Torque Bolts to 70 lb-in. (8 Nm)
c - Guide Pins (2)
d - Water Tube
e - Water Tube Seal
