GEAR HOUSING
90-857138R1 MA
Y 2000
Page 6-15

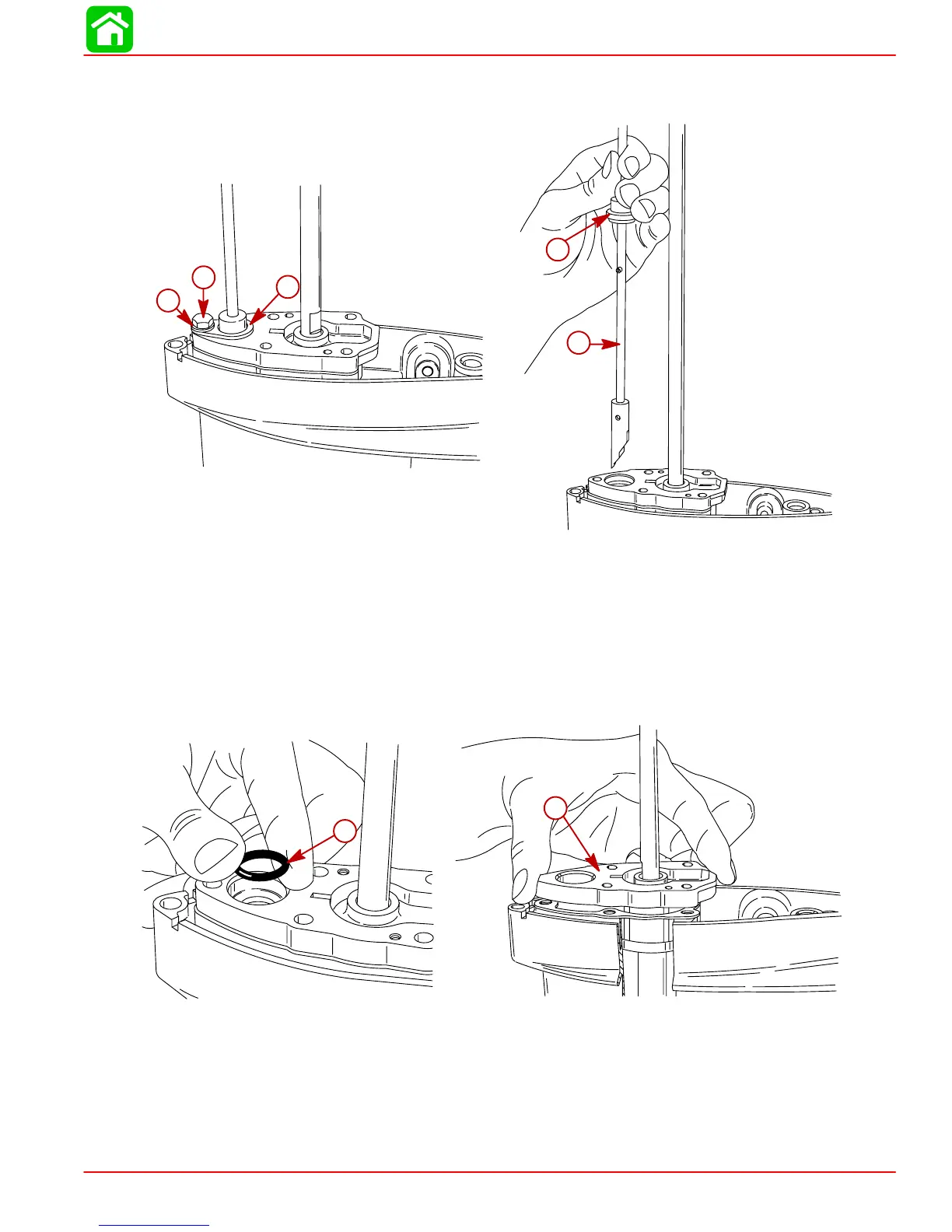

3.
Remove bolt, washer and retainer plate.
4.
Remove shift shaft assembly and bushing.
a
b
c
d
e
56415
56416
a
-
Bolt
b
-
W
asher
c
-
Retainer Plate
d
-
Shift Shaft Assembly
e
-
Bushing
5.
Remove O-ring.
6.
Remove water pump base.
a
b
56417
56418
a
-
O-ring
b
-
W
ater Pump Base
202
204
