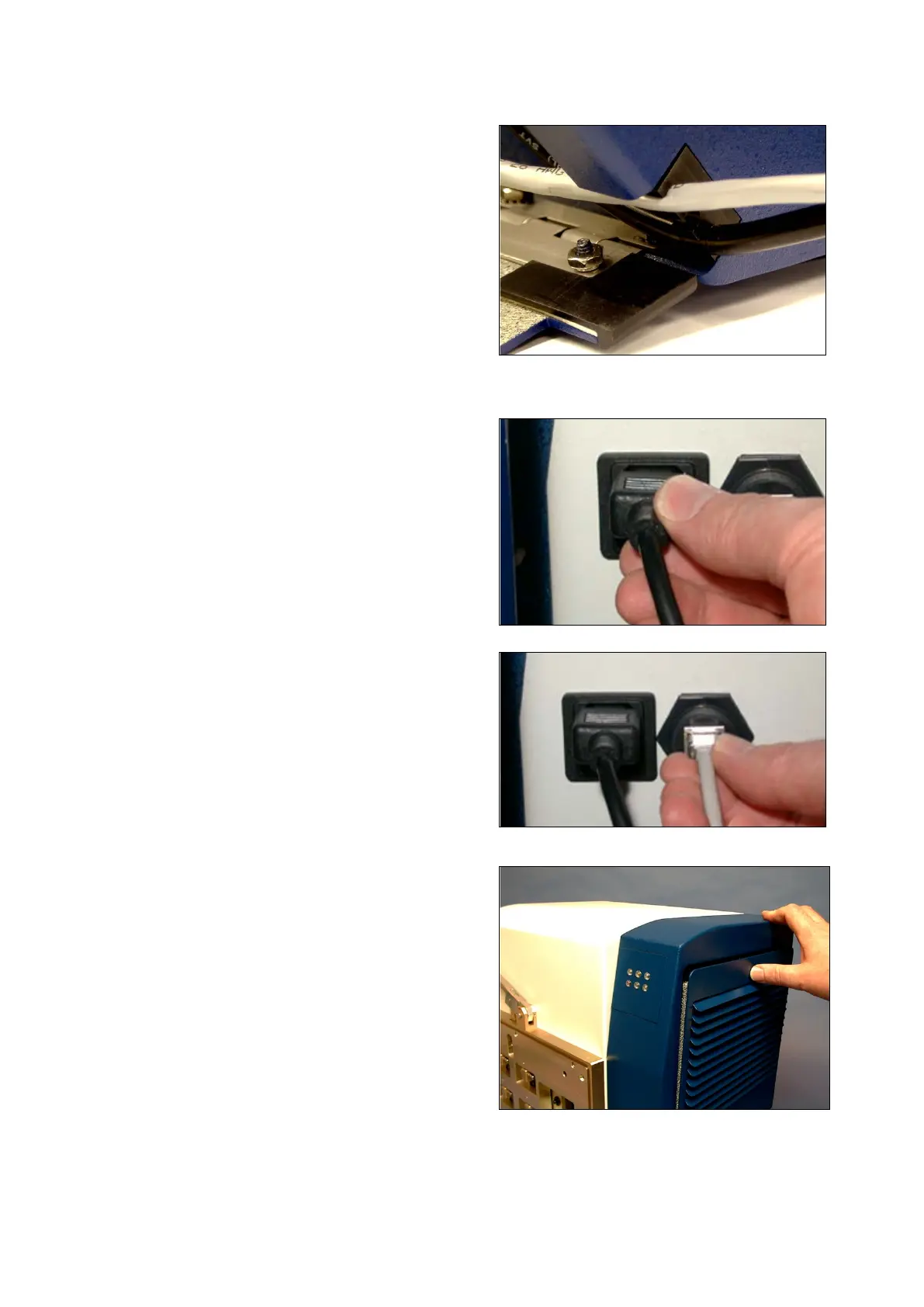

Gently thread the AC power cable and
network cable through the lower right
corner of the instrument access area as
shown.
The cables should snap into the black
holder. The innermost position is large, to fit
the power cord. If the power cord is in the
wrong location, the door may not close
fully.
The network cable may go into either of the
other two locations.
Insert the AC power cable into the AC
power block as shown.
Attach the RJ-45 cable to the network
connector on the instrument. If using Direct
Connection, use the gray cable from the
instrument accessory kit.
If using network connection, do not use the
gray cable, as it is a “UTP crossover” cable
and will not work with a network. Use a
network cable as described in section 3.0.
7 Close the outer cover of the instrument.
Push gently to the final closed position. It
should latch securely.
