14 6 BC 71 en

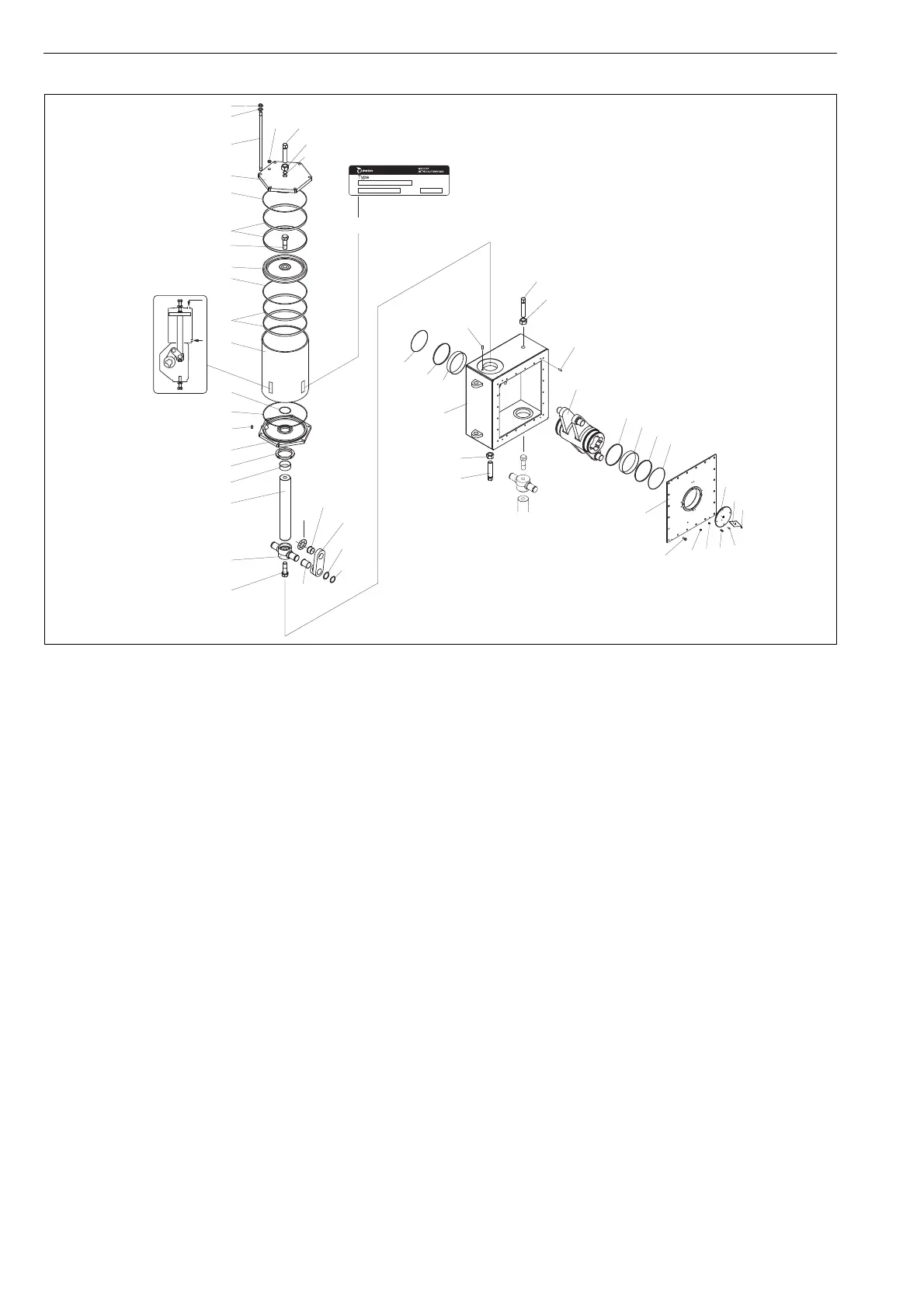

8.4 Actuators B1C 502-752
Spare part set category 1: Recommended soft parts for inspection and maintenance (to be replaced always after disassembling the actuator)
Spare part category 2: Leverage repair
Spare part category 3: Complete overhaul (for complete overhaul parts of all 3 categories are needed)
45
46
31
26
33
33A
44
19
24
28
9
10
8
16
19
6
35
18
22
5
29
20
4
21
37
36
17
25
23
1
34
27
3
3A
23
25
17
2
30
7
61
62
41
32
58
42
39
42
24
65
63
96
27
34
4A
Item Qty Description Spare part category
11Housing
21Cover 3
3 1 Lever arm 2 **
3A 1 Antistatic ring 2 **
4 4 Connection arm 2 **
4A 1 Antistatic ring 2 **
52Bearing unit 2 **
62Cylinder base 3
71Pointer cover 3
82Cylinder 3
92Piston 3
10 2 Piston rod 3
16 2 O-ring 1 *
17 2 O-ring 1 *
18 2 O-ring 1 *
19 4 O-ring 1 *
20 4 Bearing 1 *
21 4 Bearing 1 *
22 4 Bearing 1 *
23 2 Bearing 1 *
24 8 Piston seal 1 *
25 2 Bushing 3
26 2 Stop screw 3
27 2 Stop screw 3
28 2 Screw
Item Qty Description Spare part category
29 2 Screw
30 20 Screw
31 12 Stud
32 2 Screw
33 2 Nut 3
33A 2 O-ring 3
34 2 Nut 3
35 2 Lock nut 3
36 4 Lock ring (**)
37 4 Support ring (**)
39 1 ID plate
41 4 Plug
42 4 Plug
44 2 Cylinder end 3
45 12 Nut
46 12 Washer
58 1 Pressure outlet valve
61 1 Direction arrow
62 2 Screw 3
63 2 Pin
65 4 Pin
96 4 Screw
*) Delivered as a set
**) Leverage assembly, also available as separate part
(**) Belongs to leverage assembly, not recommended as separate part
