June 2020
Page 9 of 21

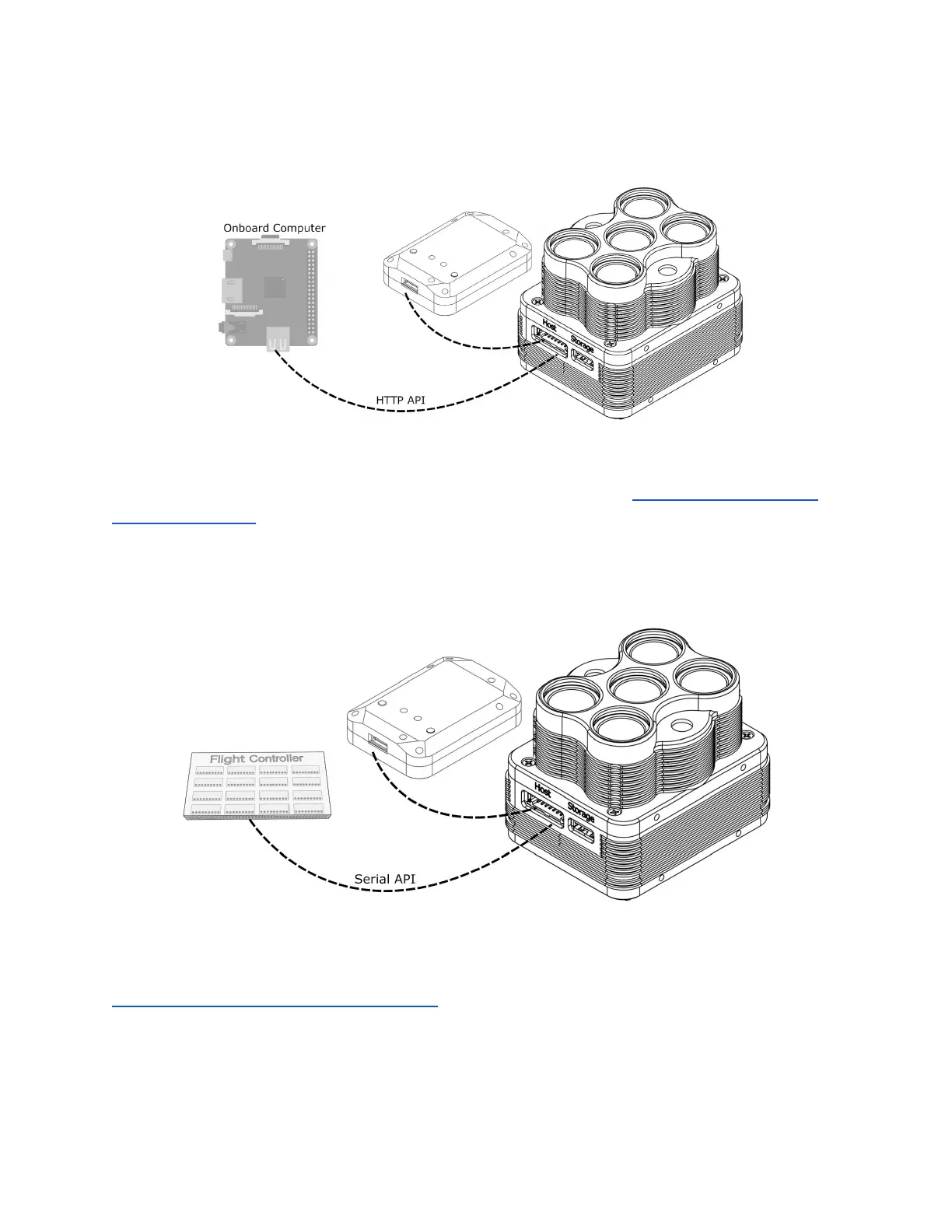

Default + trigger by HTTP API
With this configuration, instead of automatically capturing with an automatic triggering mode,
the HTTP API (see below) is used with an onboard computer to trigger the camera at intervals
determined by your computer. See examples of the HTTP API here: Integration examples for
MicaSense sensors.
MAVLink with PixHawk or similar flight controller
The Altum can be triggered with a PixHawk flight control system using the serial API.
MicaSense cameras currently use the MAVLink v1.0 messaging protocol for the serial API,
which the camera uses to interact with PixHawk. You can read more detailed information here:
Guide for MicaSense Sensors and PixHawk.
© 2020 MicaSense, Inc
