Midea Aqua Tempo Super Series User Manual

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
100

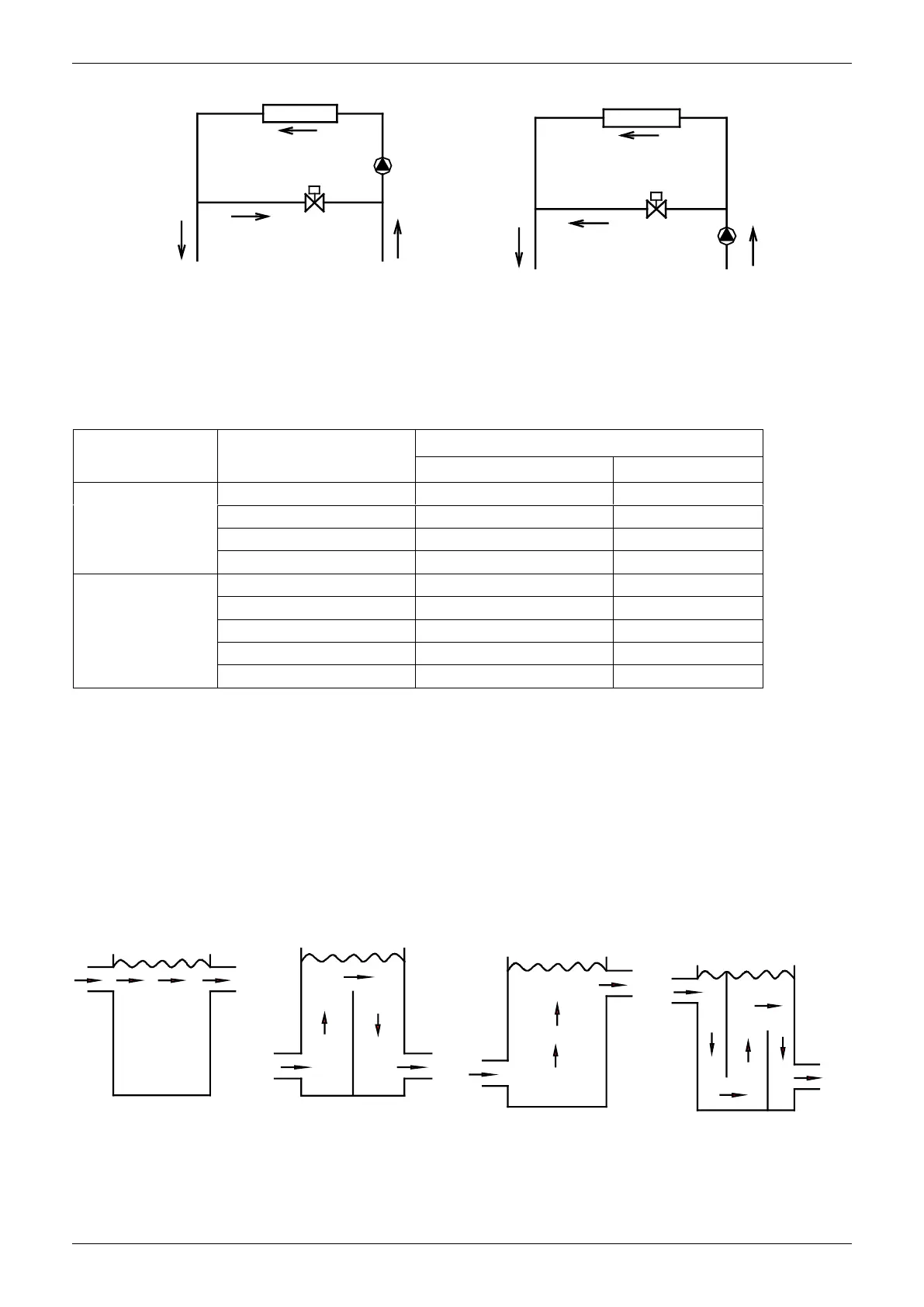

Evaporator
Recirculation
For minimum chilled water flow rate
Fig. 4-2
For maximum chilled water flow rate
Evaporator
Recirculation
Maximum chilled water flow
The maximum chilled water flow is limited by the permitted pressure drop in the evaporator. It is provided in
the below table.
If the system flow is more than the maximum unit flow rate, bypass the evaporator as shown in the diagram
to obtain a lower evaporator flow rate.
Minimum and Maximum water flow rates
Series
Model
Water flow rate(m3/h)
Minimum
Maximum
SS
MC-SS35/RN1L
5.4
6.6
MC-SS65/RN1L
10.08
12.32
MC-SS80/RN1L
12.42
15.18
MC-SS130/RN1L
20.16
24.64
SP
MC-SP25-RN1L
5.4
6.6
MC-SP25M-RN1L
5.4
6.6
MC-SP35M-RN1L
6.08
9.3
MC-SP35-RN1L
6.08
9.3
MC-SP65-RN1L
10.08
12.32
13.2.12 Design of the store tank in the system
a. kW is the unit for cooling capacity, L is the unit for (G) minimum water flow volume in the formula.
Comfortable type air conditioner
G= cooling capacity×2.6L
Process type cooling
G= cooling capacity×7.4L
b. In certain occasion (especially in manufacture cooling process), for conforming the system water content
requirement, it’s necessary to mount a tank equipping with a cut-off baffle at the system to avoid water
short-circuit, Please see the following schemes:
Error
Recommendation
Fig.4-4
Error
Recommendation
Error
Recommendation
Fig.4-4
Error
Recommendation
