MCAC-RTT6S-201701 Midea R410A Tropical ClimaCreator Series Rooftop Package 220V 3Ph 60Hz
92

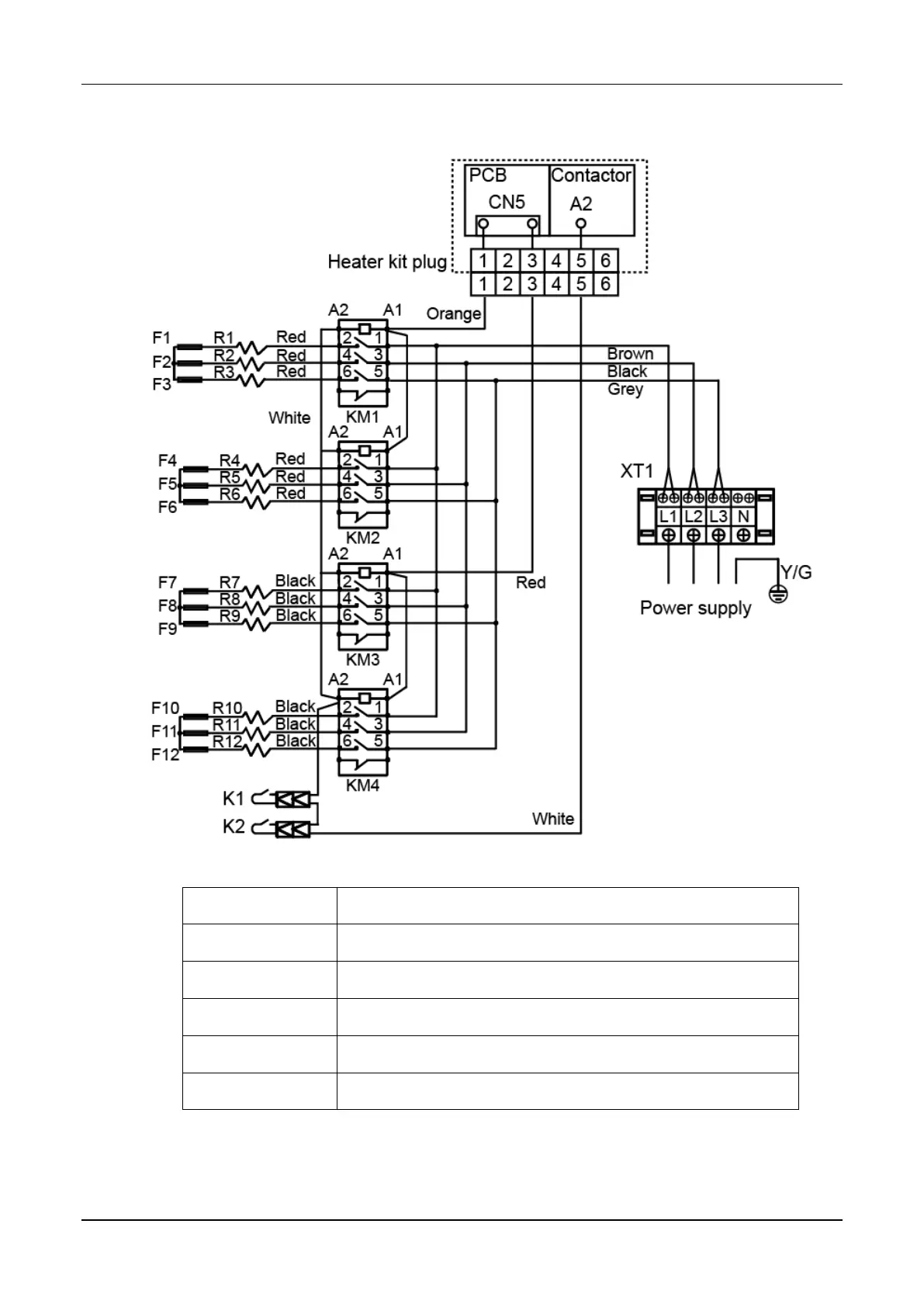

Electric diagram – 30kW/40kW EHK:
Code
Title
F1~F12
Thermal cut-off
R1~R12
Electrically heated pipe
KM1~KM4
Contactor
K1~K2
Temperature protection switch
XT1
4-way terminal
