Midea MRCT-250CWN1-D(C) User Manual

MCAC-RTT6S-201701 Midea R410A Tropical ClimaCreator Series Rooftop Package 220V 3Ph 60Hz
102

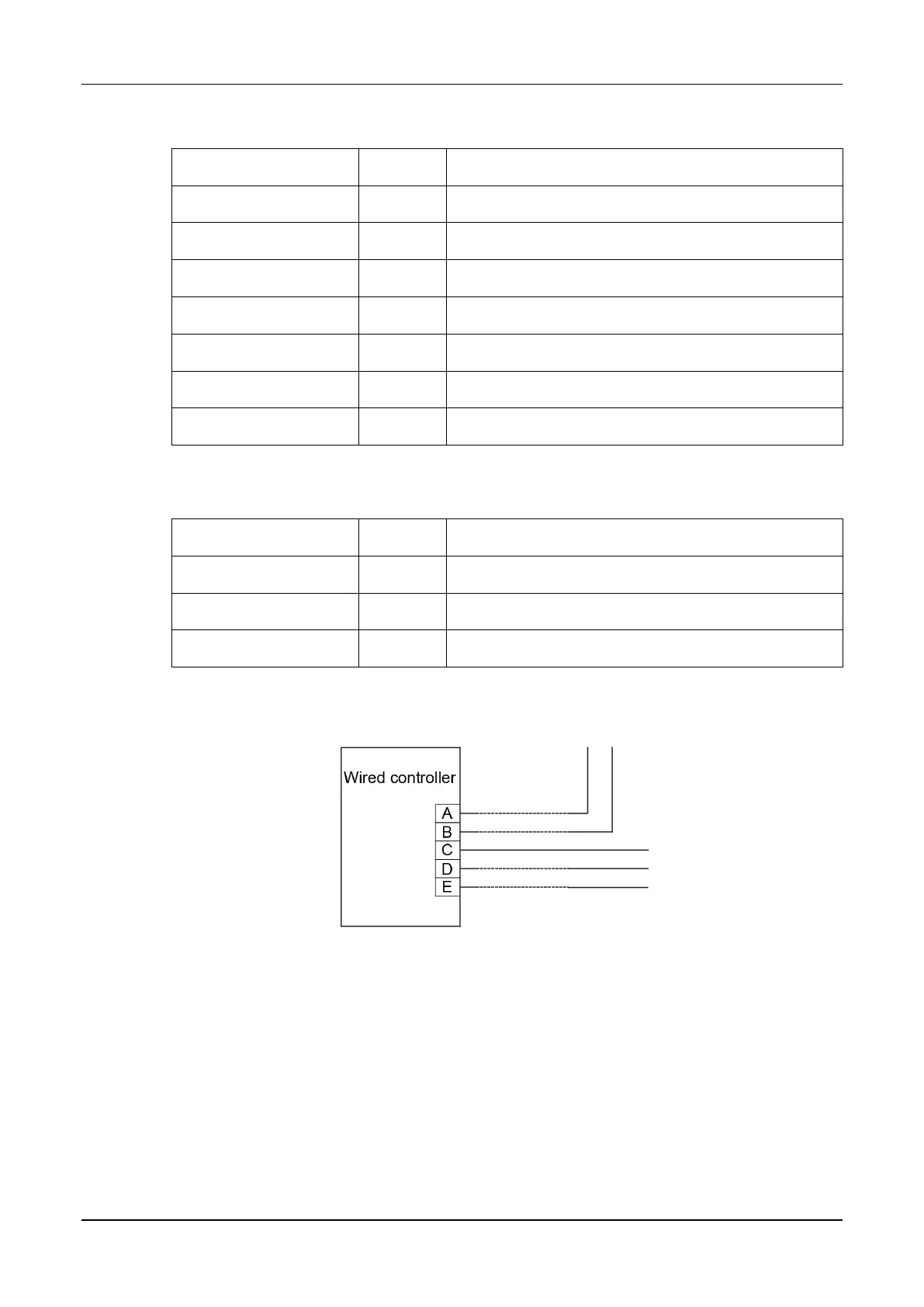

Accessories
Item
Quantity
Remarks
Wired controller
1
\
Wood mounting screw
3
M4×20 (For mounting on the wall)
Mounting screw
3
M4×25 (For mounting on the electrical switch box)
Installation manual
1
\
Owner’s manual
1
\
5P terminal group
\
\
Installation screw
\
For fixing terminal.
Preparing at site
Item
Quantity
Remarks
5-core shield cable
1
RVVP-05mm
2
×5. The longest wire is 30m.
Switch box
1
\
Wiring tube
1
Insulating sleeve and tightening screw.
Wiring principle
When it is necessary to use the wired controller, please follow the label of A/B/C/D/E to
connect the wired controller. And the other side of the signal wire should be connected with
main PCB board well. A is anode, and B is cathode. C is +5V. D is GND and E is RUN.
Installation:
Confirm the installed location of wired controller, before install the wired controller. If install it
on the wall without electric switch box, the hole for 5P-terminal of wired controller is
necessary.
