Midea R410A Tropical ClimaCreator Series Rooftop Package 220V 3Ph 60Hz MCAC-RTT6S-201701
71

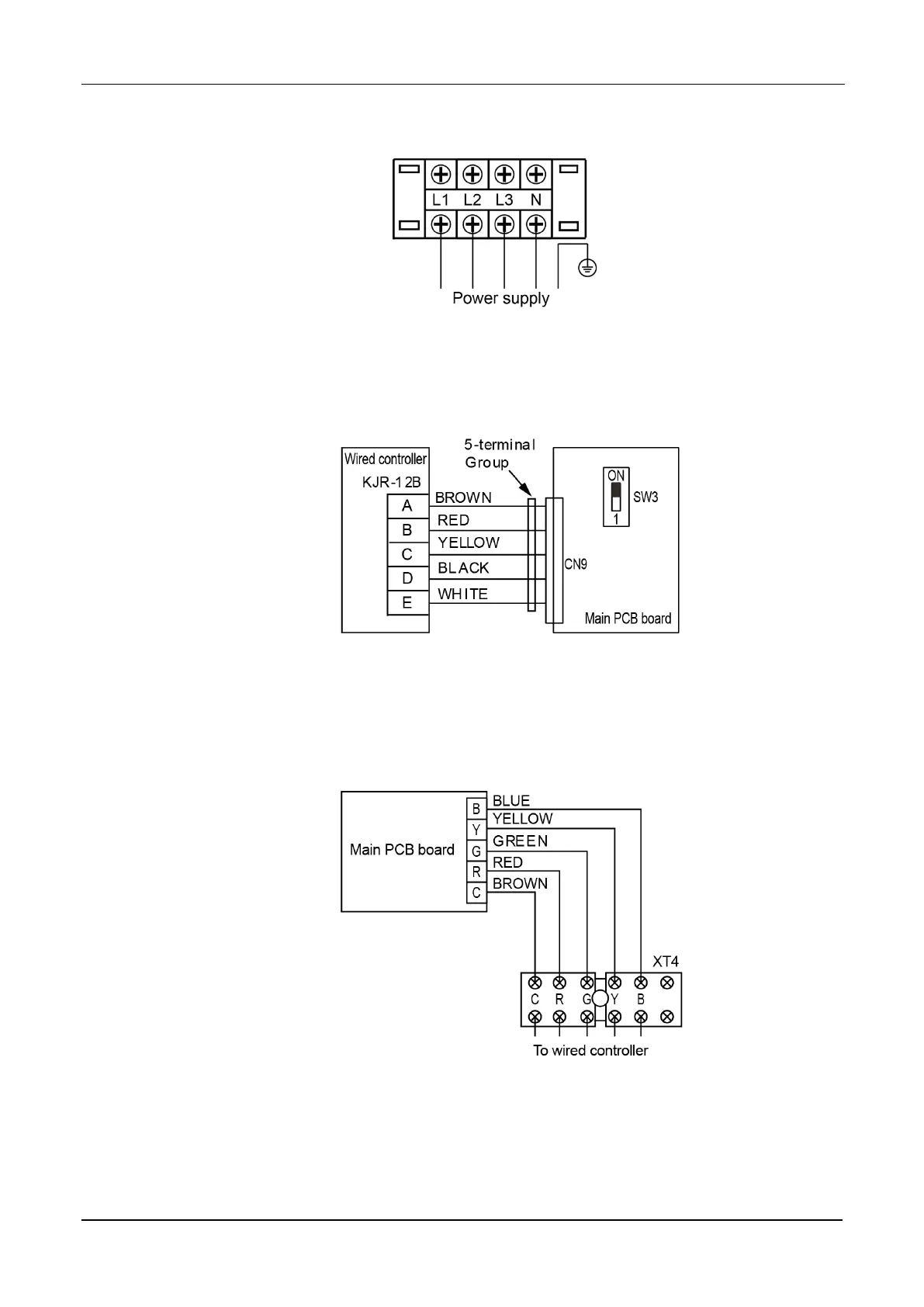

Power supply wiring diagram
Wired controller wiring diagram (Standard wired controller)
MRCT-100CWN1-D(C), MRCT-150CWN1-D(C),
MRCT-200CWN1-D(C), MRCT-250CWN1-D(C):
The standard wired controller model of these units is KJR-12B/dp(T)-E. When KJR-12B is
connected, the switch SW3 should be set to ON.
MRCT-075CWN1-D(C):
The standard wired controller model of these units is KJR-25B.
