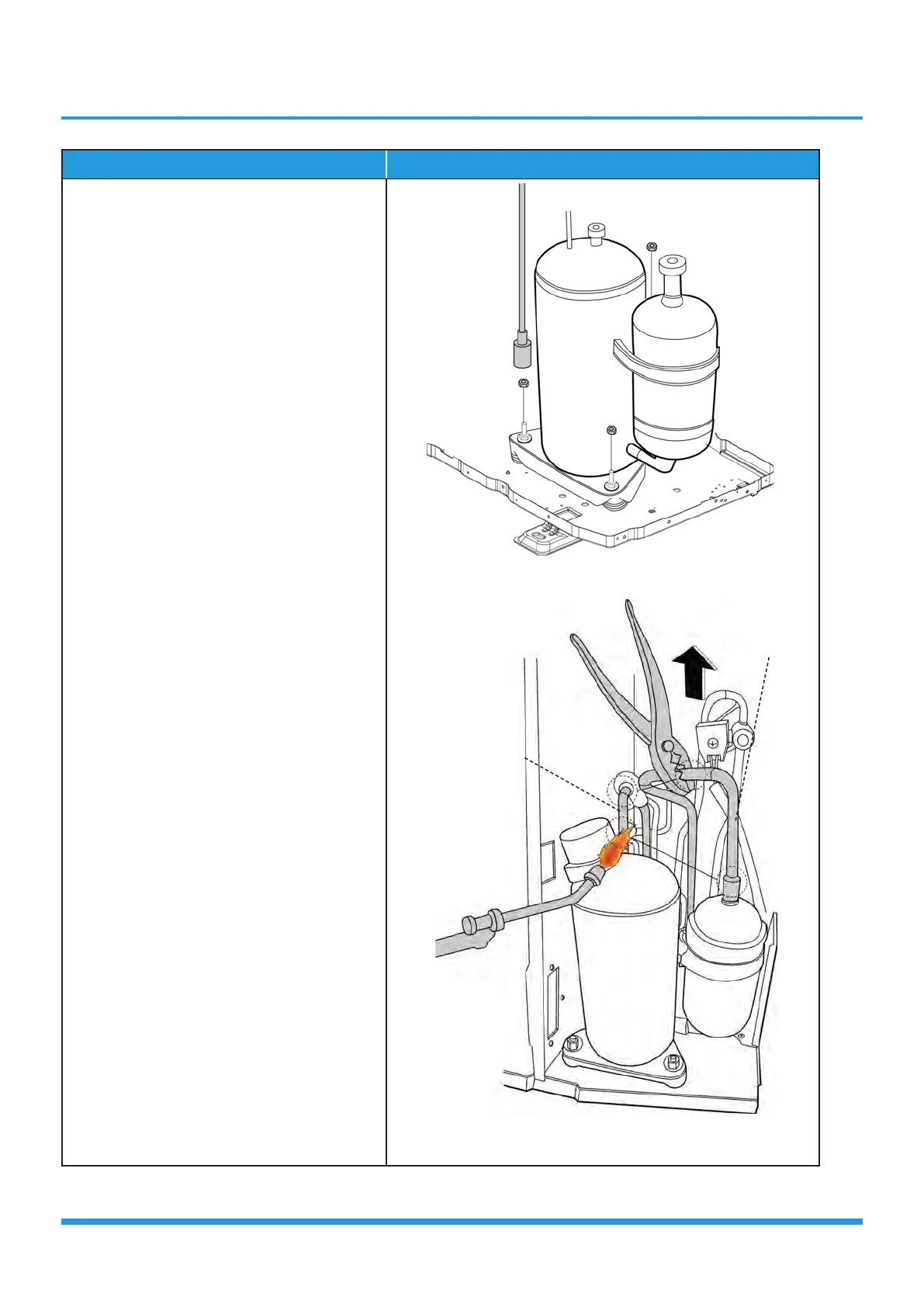

Outdoor Unit Disassembly 50
Procedure Illustration
3) Remove the hex nuts and washers securing
the compressor, located on the bottom
plate (see CJ_ODU_COMP_003).
4) Heat up the brazed parts and then remove
the the discharge pipe and the suction
pipe (see CJ_ODU_COMP_004).
5) Lift the compressor from the base pan
assembly with pliers.
CJ_ODU_COMP_003
CJ_ODU_COMP_004
Note: This section is for reference only. Actual unit appearance may vary.
Discharge Pipe
Suction Pipe
To Next Page
