 Outdoor Unit Disassembly 25 
Procedure Illustration

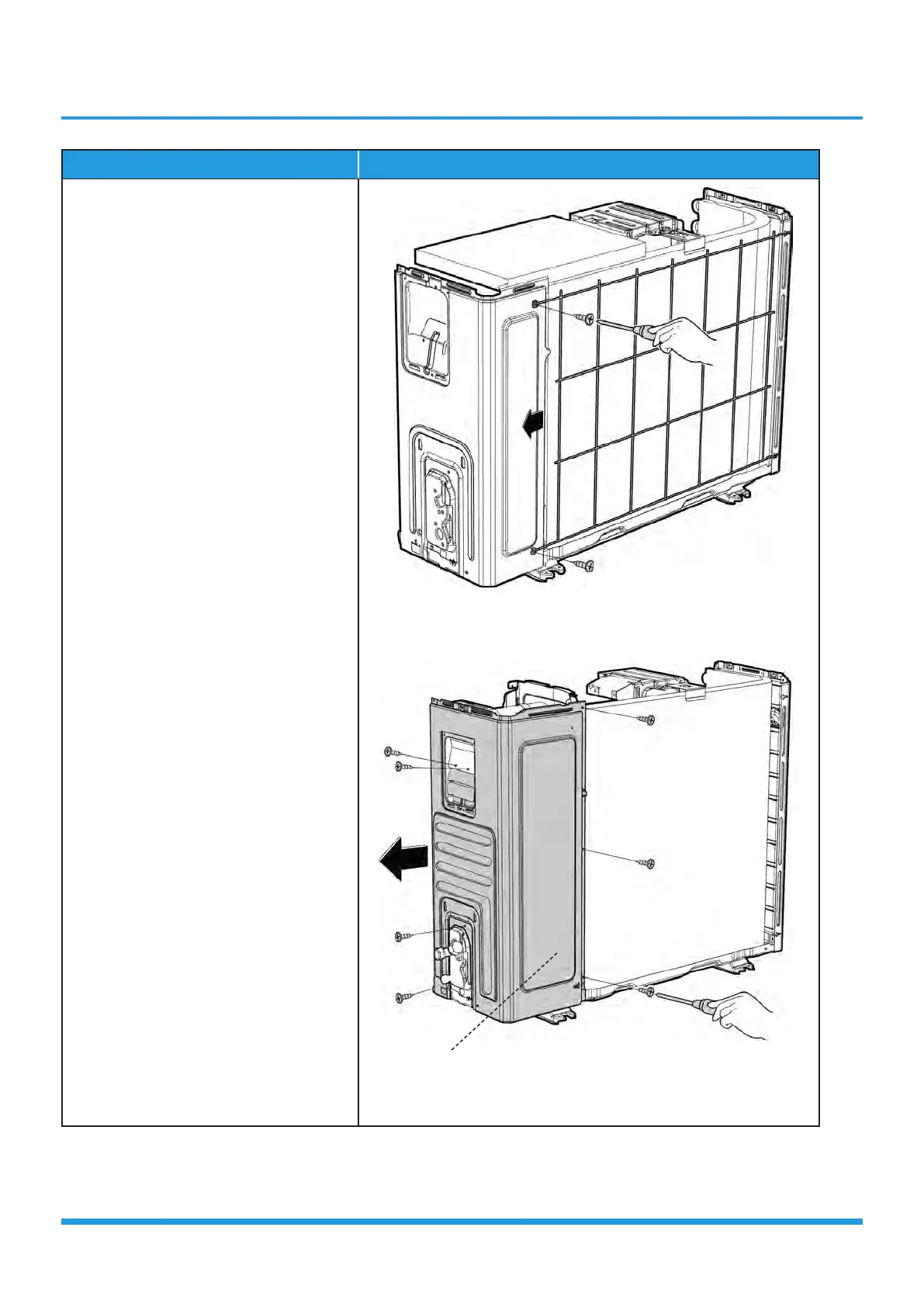

6) Remove the screws of the rear net
and then remove the rear net (2
screws) (see CJ_CA01_005). (for some
models)
7) Remove the screws of the right panel
and then remove the right panel
(7 screws) (see CJ_CA01_006).
CJ_CA01_005
CJ_CA01_006
Note: This section is for reference only. Actual unit appearance may vary.
Right Panel
