 Outdoor Unit Disassembly 27 
Procedure Illustration

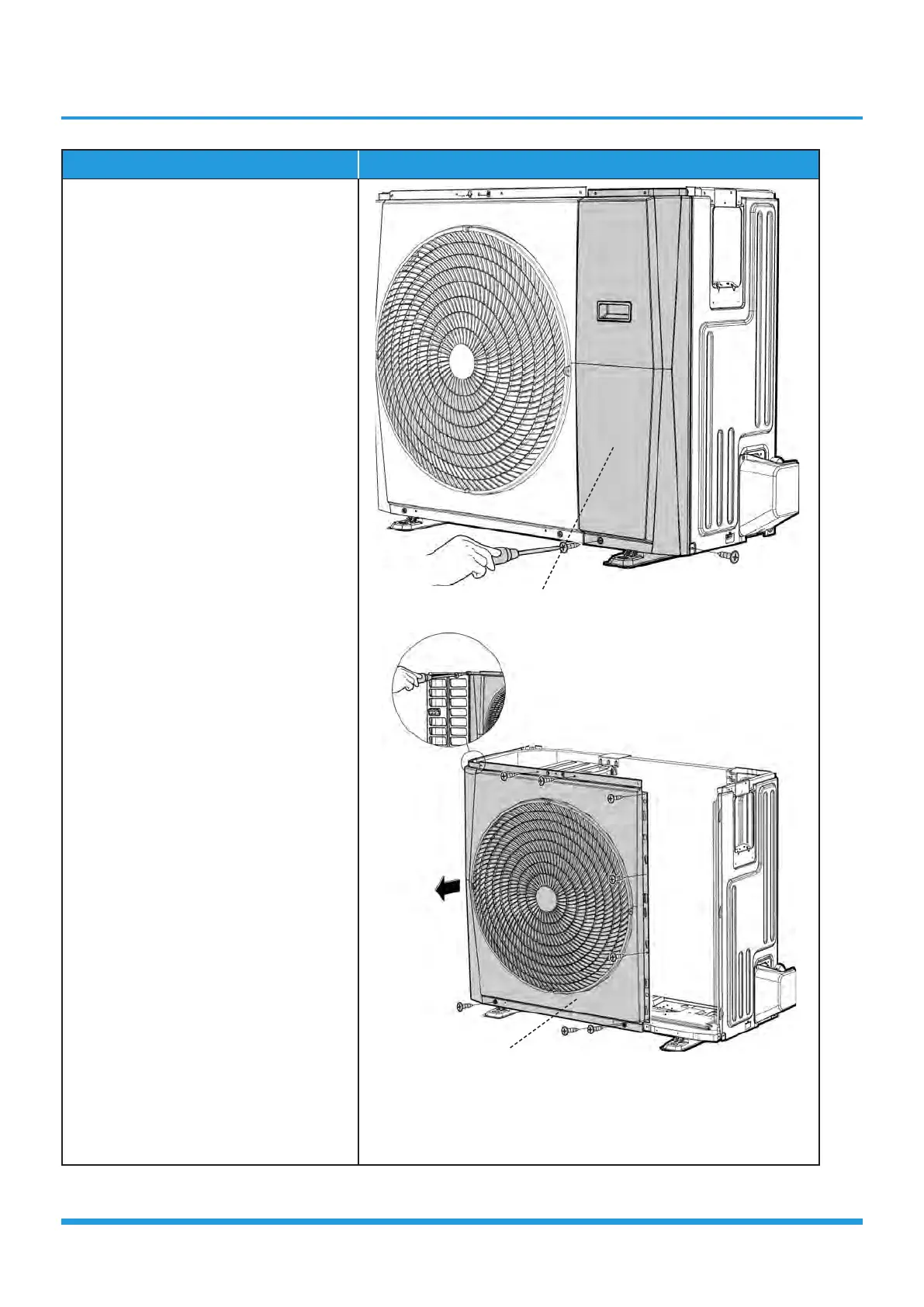

4) Remove the screws of the front right
panel and then remove the front right
panel (2 screws) (see CJ_D01_003).
5) Remove the screws of the front panel
and then remove the front panel (9
screws) (see CJ_D01_004).
CJ_D01_003
CJ_D01_004
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Front Right Panel

Midea MSMABU-09HRDN8-QRD0GW Specifications

General

Refrigerant	R32
Inverter Technology	Yes
Power Supply	220-240V/50Hz/1Ph
Energy Efficiency Ratio (EER)	3.21
Coefficient of Performance (COP)	3.61
Cooling Capacity	9000 BTU
