Place like kitchen where oil permeates.
Place where strong electromagnetic waves exist.
Place where flammable gases or materials exist.
Place where acid or alkali gases evaporate, or other special environments.
Install the unit in a dry and well ventilated place.
Install the unit where the bearing surface is level and can bear weight of the unit, and is suitable
for installing the unit horizontally without increasing noise or vibration.
Install the unit where the operation noise and the expelling of air do not affect neighbors.
Install the unit where no flammable gas is leaked.6Install the unit where it is convenient for pipe
connection and electric connection.
2. Installation of Duct Type Indoor Units
2.1 Installating indoor units

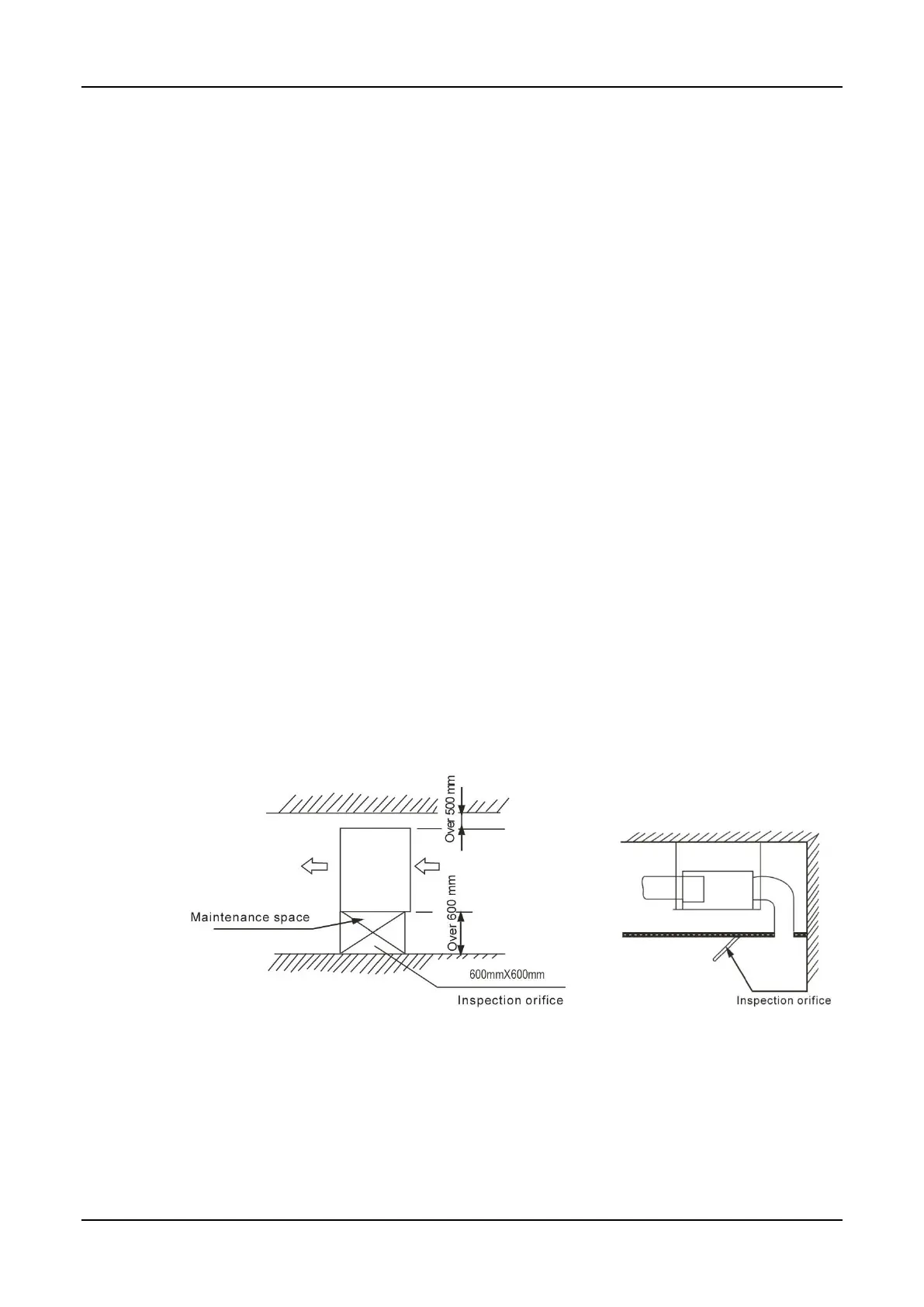

As the following picture, when install the indoor unit, select the enough solid and level site
with enough space for installation and maintance.
The inspection orifice should be enough larger to maintenance and repair the unit.
Ensure that the minimum drain gradient is over 1/100.
Use Ф10 or bigger screws. The screw material is high-quality carbon steel whose surface is
zinc plated or undergoes other anti-rust treatment, or stainless steel.
Fix the pendant bolts firmly and reliably in light of the specifice situsation.
The pendant bolt hole figure is as following picture.
