Midea VC Pro Series Engineering Data Book
2 Dimensions
2.1 Single Units
8/10/12/14/16HP

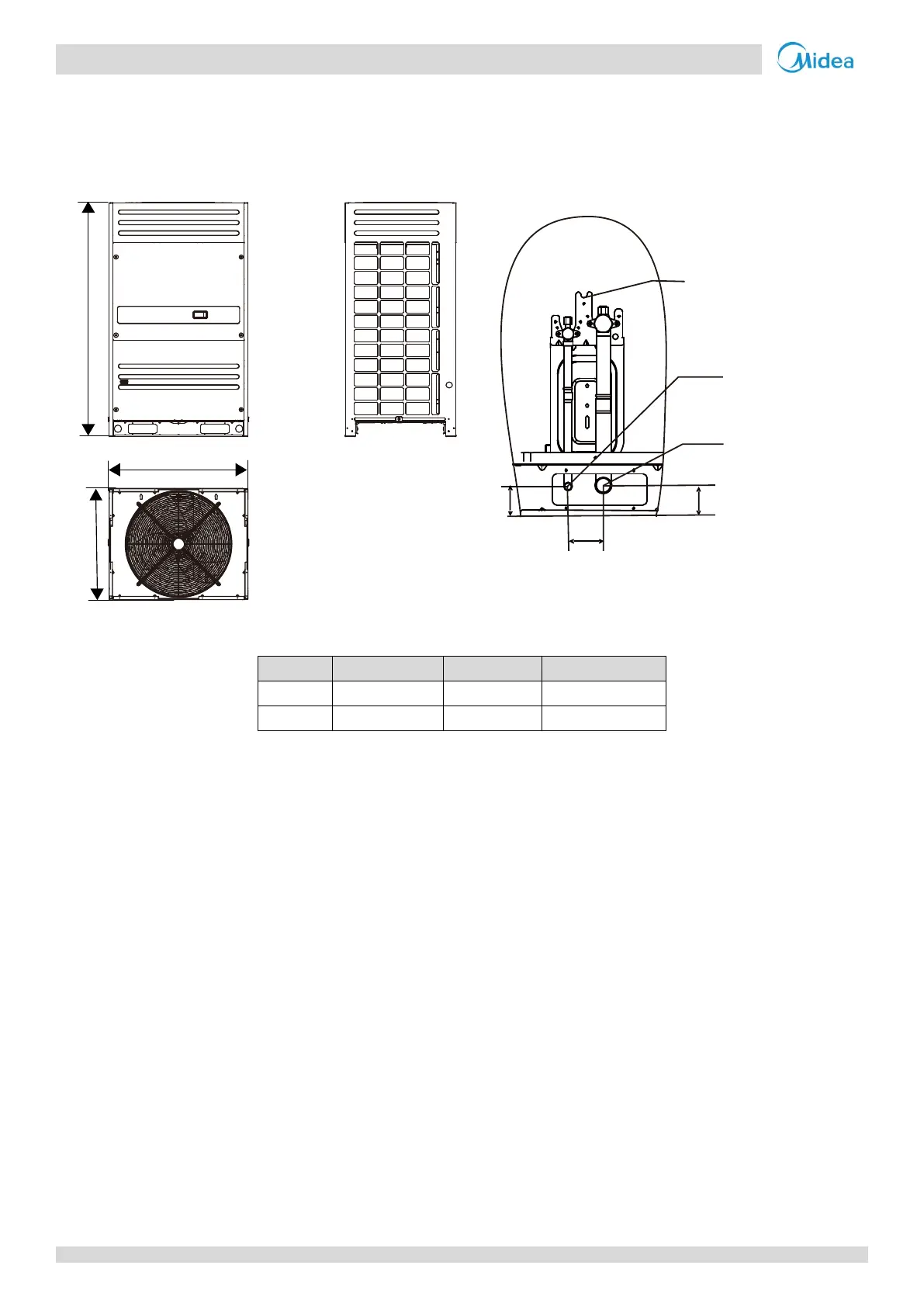

Figure 2-2.1: 8/10/12/14/16HP dimensions (unit: mm)
Table 2-2.1: 8/10/12/14/16HP connection piping diameter (unit: mm)
Size
8-10HP
12HP
14-16HP
A
Φ12.7
Φ15.9
Φ15.9
B
Φ25.4
Φ28.6
Φ31.8
1615
960
765
Check port (used to measure
system pressure, charge
refrigerant and vacuumize)
63
74
64
Liquid pipe
connection
port (ΦA)
Gas pipe
connection
port (ΦB)
