Midea VC Pro Series User Manual

VC Pro VRF 50/60Hz
41
Part 2 - Outdoor Unit Engineering Data
4 Piping Diagrams
8-16HP

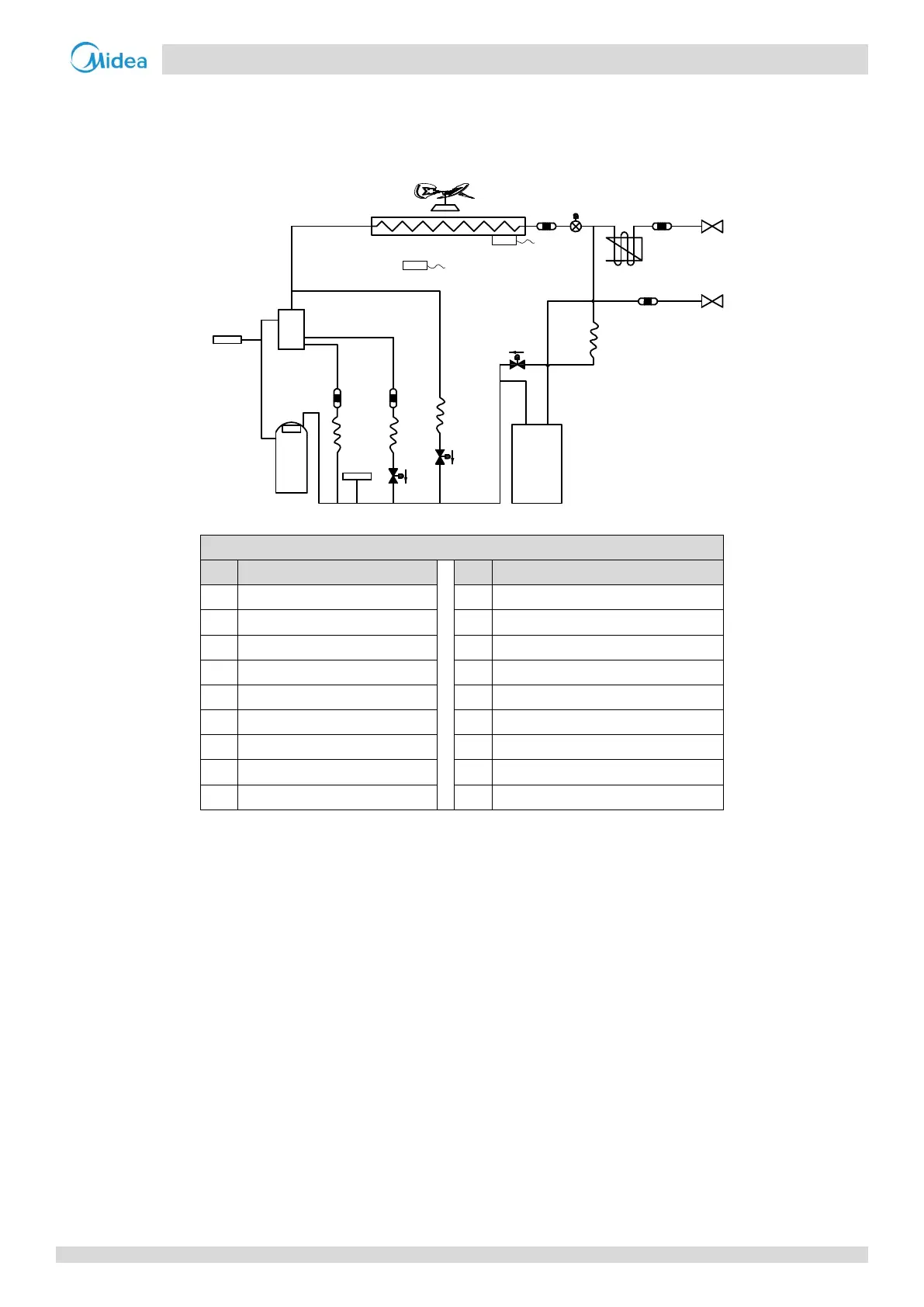

Figure 2-4.1: 8-16HP piping diagram
Legend
No.
Parts name
No.
Parts name
1
Compressor
10
Stop valve (gas side)
2
Discharge temperature sensor
11
Accumulator
3
High pressure sensor
12
Low pressure switch
4
Oil separator
13
Solenoid valve
5
Heat exchanger
T3
Heat exchanger temperature sensor
6
Electronic expansion valve (EXV)
T4
Outdoor ambient temperature sensor
7
Fan motor
SV2
Liquid injection valve
8
Fan
SV4
Oil return valve
9
Stop valve (liquid side)
SV7
Pressure valve
5
3
4
6
9
10
11
12
2
1
13
13
13
8
7
EXVA
XX°C
T3
T4
XX°C
SV4
SV7
SV2
