Miele DA 3160 User Manual

Positioning the appliance in
the wall housing unit
To position the appliance correctly,
cut the spacer strip to required depth
T, and then attach it to the back of
the appliance.
T= Depth of carcase K minus depth of
appliance G
^
The depth of appliance G depends
on the lightshield being used:
–
a Lightshield to match existing
kitchen furniture
– b DFB lightshield (optional
accesssory)
– c No lightshield.
This is based on a lightshield which
aligns with the front edge of the
carcase.
If the lightshield is further forward or
back, measurement T will need to be
adjusted accordingly.
^
Cut the spacer strip supplied to
measurement T.
Score along the groove for the
smaller measurement as shown, and
remove the surplus.
^

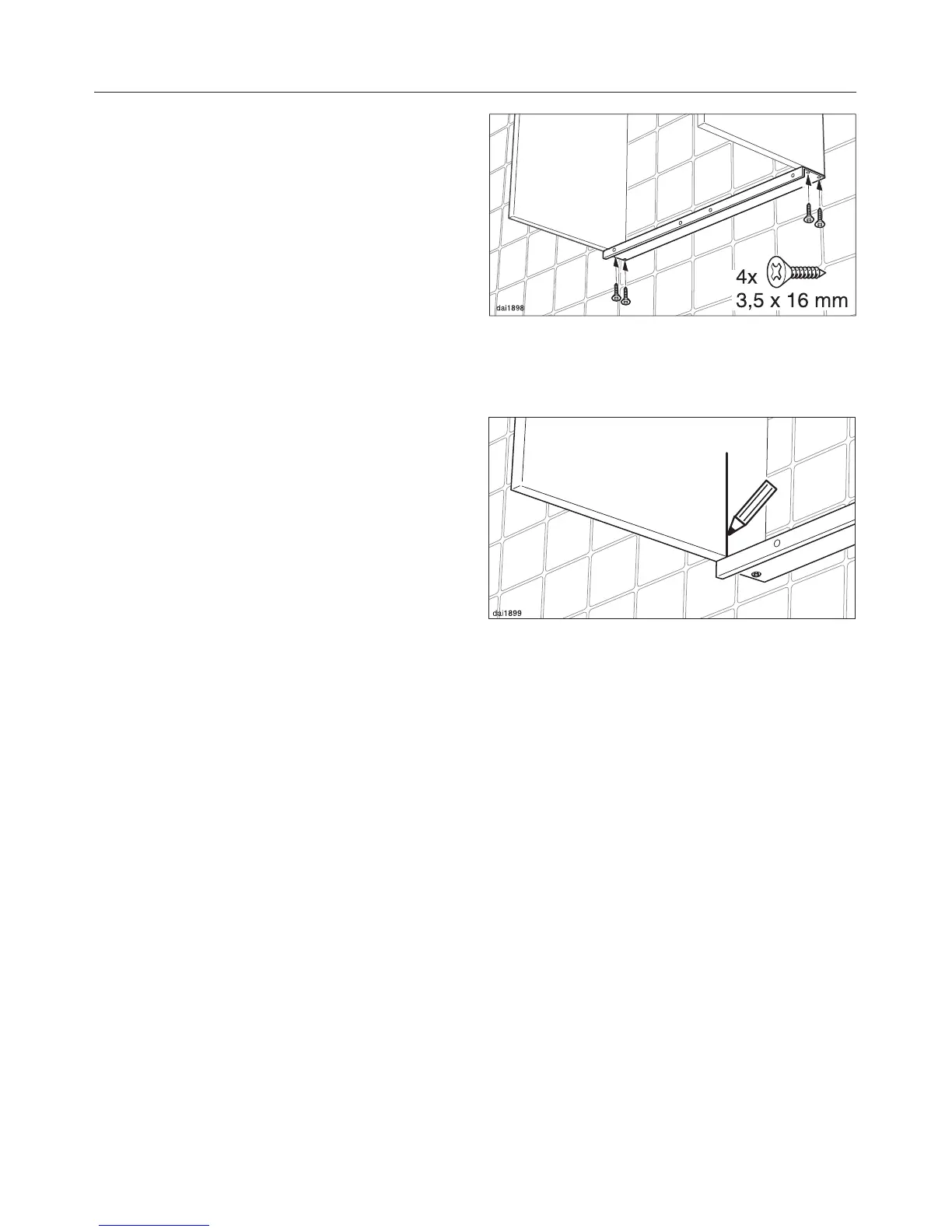

Screw the spacer strip to the bottom
of the sides of the housing, flush with
the rear wall.
^ Draw a vertical line up both inside
walls of the housing from the front of
the spacer strip.
Installation
25

Miele DA 3160 Specifications

General

Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted
Maximum extraction power	550 m³/h
Housing material	Stainless steel
Bulb type	Halogen
Bulb power	50 W
Number of bulbs	2 bulb(s)
Power requirements	230/50

Weight and Dimensions

Depth	275 mm
Width	595 mm
Height	409 mm
