Miele H396BP User Manual

Technical Information
39
Master Chef Ovens
5.14 Upper (or Single Oven) Cooling Fan - Removal
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Upper Back Panel (Section 5.9)
4. Refer to Figure 5-7. Unplug the electrical connections to the Cooling
Fan (Item 1).
5. Remove the Vent Strip Fastening Screws (Items 2 & 3).
6. Remove Vent Strip(s) – as necessary.
7. Remove the Cooling Fan Fastening Screws.
8. Remove the Cooling Fan.

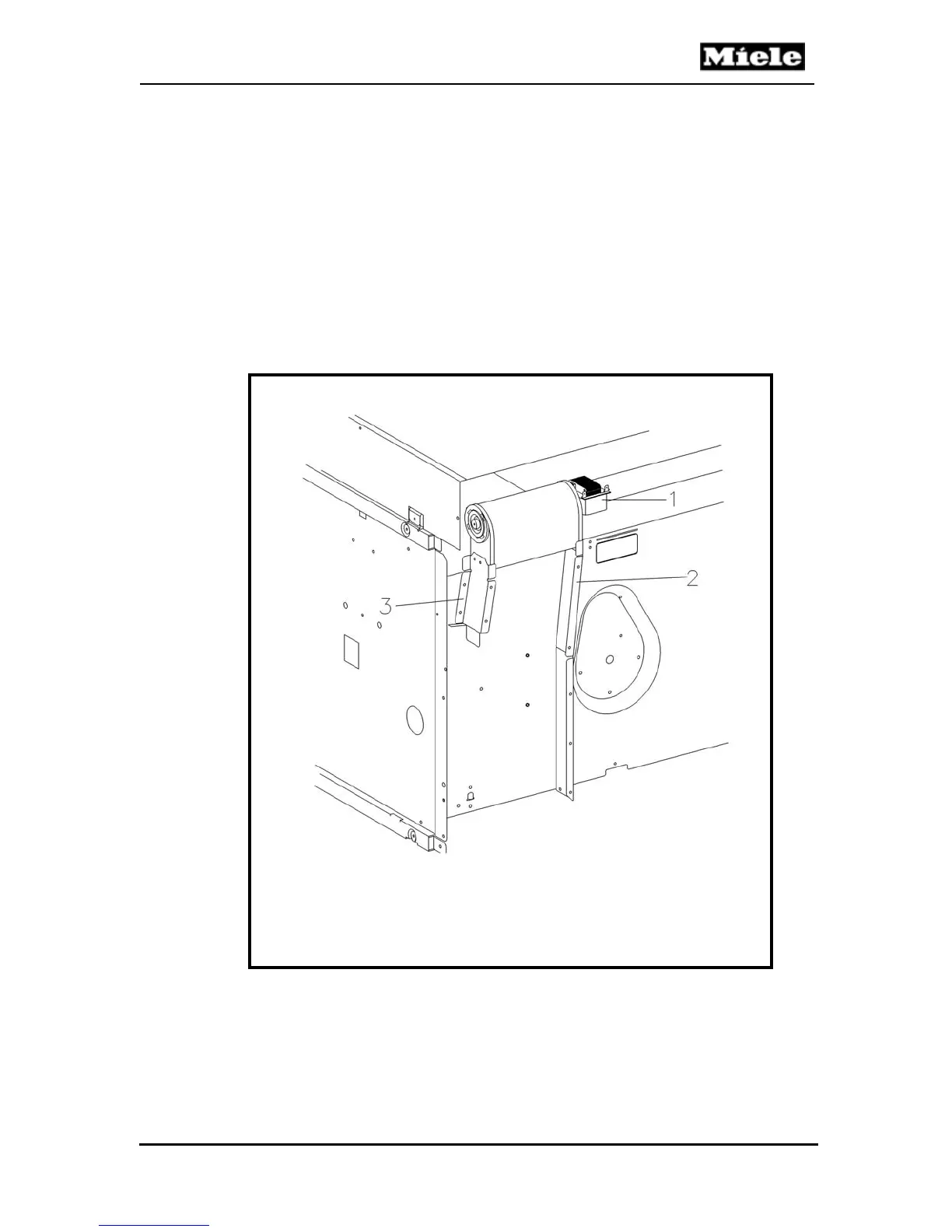

1. Upper Cooling Fan
2. Vent Strip
3. Vent Strip
Figure 5-7: Upper (or Single Oven) Cooling Fan - Removal

Miele H396BP Specifications

General

Type	Built-in oven
Oven capacity	76 L
Energy efficiency class	A+
Control type	Electronic
Number of cooking functions	10
Self-cleaning	Yes
Dimensions (H x W x D)	596 x 595 x 569 mm
Width	595 mm
Number of cooking programs	15
Capacity	76 L
Color	Stainless steel
Door cooling	Yes
Child lock	Yes
Timer	Yes
Cleaning	Pyrolytic
